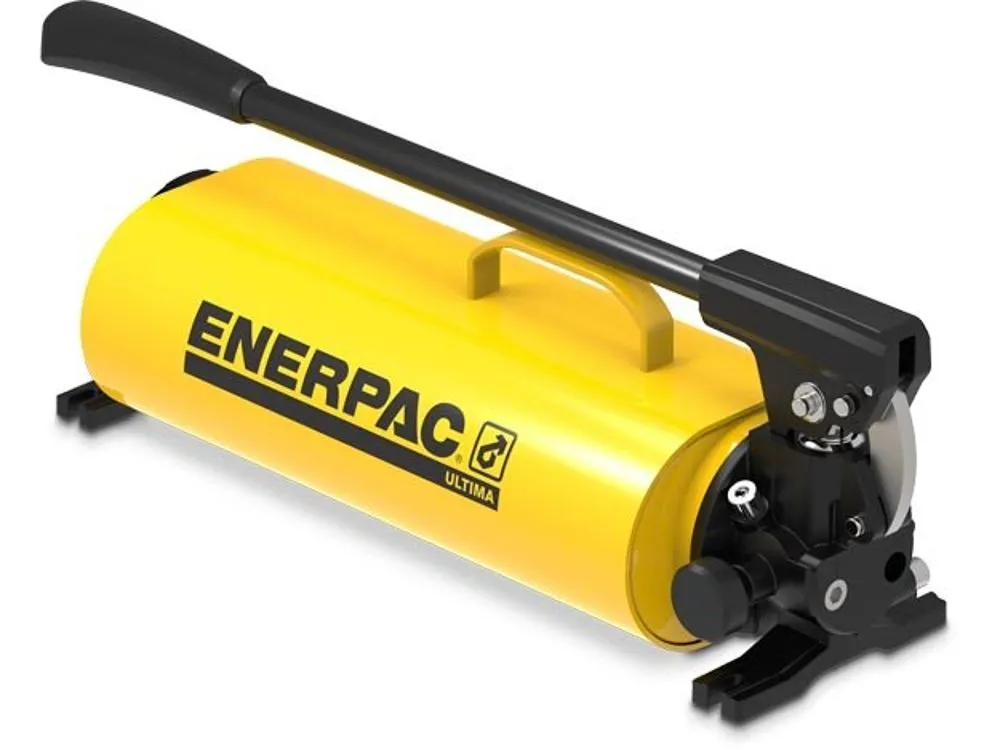

ENERPAC P801 ULTIMA Steel Hydraulic Hand Pump, 2 Speed, Fibreglass Handle

Enerpac P801 hydraulic hand pump is used in various maintenance & repair tasks and industrial applications that require portable hydraulic power. This hydraulic hand pump is operated manually using hands where electricity or fuel is not available for power sourcing.

Features:

• This hand pump features a quick grip handle for easy transportation and a bypass system for enhanced pump efficiency.
• It has a two-speed setting with a 1-inch-long piston stroke to power hydraulic cylinders.
• This hand pump is integrated with a chrome-plated plunger & wiper for wear resistance and a wider base for stability.
• It features steel construction with a vent-free reservoir to eliminate spills, an internal pressure relief valve for overload protection and a non-conductive ergonomic handle for safety.
• This hand pump provides displacement per stroke of 0.99 cubic inches & 0.15 cubic inches in the 1st and 2nd stages, respectively.

Compatible Accessories:

• Enerpac LX101 Hydraulic Oil: This hydraulic oil is used in hydraulic hand pumps for reduced handle effort. It features a zinc lubricant additive which acts as a barrier against moisture to prevent rust formation. This oil comes under the viscosity index of 105 PI.

Frequently Asked Questions:

Q. What is a two stage hand pump?

A. Two stage pumps, such as Enerpac P802 hand pump, are capable of switching two speed configurations depending upon the application requirement. Two stage hand pumps deliver higher flow rates until the cylinder starts working.

Q. How does a hydraulic manual pump work?

A. These hand pumps convert mechanical energy into hydraulic energy using hydraulic fluid under pressure. The pressure is generated by moving the pumps handle.

Q. What is a two stage hand pump?

A. Two stage pumps, such as Enerpac P802 hand pump, are capable of switching two speed configurations depending upon the application requirement. Two stage hand pumps deliver higher flow rates until the cylinder starts working.

Q. How to maintain this hydraulic hand pump?

A. Regular checks of fluid levels, seals and connections should be performed to ensure that the pump is functioning properly.

Q. How does a hydraulic manual pump work?

A. These hand pumps convert mechanical energy into hydraulic energy using hydraulic fluid under pressure. The pressure is generated by moving the pumps handle.

Q. How do I clean and maintain this hydraulic hand pump?

A.

• Perform routine visual inspections to check for any signs of damage, leaks or loose connections.
• Clean the exterior of the pump using a clean cloth or rag to remove dirt, dust or debris.
• Verify that the hydraulic fluid level is within the recommended range, adding or replacing the fluid as needed.
• Inspect and clean or replace the hydraulic fluid filter to prevent contaminants from circulating through the system.
• Apply appropriate lubricant to moving parts, such as the handle, to ensure smooth operation and prevent corrosion.
• Store the pump in a clean, dry and secure area to protect it from environmental elements when not in use.

Q. What factors should be considered while choosing a hydraulic pump?

A.

• Consider the required flow rate, pressure range and power capabilities.
• Evaluate factors like fluid type, temperature and environmental conditions.
• Select the appropriate pump type, such as gear, vane or piston.
• Assess the pump's efficiency to minimise energy consumption.
• Choose a pump from a reputable manufacturer known for reliability and durability.

Q. What is the maximum operating pressure and oil capacity of this Enerpac P801 Ultima hydraulic hand pump?

A. Enerpac P801 Ultima hydraulic hand pump can be operated at pressures up to 10000 psi and usable oil capacities up to 250 cubic inches.
