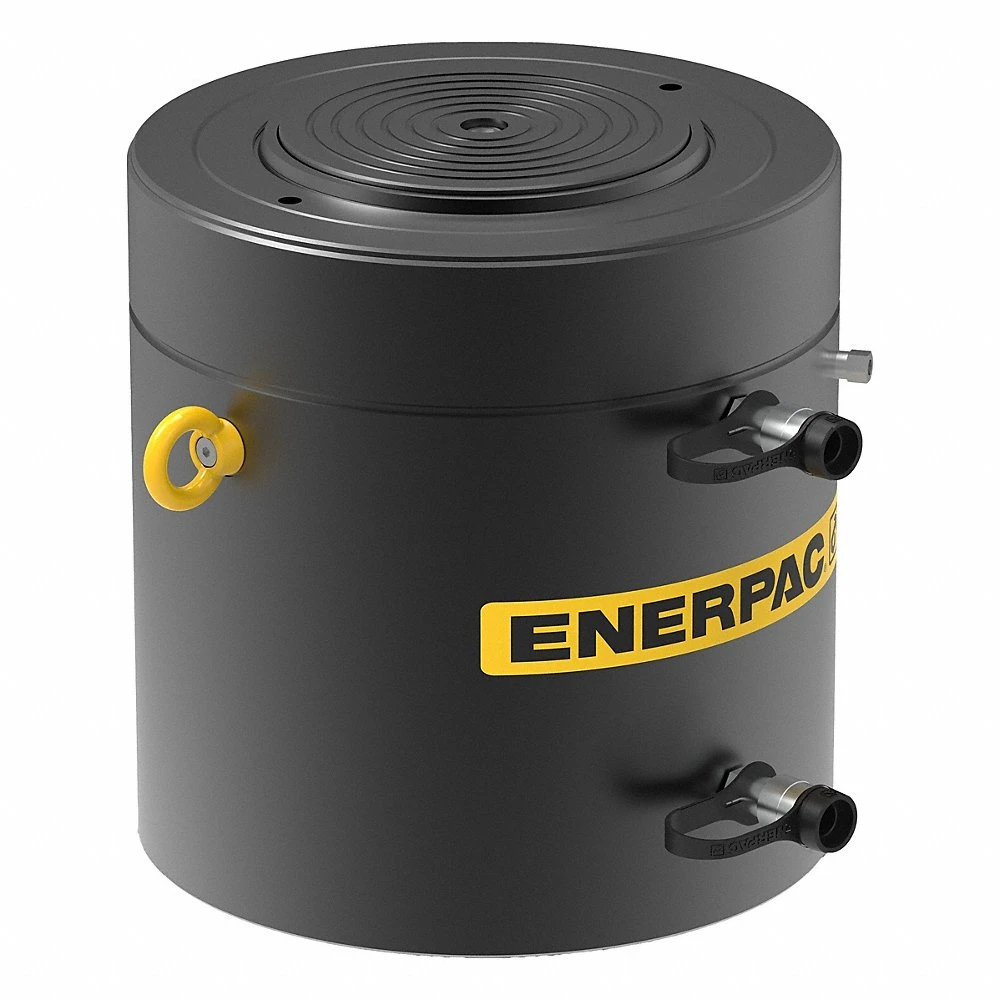

ENERPAC HCR6006 Cylinder, Double Acting, 600 ton Nominal Capacity, 5 15/16 Inch Nominal Stroke Lg, Steel
Get it by Monday, Aug 24
13.00% off
€30,315.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Base Mounting Holes Thread V | M24 x 3 |
| Base To Advance Port H | 3.35" |
| Capacity Class | 600 ton. |
| Collapsed Height A | 17 4/5" |
| Coupler | CR400 Coupler |
| Cylinder Bore Dia. E | 12.99" |
| Cylinder Effective Area Advance | 132.57 sq. in. |
| Cylinder Effective Area Advance (cm2) | 8553 sq. cm |
| Cylinder Effective Area Advance In | 132.57" |
| Extended Height B | 23.7" |
| Fob | N |
| Material | Steel |
| Max. Cylinder Capacity Advance | 5987 kN |
| Max. Operating Pressure | 10150 psi , 700 Bar |
| Oil Capacity Advance | 782.9" |
| Oil Capacity Retract | 258.81" |
| Optional Tilt Saddle Addition To Collapsed Height A1 | 2.09" |
| Optional Tilt Saddle Dia. J1 | 9 18/25" |
| Outside Dia. D | 16.93" |
| Plunger Dia. F | 10.63" |
| Plunger Type | Solid |
| Return Type | Double Acting, Hydraulic Return |
| Saddle Dia. J1 | 7 16/25" |
| Saddle Max. Tilt Angle Radius (degrees) | 5° |
| Saddle Protrusion From Plunger K | 4/25" |
| Stroke | 5.91" |
| Surface Treatment | Nitride |
| Tariff Code | 8412218090 |
| Ton | 673 ton. |
| Top To Retract Port | 4 19/25" |
Shipping Info:
| Ship weight (kg) | 469.88 |
| Ship height (cm) | 55.88 |
| Ship length (cm) | 40.64 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
