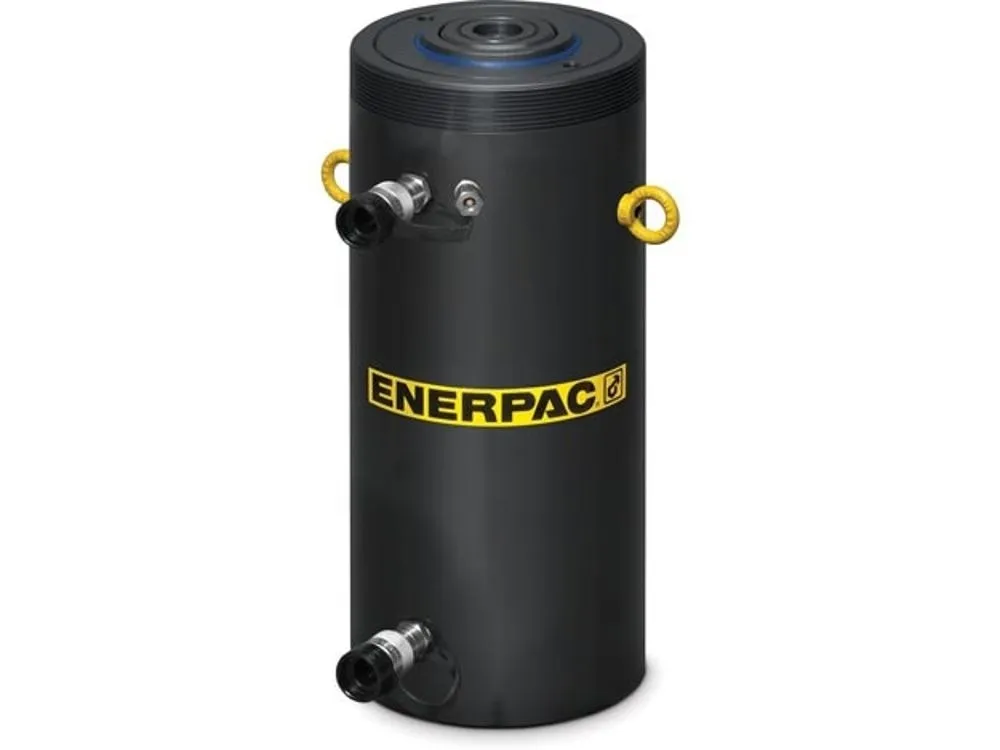

ENERPAC HCR5010 Cylinder, Dual Acting, 50 Ton
Get it by Friday, Aug 21
13.00% off
€3,731.95 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cylinder |
| Application | Lift, Lower, Push |
| Base Mounting Thread Size | M12 |
| Body Material | Steel |
| Bore Dia. | 3.94" |
| Capacity Class (tonnage) | Class 50 |
| Collapsed Height A | 15.59" , 396 mm |
| Cylinder Effective Area Advance | 12.17 sq. in. , 78.5 sq. cm |
| Cylinder Type | High Cycle |
| Effective Push Area | 12.17 sq. in. |
| Extended Height | 25.4" |
| Extended Height B | 25.43" |
| Included | (2) Lifting Eyes, Interchangeable Saddle, Overpressurization Valve |
| Material | Steel |
| Max. Cylinder Capacity Advance | 550 kN |
| Max. Cylinder Capacity Advance (short Tons) | 62 ton. |
| Max. Operating Pressure | 10150 psi |
| Max. Pressure | 10150 psi |
| Nominal Capacity | 50 ton. |
| Nominal Stroke Length | 10" |
| Oil Capacity Advance | 119.82 cu. in. |
| Oil Capacity Advance (cm3) | 1963 cu. cm |
| Oil Capacity Push | 119.82 cu. in. |
| Oil Capacity Retract | 61.11 cu. in. |
| Oil Capacity Retract (cm3) | 1001 cu. cm |
| Outside Dia. | 5.15" |
| Plunger Dia. | 2 19/25" |
| Plunger Type | Solid |
| Product Datasheet | enerpac-hcr10010.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Retracted Height | 15.59" |
| Return Type | Double-Acting, Hydraulic Return |
| Sideload Resistance Of Max. Capacity | 10% |
| Single Acting/double Acting | Double Acting |
| Stroke | 250 mm , 9 21/25" , 9.84" |
| Stroke Length | 9 7/8" |
| Surface Treatment | Nitride |
Shipping Info:
| Ship weight (kg) | 34.16 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 66.04 |
| Ship width (cm) | 60.96 |
| Country of Origin | CN |
Documentation:
Product Variants
| Model | Stroke Length | Nominal Stroke Length | Sideload Resistance Of Max. Capacity | Cylinder Type | Max. Cylinder Capacity Advance | Collapsed Height A | Extended Height B | Oil Capacity Advance (cm3) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

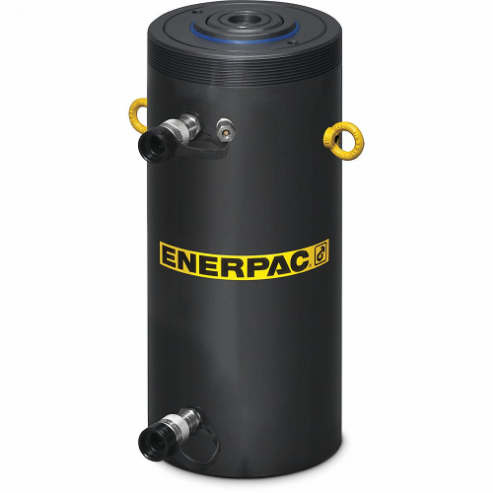

| HCR15012 | 11 7/8" | 12" | 10% | General Purpose | - | - | - | - | €10,971.14 | |
| HCR10010 | 9 7/8" | 10" | 10% | High Cycle | 1002 kN | 16.89" | 26.73" | 3578 cu. cm | €7,171.44 | |
| HCR10012 | 11 3/4" | 12" | 10% | High Cycle | 1002 kN | 18.86" | 30.67" | 4294 cu. cm | €7,560.77 | |
| HCR1002 | 2" | 2" | 10% | High Cycle | 1002 kN | 7.95" | 9.92" | 716 cu. cm | €5,046.89 | |
| HCR1004 | 3 7/8" | 5" | 10% | High Cycle | 1002 kN | 9.92" | 13.86" | 1431 cu. cm | €5,579.06 | |
| HCR1006 | 5 7/8" | 7" | 10% | High Cycle | 1002 kN | 11.89" | 17.8" | 2147 cu. cm | €6,097.57 | |
| HCR1008 | - | 10" | 10% | High Cycle | 1002 kN | 14.92" | 22.8" | 2863 cu. cm | €6,654.31 |
