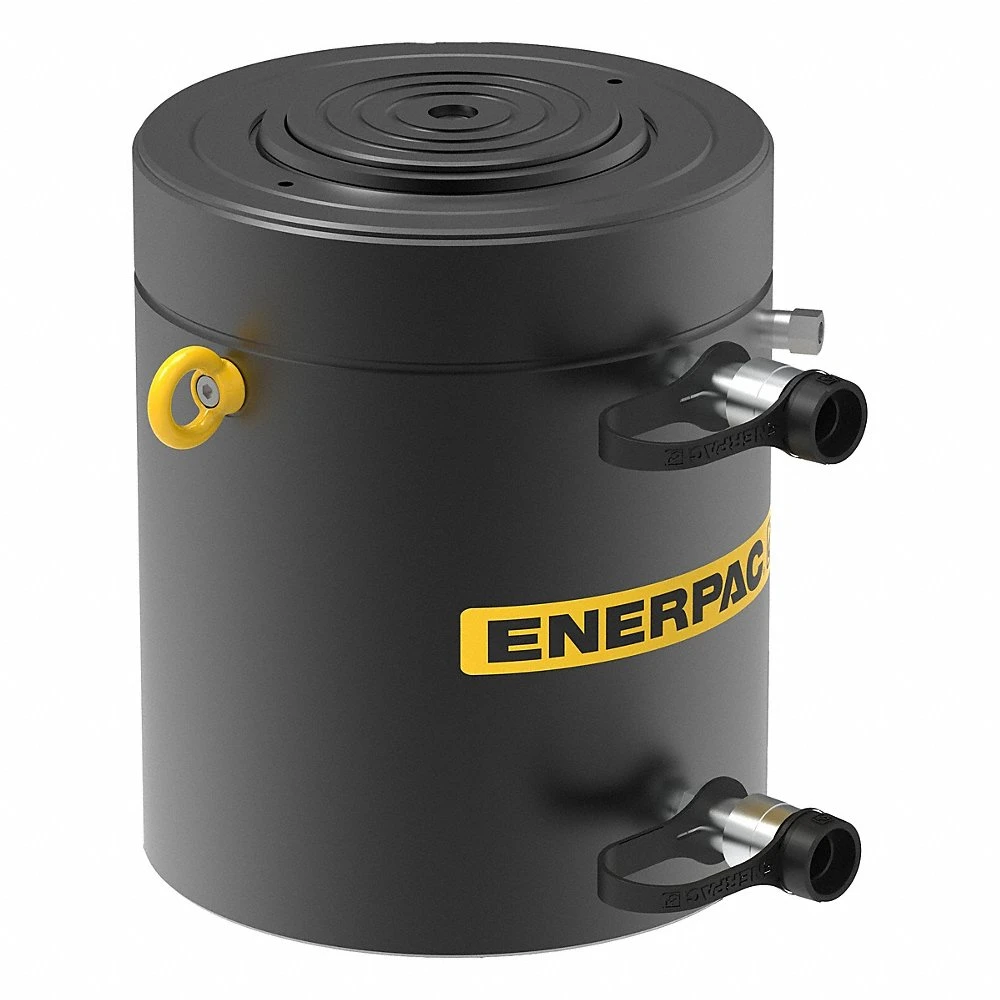

ENERPAC HCR2506 Cylinder, Double Acting, 250 ton Nominal Capacity, 5 15/16 Inch Nominal Stroke Lg, Steel
Get it by Friday, Aug 21
13.00% off
€11,590.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Base To Advance Port H | 2.09" |
| Bore Size | 215 mm |
| Capacity Class | 250 ton. |
| Collapsed Height A | 13.43" |
| Collar Thread Length | 2 13/25" |
| Collar Thread Size W | M280 x 3 |
| Coupler | CR400 Coupler |
| Cylinder Effective Area Advance | 56.27 sq. in. |
| Cylinder Effective Area Advance In | 56.27" |
| Extended Height B | 19.33" |
| Fob | N |
| Max. Cylinder Capacity Advance | 2541 kN |
| Max. Operating Pressure | 10150 psi |
| Max. Working Pressure | 10000 psi |
| Mounting Type | Base Mounting Hole |
| Oil Capacity Advance | 332 8/25" |
| Oil Capacity Retract | 124.55" |
| Optional Tilt Saddle Addition To Collapsed Height A1 | 1.54" |
| Optional Tilt Saddle Dia. J1 | 6.89" |
| Outside Dia. D | 11.02" |
| Plunger Dia. F | 6.69" |
| Plunger Type | Solid |
| Return Type | Double Acting, Hydraulic Return |
| Rod Dia. | 170 mm |
| Saddle Dia. J1 | 5.51" |
| Saddle Max. Tilt Angle Radius (degrees) | 5° |
| Saddle Protrusion From Plunger K | 4/25" |
| Stroke | 5.91" |
| Surface Treatment | Nitride |
| Tariff Code | 8412218090 |
| Top To Retract Port | 3.11" |
Shipping Info:
| Ship weight (kg) | 144.89 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 30.48 |
| Country of Origin | ES |
