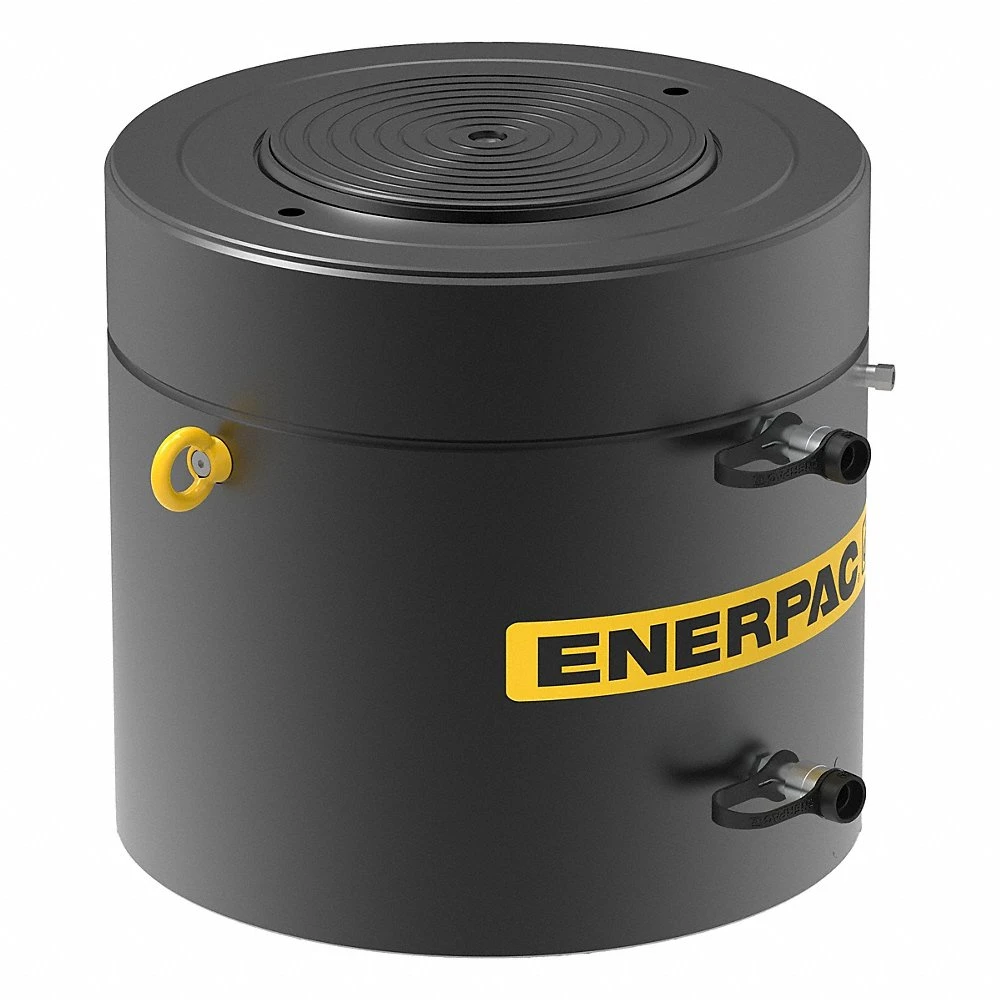

ENERPAC HCR10006 Cylinder, Double Acting, 1000 ton Nominal Capacity, 5 15/16 Inch Nominal Stroke Lg, Steel
Get it by Tuesday, Aug 25
13.00% off
€63,077.60 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Base Mounting Holes Thread V | M24 x 3 |
| Base To Advance Port H | 4.49" |
| Collapsed Height A | 21.34" |
| Coupler | CR400 Coupler |
| Cylinder Bore Dia. E | 17 8/25" |
| Cylinder Effective Area Advance | 235.68 sq. in. |
| Cylinder Effective Area Advance (cm2) | 15205 sq. cm |
| Cylinder Effective Area Advance In | 235 17/25" |
| Extended Height B | 27 6/25" |
| Fob | N |
| Material | Steel |
| Max. Cylinder Capacity Advance | 1196 ton. |
| Max. Operating Pressure | 10150 psi |
| Oil Capacity Advance | 1391.83" |
| Oil Capacity Retract | 560 19/25" |
| Optional Tilt Saddle Addition To Collapsed Height A1 | 3.03" |
| Optional Tilt Saddle Dia. J1 | 11.81" |
| Outside Dia. D | 22 11/25" |
| Plunger Dia. F | 13.39" |
| Plunger Type | Solid |
| Return Type | Double Acting, Hydraulic Return |
| Saddle Dia. J1 | 9 4/5" |
| Saddle Max. Tilt Angle Radius (degrees) | 5° |
| Saddle Protrusion From Plunger K | 4/25" |
| Stroke | 5.91" |
| Surface Treatment | Nitride |
| Tariff Code | 8412218090 |
| Ton | 1000 ton. |
| Top To Retract Port | 6.02" |
Shipping Info:
| Ship weight (kg) | 992.25 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 50.8 |
| Country of Origin | NL |
