ENERPAC GBJ005A Hydraulic Industrial Bottle Jack, 5 Ton, 5.91 Inch Stroke Length
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€380.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Bottle Jack |
| Application | Lift |
| Base Length | 4 29/32" |
| Base Size | 5" x 3" |
| Base Width | 2 15/16" |
| Body Material | Steel |
| Bottom Plate Length | 4 23/25" |
| Collapsed Height | 8.35" |
| Construction | Steel |
| Extended Height | 17 3/16" |
| Extended Height | 17.2" |
| Extension Screw Length | 2 15/16" |
| Features | Automatic By Pass Port To Prevent Over Extension, High Strength Beam And Pump Linkage For Long Life, Lower Handle Effort Reduces Operator Fatigue, Pump Swivels For Ease Of Use, Improved Ergonomics, Safety Relief Valve To Prevent Overload, Thick Base Material With Large Area For Increased Strength And Stability During Lifting |
| Handle Type | Lower Handle |
| Hydraulic Stroke | 5" |
| Includes | Pump Handle |
| Jack Type | Bottle Jack |
| Lifting Actuator | Manual Handle |
| Lifting Capacity | 5 ton. |
| Lifting Height Max. | 17 1/4" |
| Load Capacity | 4535.93 Kg |
| Max. Lift Height | 17 1/4" |
| Min. Height | 8 11/32" |
| Min. Lifting Height | 6" |
| Minimum Lift | 6" |
| Oil Capacity | 5.41 oz. |
| Plunger Dia. | 1.14" |
| Plunger Diameter | 1.14" |
| Power Source | Mechanical |
| Product Datasheet | enerpac-gbj100.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Saddle | Yes |
| Saddle Diameter | 1 3/25" |
| Stroke | 5 29/32" |
| Type | Hydraulic |
| Weight | 9.9 lbs. |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 30.48 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 35.56 |
| Country of Origin | ES |
Documentation:
Product Variants
| Product | Model | Lifting Height Max. | Stroke | Extended Height | Collapsed Height | Hydraulic Stroke | Lifting Capacity | Min. Lifting Height | Min. Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
GBJ008A | 17 1/2" | 5 29/32" | 17 15/32" | 8.62" | 5 15/16" | 8 ton. | 8 5/8" | 8 5/8" | €517.04 | |
 |
GBJ050A | 15 3/4" | 5 1/2" | 15 3/4" | 10 6/25" | 5 1/2" | 50 ton. | 10 1/4" | 10 1/4" | €2,363.74 | |
 |
GBJ030A | 18 7/16" | 5 29/32" | 18 3/8" | 9.53" | 5 15/16" | 30 ton. | 9 1/2" | 9 17/32" | €1,175.68 | |
 |

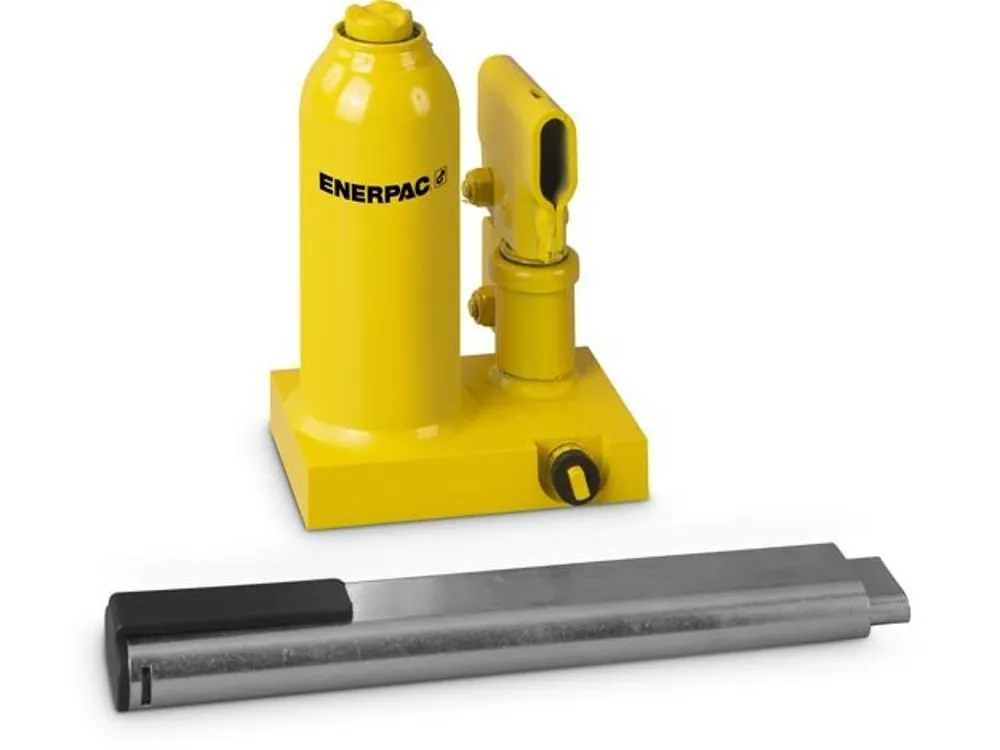

GBJ003A | 13 5/16" | 4 1/8" | 13 5/16" | 6.61" | 4 1/8" | 3 ton. | 6 5/8" | 6 5/8" | €395.80 | |
 |

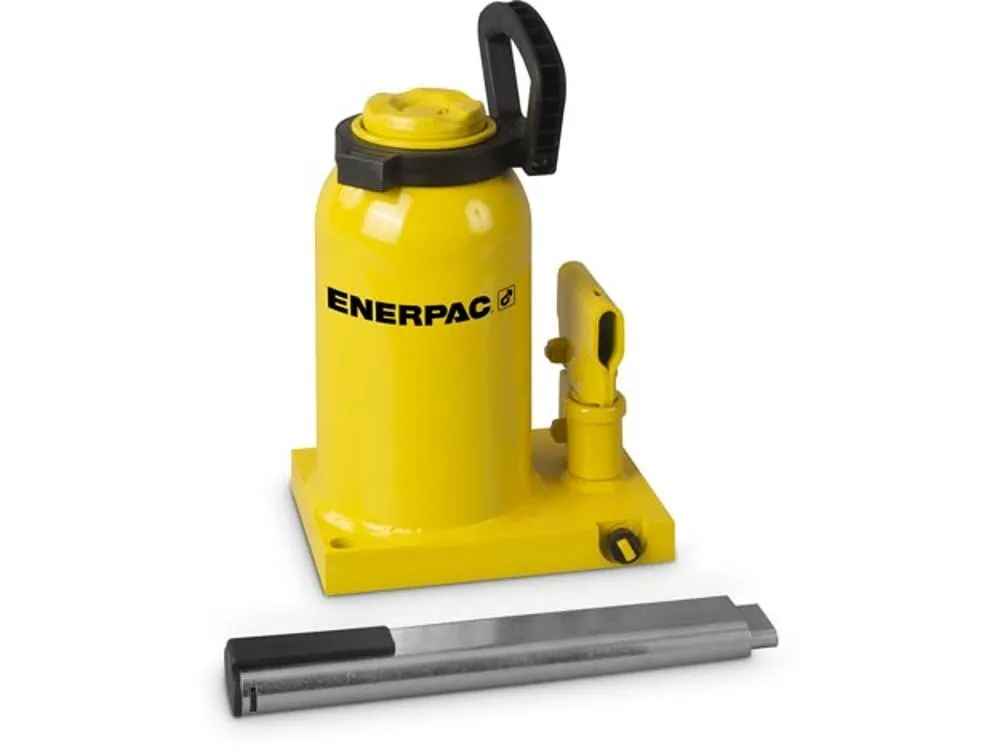

GBJ020A | 18 3/16" | 5 29/32" | 18 1/16" | 9.21" | 5 15/16" | 20 ton. | 9 3/16" | 9 7/32" | €815.08 | |
 |
GBJ002A | 13.312" | 4 1/8" | 13 5/16" | - | 4 1/8" | 2 ton. | 6 5/8" | - | - | RFQ
|
 |
GBJ002LA | 40 1/2" | 18 1/8" | 40 9/16" | 22 11/25" | 18 1/8" | 2 ton. | 22 7/16" | 22 7/16" | €712.86 |
