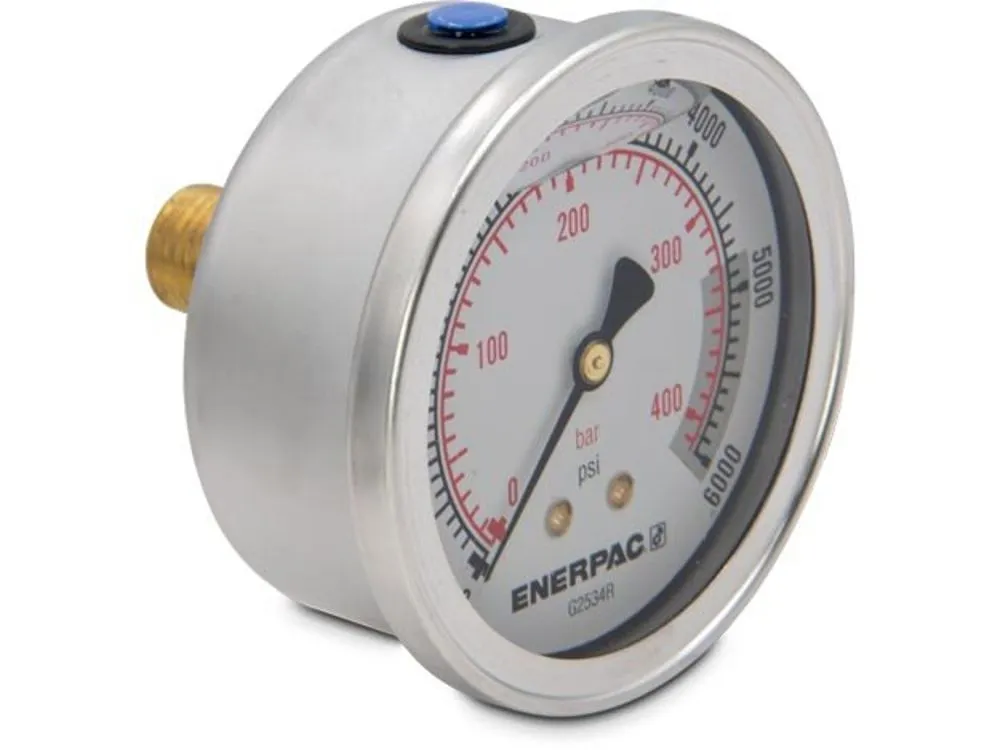

ENERPAC G2534R Hydraulic Pressure Gauge, 2.50 Inch Face, Glycerine Filled, 6000 Max. Psi
Item: AD6MRMModel: G2534RCross Ref: 46C570
7 In Stock
Ships within 2 days via
10.00% off
€282.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% |
| Accuracy Scale | Full Scale |
| Adjustable Pointer | No |
| Application | Hydraulics |
| Basic Gauge Case Material | Stainless Steel |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Corrosion Resistant |
| Case Depth | 1.46" |
| Case Dia. | 2 1/2" |
| Case Diameter | 2.5" |
| Case Material | Stainless Steel |
| Color | Silver |
| Compatible Brand And Series | Enerpac Fm-25Ng, Enerpac Nv-251 |
| Compatible Gauge Adapter | Enerpaca-3 |
| Compatible Grainger Part No. | 30W697, 30X062 |
| Compatible Manufacturer Model No. | FM-25NG, NV-251 |
| Connection Location | Center Back |
| Dial Color | White |
| Dimension A | 2 1/2" |
| Dimension E | 2 12/25" |
| Field Fillable | No |
| For Use With | Hydraulics |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Lens Material | Glass |
| Gauge Mounting Method | Center Rear |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Type | Liquid Filled |
| Graduations | 100 psi x 10 bar |
| Hazardous Location Rating | Not Rated |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge For Hydraulic Systems |
| Includes | Pressure Equalizing Membrane, Safety Blow Out Disk |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Major Graduation | 1000 psi |
| Max. Operating Pressure | 6000 psi |
| Mounting Hardware Included | No |
| Mounting Type | Rear Mount |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Gauge Type | Hydraulic Cylinder Pressure Gauge |
| Pressure Range | 0 psi to 6000 psi |
| Pressure Range Type | Pressure |
| Primary Range | 0 psi to 6000 psi |
| Primary Scale Minor Graduations | 100 |
| Primary Scale Units | Psi |
| Process Connection | 1/4" NPTF Male |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPTF |
| Product Datasheet | enerpac-g2534r.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Range | 0 psi to 6000 psi |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 400 psi |
| Secondary Range | 0 Bar to 400 Bar |
| Secondary Scale Minor Graduations | 10 |
| Secondary Scale Units | Bar |
| Secondary Units | Bar |
| Sensor Material | Copper Alloy |
| Sensor Type | Bourdon Tube |
| Series | G Series |
| Smallest Graduation | 100 psi |
| Socket Material | 303 Stainless Steel |
| Style | Glycerine Filled |
| Thread Dia. | 1/4" |
| Thread Type | NPTF |
| Vibration Resistance | Liquid Filled |
| Wetted Material | Stainless Steel, Copper |
| Wetted Parts Material | 303 Stainless Steel, Copper Alloy |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 10.16 |
| HS code | 9026208000 |
| Country of Origin | CN |
Product Details:
- Required Gauge Adapter (Enerpac GA-3)
Documentation:
Product Variants
| Product | Model | Process Connection Location | Nominal Dial Size | Mounting Type | Application | Pressure Range | Max. Operating Pressure | Major Graduation | Accuracy | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G2536L | Bottom | 2 1/2" | Stem Mount | Hydraulics | 0 psi to 15000 psi | 15000 psi | 3000 psi | -1.5% to +1.5% | €378.65 | |
 |
G4089L | Bottom | 4" | Stem Mount | Hydraulics | 0 psi to 15000 psi | 15000 psi | 3000 psi | -1% to +1% | €699.15 | |
 |
G2535L | Bottom | 2 1/2" | Stem Mount | Hydraulics | 0 psi to 10000 psi | 10000 psi | 2000 psi | -1.5% to +1.5% | €273.92 | |
 |
G4088L | Bottom | 4" | Stem Mount | Hydraulics | 0 psi to 10000 psi | 10000 psi | 1000 psi | -1% to +1% | €622.45 | |
 |
G2512L | Bottom | 2 1/2" | Stem Mount | Hydraulics | 0 psi to 300 psi | 300 psi | 50 psi | -1.5% to +1.5% | €290.73 | |
 |
G2513L | Bottom | 2 1/2" | Stem Mount | Hydraulics | 0 psi to 600 psi | 600 psi | 100 psi | -1.5% to +1.5% | €290.73 | |
 |
G2514L | Bottom | 2 1/2" | Stem Mount | Hydraulics | 0 psi to 1000 psi | 1000 psi | 100 psi | -1.5% to +1.5% | €288.12 |
