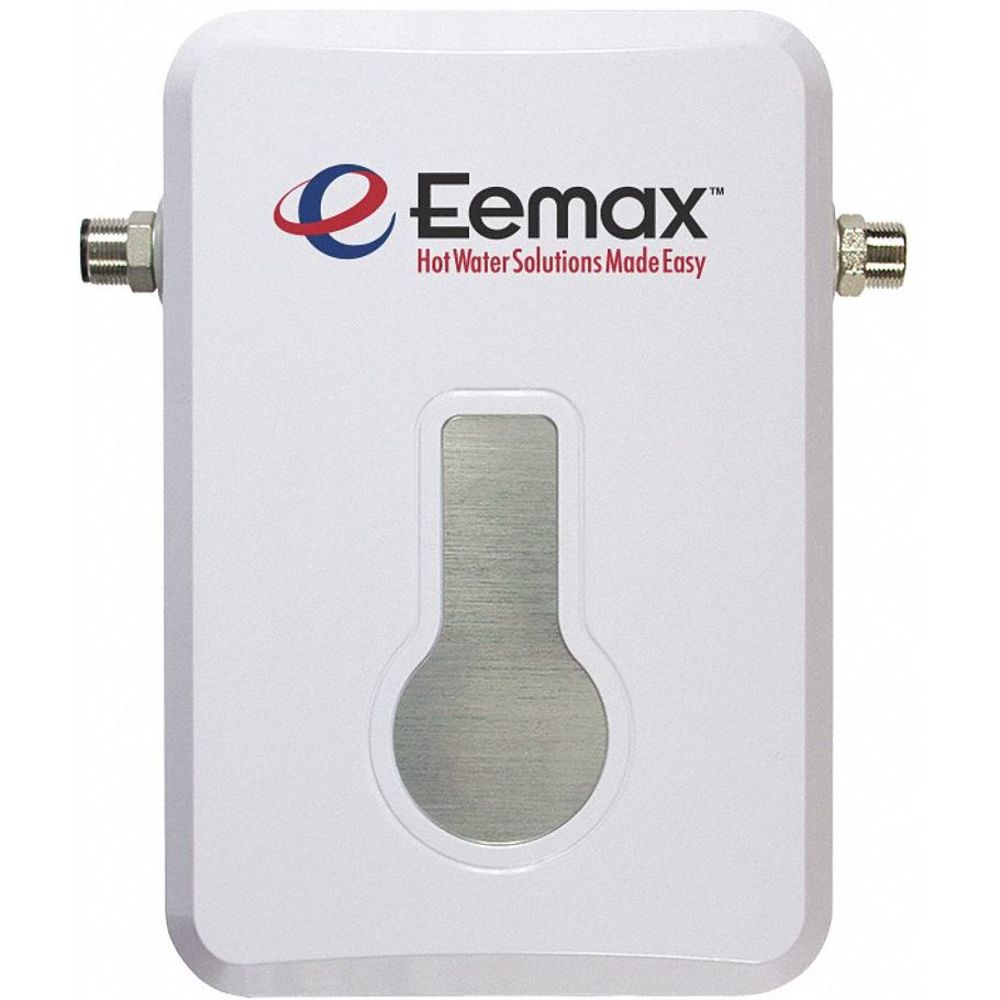

EEMAX PR013240 240V General Purpose Electric Tankless Water Heater, 13, 000 Watts, 54 Amps
Item: CD2LGVModel: PR013240Cross Ref: 52CE29
7 In Stock
Ships within 2 days via
10.00% off
€706.97 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electric Tankless Water Heater |
| Adjustable Thermostat | Yes |
| Amps | 54A |
| Application | Dishwasher, Kitchen Sinks, Mop Sinks, Standard Hand Sink |
| Cold Inlet Size | 1/2" |
| Commercial / Residential | Both |
| Cord Conductor Gauge | 6 AWG |
| Default Temp. | 120°F |
| Default Temperature | 120 Degrees F |
| Depth | 3 3/4" |
| Element Material | Copper |
| Elements | Replaceable Copper Immersion With Brass Top |
| Environment | Indoor |
| Features | Protected Internal Temperature Control |
| Height | 11 3/4" |
| Housing Material Finish | Powder Coated |
| Includes | 1/2" NPT Adapters |
| Item - Water Heaters | Electric Tankless Water Heater |
| Market | Commercial, Residential |
| Max. Flow Rate | 4.8 GPM |
| Maximum Delivered Temperature | 140°F |
| Maximum Water Pressure | 150 psi |
| Min. Flow Activation | 0.30 gpm |
| Min. Flow Activation | 0.3 GPM |
| Minimum Delivered Temperature | 80°F |
| Minimum Water Pressure | 25 psi |
| Mounting | Wall Mounting |
| Mounting Orientation | Vertical |
| Mounting Type | Wall Mounting |
| Operating Voltage | 240V AC |
| Overall Depth | 3 2/5" |
| Overall Height | 12 1/5" |
| Overall Width | 9.9" |
| Phase | 1 |
| Power Consumption | 13000 W |
| Pressure Range | 25 psi to 150 psi |
| Pressure Rating | 25 psi to 150 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Residential / Commercial | Commercial/Residential |
| Residential / Commercial | Both |
| Temp. Range | +80°F to +140°F |
| Temp. Rise @ 1.5 Gpm | 59 Degrees F |
| Temp. Rise @ 1.5 Gpm | 59°F |
| Temp. Rise @ 4.0 Gpm | 22 Degrees F |
| Temp. Rise @ 4.0 Gpm | 22°F |
| Temp. Rise @ 6.0 Gpm | Limited |
| Temp. Rise @ 6.0 Gpm | Limited to Thermostatic Setting |
| Temperature Rise @ Flow | 15°F @ 6 GPM, 18°F @ 5 GPM, 22°F @ 4 GPM, 30°F @ 3 GPM, 36°F @ 2.5 GPM, 44°F @ 2 GPM, 59°F @ 1.5 GPM, 89°F @ 1 GPM |
| Voltage | 240V |
| Water Connection | 1/2" Compression |
| Water Heater Application | General Purpose |
| Width | 7 1/4" |
Shipping Info:
| Ship weight (kg) | 3.83 |
| Ship height (cm) | 30.99 |
| Ship length (cm) | 8.64 |
| Ship width (cm) | 25.15 |
| Country of Origin | CN |
Product Variants
| Product | Model | Phase | Max. Flow Rate | Min. Flow Activation | Overall Depth | Operating Voltage | Power Consumption | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EX1608TC | 1 | 3 GPM | 0.75 GPM | - | - | - | - | - | €961.91 | |
|
EX190TC ML | 1 | 3 GPM | 0.3 GPM | 4 1/2" | 240V AC | 19000 W | 10 1/4" | 10 3/4" | €960.26 | |
 |
EX200TC | 1 | 3 GPM | - | 4.5" | 277V AC | 20000 W | 10 1/4" | 10 3/4" | €971.77 | |
 |
EX200TCS | 1 | 3 GPM | 0.7 GPM | 4 1/2" | 277V AC | 20000 W | 10 1/4" | 10 3/4" | €975.89 | |
|
EX240T2T | 3 | 4 GPM | 0.7 GPM | 4 1/2" | 208V AC | 24000 W | 12 1/4" | 18 1/4" | €2,121.28 | |
|
ED032480T2T | 3 | 4 GPM | 0.7 GPM | 4.5" | 480V AC | 32000 W | 12 1/4" | 18 1/4" | €2,372.20 | |
 |
EX180T3 | 3 | 5 GPM | - | 4 1/2" | 208V AC | 18000 W | 12 1/4" | 18 1/4" | €2,013.47 |
