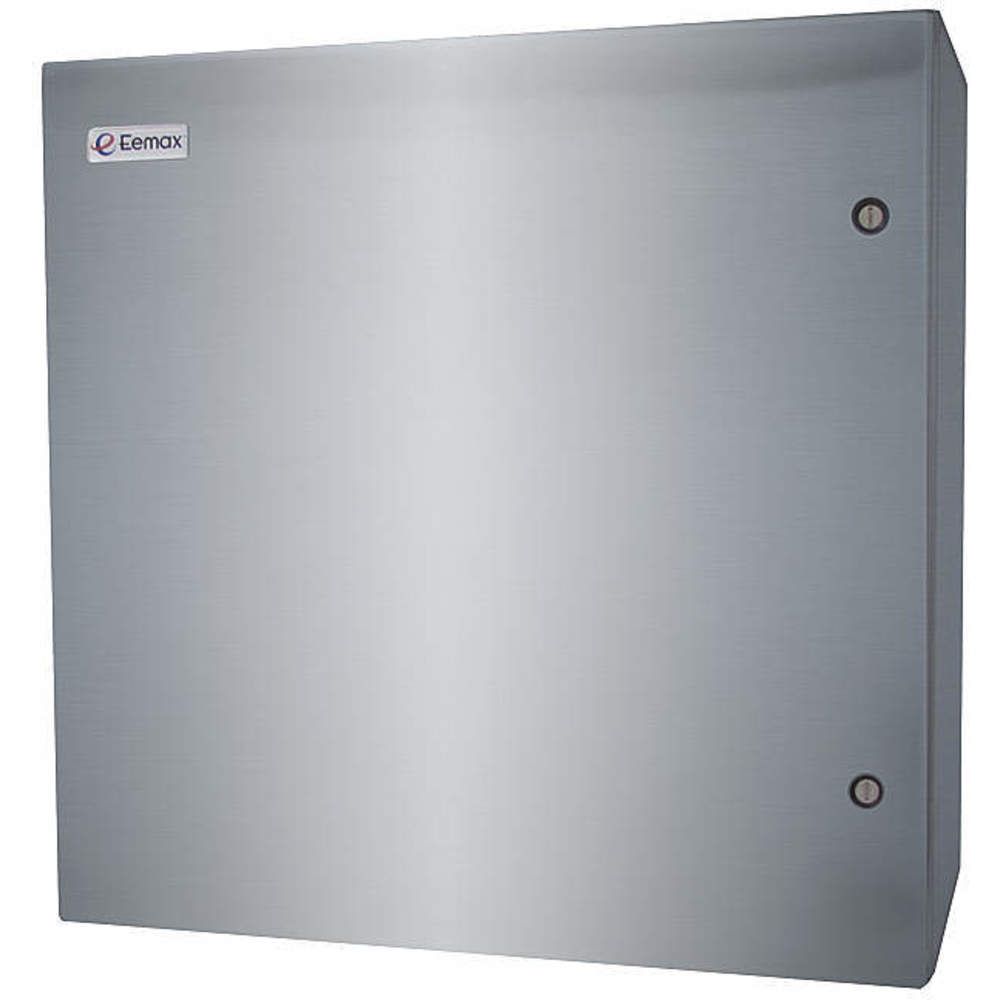

EEMAX AP036480 EE Electric Tankless Water Heater 480vac
Get it by Thursday, Dec 18
€10,671.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Elec Tankless Water Heater |
| Amps | 43A |
| Commercial / Residential | Commercial |
| Default Temp. | 120°F |
| Default Temperature | 120 Degrees F |
| Depth | 10.281" |
| Elements | Lead-Free Replaceable Cartridge Insert |
| Housing Material | Aluminum |
| Housing Material Finish | Powder Coated |
| Max. Flow Rate | 40 GPM |
| Min. Flow Activation | 1 GPM |
| Mounting | Vertical |
| Nema Rating | Not Rated |
| Overall Depth | 10 7/25" |
| Phase | 3 |
| Pressure Range | 150 psi |
| Promotion Restriction | Not Eligible For Promotion |
| Residential / Commercial | Commercial |
| Temp. Range | +60°F to +90°F |
| Temp. Rise @ 1.5 Gpm | 163 Degrees F |
| Temp. Rise @ 1.5 Gpm | 163°F |
| Temp. Rise @ 2.5 Gpm | 98°F |
| Temp. Rise @ 2.5 Gpm | 98 Degrees F |
| Temp. Rise @ 20.0 Gpm | 12°F |
| Temp. Rise @ 20.0 Gpm | 12 Degrees F |
| Temp. Rise @ 4.0 Gpm | 61°F |
| Temp. Rise @ 4.0 Gpm | 61 Degrees F |
| Temp. Rise @ 6.0 Gpm | 40°F |
| Temp. Rise @ 6.0 Gpm | 40 Degrees F |
| Temp. Rise @ 8.0 Gpm | 30 Degrees F |
| Water Connection | 1-1/4" NPT |
| Water Connection Location | Bottom |
| Water Connection Size | 1.25" |
| Water Connection Type | NPT |
| Water Heater Application | Point-of-Use, Eyewash |
| Width | 17 1/8" |
Shipping Info:
| Ship weight (kg) | 40.82 |
| Ship height (cm) | 60.96 |
| Ship length (cm) | 101.6 |
| Ship width (cm) | 121.92 |
| HS code | 8516100080 |
| Country of Origin | US |
Product Details:
- Water Heater Design (Point-of-Use)
Product Variants
| Product | Model | Phase | Max. Flow Rate | Min. Flow Activation | Overall Depth | Operating Voltage | Power Consumption | Overall Height | Overall Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EX1608TC | 1 | 3 GPM | 0.75 GPM | - | - | - | - | - | €961.91 | |
|
EX190TC ML | 1 | 3 GPM | 0.3 GPM | 4 1/2" | 240V AC | 19000 W | 10 1/4" | 10 3/4" | €960.26 | |
 |
EX200TC | 1 | 3 GPM | - | 4.5" | 277V AC | 20000 W | 10 1/4" | 10 3/4" | €971.77 | |
 |
EX200TCS | 1 | 3 GPM | 0.7 GPM | 4 1/2" | 277V AC | 20000 W | 10 1/4" | 10 3/4" | €975.89 | |
|
EX240T2T | 3 | 4 GPM | 0.7 GPM | 4 1/2" | 208V AC | 24000 W | 12 1/4" | 18 1/4" | €2,121.28 | |
|
ED032480T2T | 3 | 4 GPM | 0.7 GPM | 4.5" | 480V AC | 32000 W | 12 1/4" | 18 1/4" | €2,372.20 | |
 |
EX180T3 | 3 | 5 GPM | - | 4 1/2" | 208V AC | 18000 W | 12 1/4" | 18 1/4" | €2,013.47 |
