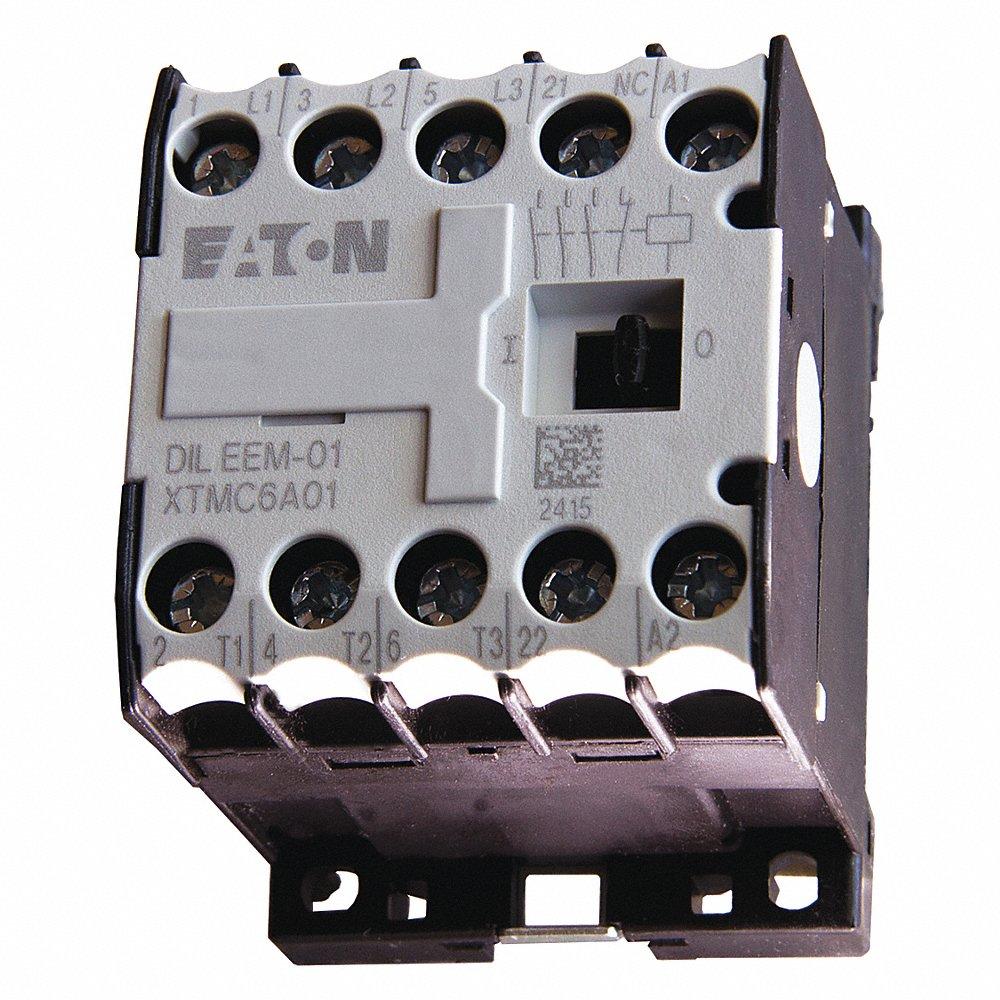

EATON XTMC6A01A Miniature IEC Magnetic Contactor, Non-Reversing, 3 Poles, 6 A, 120 VAC Coil, A Frame Size
Item: CJ2UZMModel: XTMC6A01ACross Ref: 4WUY6
7 In Stock
Ships within 2 days via
10.00% off
€140.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Miniature IEC Magnetic Contactor |
| Amps Rating | 6.6A |
| Auxiliary Contacts Included | 1NC |
| Coil Voltage | 110/120V AC |
| Contactor Style | IEC |
| Depth | 2 1/2" , 2.05" |
| Embedded Surge Suppressor | Yes |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | A |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 6A |
| Full Load Amps-resistive | 20A |
| Full Load Current - Resistive | 20A |
| Height | 1.77" , 2" |
| Horsepower @ Single Phase - 240v Ac | 1 hp |
| Horsepower @ Three Phase (600 Vac) | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 3 hp |
| Hp @ 1 Phase - 120v | 1/4 hp |
| Hp @ 1 Phase - 240v | 1 hp |
| Hp @ 3 Phase - 208v | 1 1/2 hp , 2 hp |
| Hp @ 3 Phase - 240v | 2 hp , 3 hp |
| Hp @ 3 Phase - 480v | 3 hp |
| Hp @ 3 Phase - 575v | 3 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC/DC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Hole Dia. | 4/25" |
| Mounting Hole Distance | 1.98" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Position | Vertical |
| Mounting Style | Din Rail, Panel |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Auxillary Contacts | 1 |
| Number Of Poles | 3 |
| Overall Depth | 2.5" |
| Overall Height | 2" |
| Overall Width | 2 1/2" |
| Product Height | 2" |
| Product Width | 2 1/2" |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | Xt Series Series |
| Terminal Connection Type | Screw Terminals |
| Width | 1.77" , 2 1/2" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 6.35 |
| Country of Origin | DE |
Product Variants
| Product | Model | Number Of Poles | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Includes Auxiliary Contacts | Height | Mechanical Operating Durability | Hp @ 1 Phase - 120v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
XTMC6A01B | 3 | 3NO | 1NC | 240V AC | Yes | 1.77" | 10000000 | 1/4 hp | €156.65 | |
|
XTMC6A01T | 3 | 3NO | 1NC | 24V AC | Yes | 1.77" | 10000000 | 1/4 hp | €156.65 | |
 |
XTMC6A10A | 3 | 3NO | 1NO | 120V AC | Yes | 2 1/2" | 10000000 | - | €138.66 | |
|
XTMC6A10T | 3 | 3NO | 1NO | 24V AC | Yes | 2 1/2" | 10000000 | - | €138.66 | |
 |
XTMC9A01C | 3 | 3NO | 1NC | 480V AC | Yes | 2" | 10000000 | - | €205.96 | |
 |
XTMC9A10E | 3 | 3NO | 1NO | 208V AC | Yes | 2" | 10000000 | 1/2 hp | €182.45 | |
 |
XTMC9A01A | 3 | 3NO | 1NC | 120V AC | Yes | 2" | 10000000 | 1/2 hp | €205.96 |
