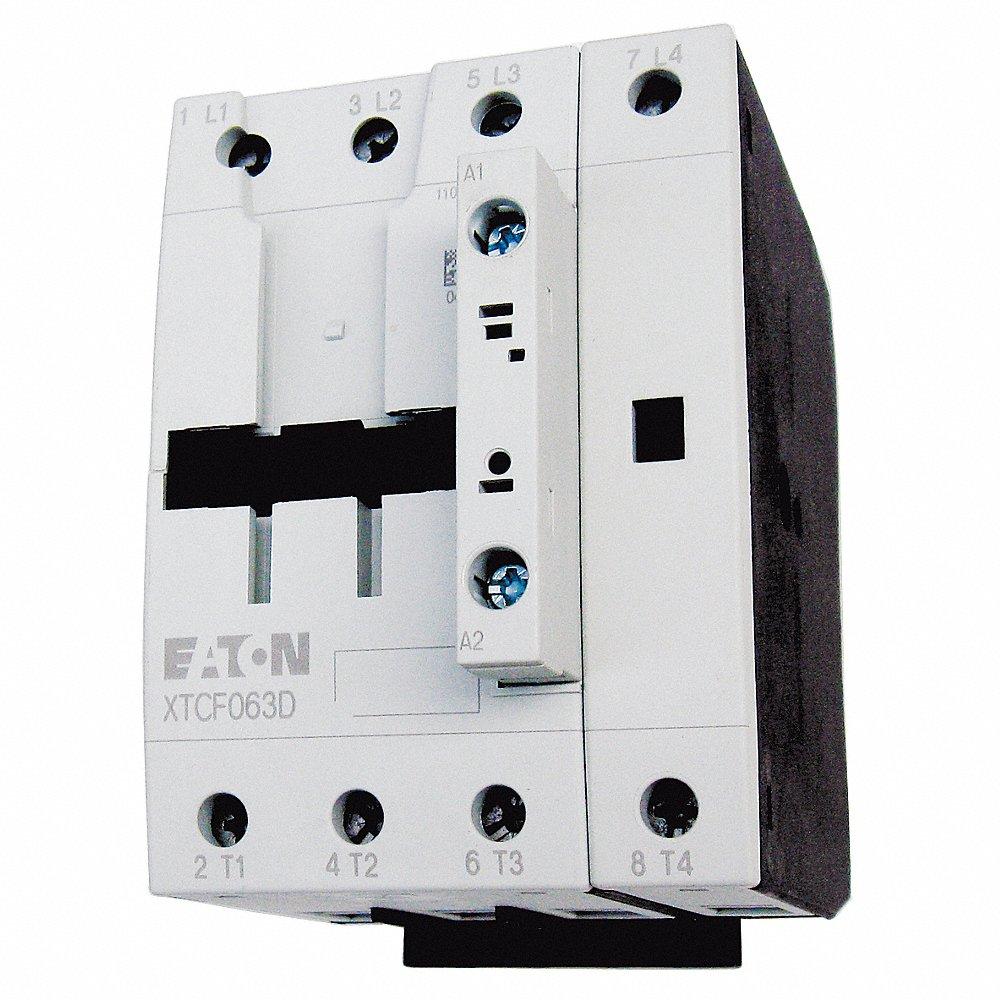

EATON XTCF063D00T Iec Contactor, Full Voltage, Non-Reversing, 24 VAC V Coil, 4P
Item: CJ2NUXModel: XTCF063D00TCross Ref: 21EP12
7 In Stock
Ships within 2 days via
5.00% off
€627.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Auxiliary Contacts Included | None |
| Coil Voltage | 24V AC |
| Contactor Style | IEC |
| Depth | 5 1/5" , 5.79" |
| Embedded Surge Suppressor | Yes |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | D |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 40A |
| Full Load Amps-resistive | 63A |
| Height | 3.35" , 4.53" |
| Hp @ 1 Ph-240v | 10 hp |
| Hp @ 1 Phase-240v | 10 hp |
| Hp @ 3 Ph-480v | 30 hp |
| Hp @ 3 Phase-208v | 10 hp |
| Hp @ 3 Phase-240v | 15 hp |
| Hp @ 3 Phase-480v | 30 hp |
| Hp @ 3 Phase-575v | 40 hp |
| Hp @ 3 Phase-600v | 40 hp |
| Included Auxiliary Contacts | No |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Max. Operating Temp. | 122°F |
| Max. Voltage | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 4/25" |
| Mounting Hole Distance | 4.13" |
| Mounting Hole Distance Width | 1.77" |
| Mounting Style | DIN Rail, Panel |
| Nema Enclosure Material | Not Applicable |
| No. Of Auxillary Contacts | 0 |
| No. Of Poles | 4 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Overall Depth | 5.79" |
| Overall Height | 4.53" |
| Overall Width | 3.35" |
| Phase | 3 |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | Xt Series Series |
| Terminal Connection Type | Screw Terminal |
| Width | 3.35" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 2.8 |
| Ship height (cm) | 11.51 |
| Ship length (cm) | 14.71 |
| Ship width (cm) | 8.51 |
| Country of Origin | DE |
Product Variants
| Model | No. Of Poles | Height | Coil Voltage | Frame Size | Frequency | Amps | Max. Hp | Continuous Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XTCE007B01A | 3 | 2" | 110-120V AC | B | 50/60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €250.30 | |
| XTCE007B01C | 3 | 3 1/2" | 415-480V AC | B | 50/60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €239.42 | |
| XTCE007B01E | 3 | 3" | 208V AC | B | 60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €239.42 | |
| XTCE007B01B | 3 | 3.07" | 220-240V AC | B | 50/60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €250.30 | |
| XTCE007B01T | 3 | 1 1/2" | 24V AC | B | 50/60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €250.30 | |
| XTCE007B01TD | 3 | 3" | 24V DC | B | 50/60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €334.78 | |
| XTCE007B10A | 3 | 2.67" | 110-120V AC | B | 50/60 Hz | 7A | 1/4, 3/4, 1/ 1 1/2, 2, 3, 5 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) | 7A | €238.92 |
