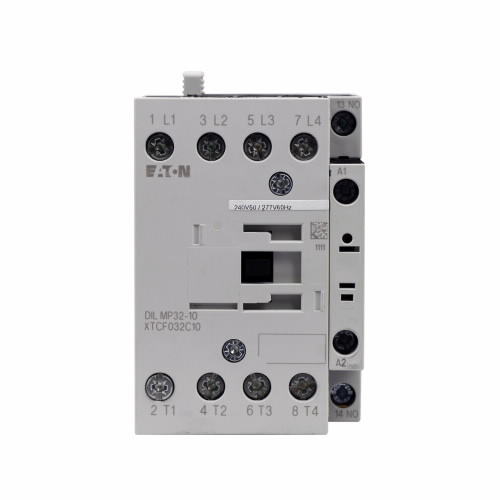

EATON XTCF032C10H Iec Contactor, Full Voltage, Non-Reversing, 240/277 VAC V Coil, 32A, 1No Contact, 4P
Get it by Thursday, Dec 18
€406.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Contactor |
| Amps Rating | 32A |
| Coil Voltage | 240-277V AC |
| Contact Configuration | 1 NO |
| Continuous Amps Rating | 32A |
| Frame Size | 45 mm |
| Frequency | 50/60 Hz |
| Frequency Rating | 50-60 Hz |
| Height | 2 3/4" |
| Length | 4 1/2" |
| Max. Hp Rating | 7 1/2, 7 1/2, 10, 15 hp (3 Phase @ 200, 230, 460, 575V) |
| Mfr. Series | XT IEC Series |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 4 |
| Operation | Non-Reversing |
| Product Name | Eaton XT IEC contactor |
| Terminals | Screw Terminals |
| Type | Full Voltage Non-reversing Contactor |
| Warranty | 1 yr. |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 11.43 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Height | Frame Size | Price | |
|---|---|---|---|---|---|
| XTCE018C01AD | 3 | 3.898" | 45 mm | €394.34 | |
| XTCE018C01F | 3 | 3.898" | 45 mm | €371.97 | |
| XTCE018C01D | 3 | 3.898" | 45 mm | €322.38 | |
| XTCE018C01G | 3 | 3.898" | 45 mm | €322.38 | |
| XTCE018C01N | 3 | 3.898" | 45 mm | €322.38 | |
| XTCE018C01L | 3 | 3.898" | 45 mm | €322.38 | |
| XTCE018C01H | 3 | 3.898" | 45 mm | €322.38 |
