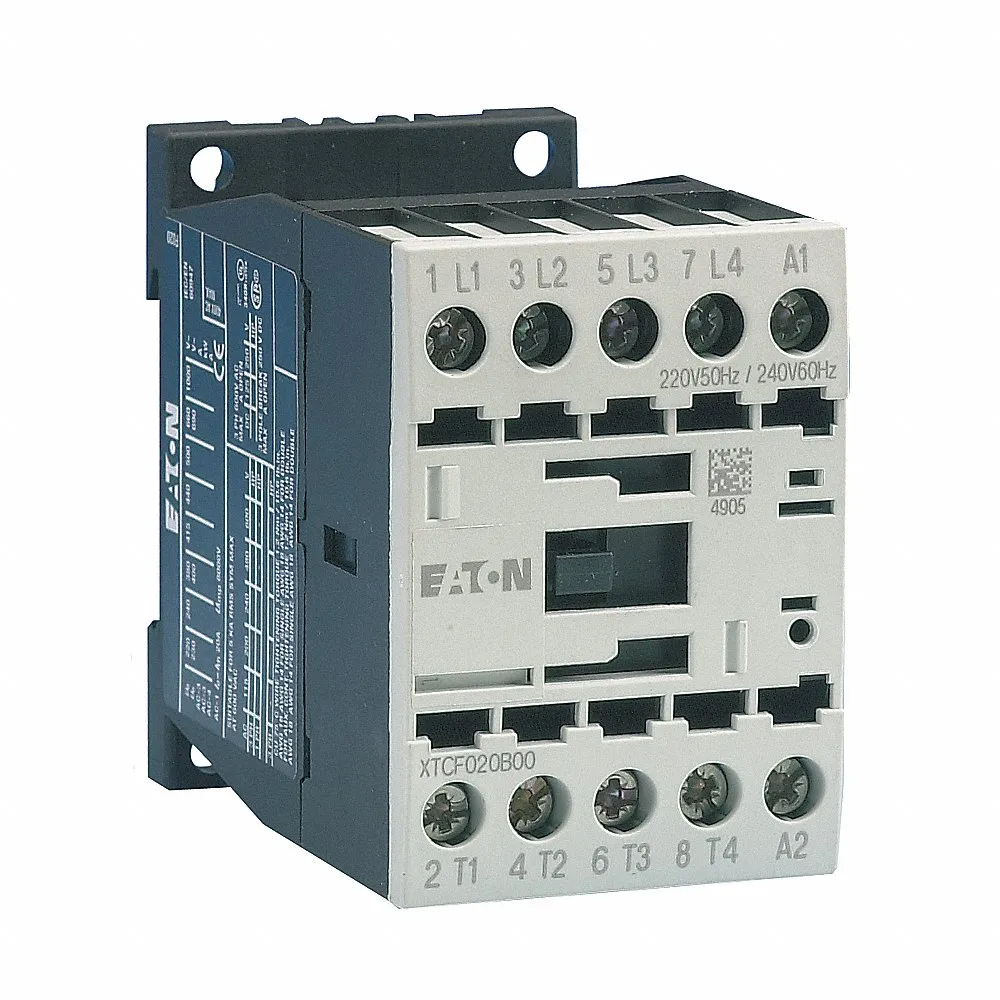

EATON XTCF020B00B IEC Magnetic Contactor, Non-Reversing, 4 Poles, 12 A, 240 VAC Coil, B Frame Size
Item: BH8YQZModel: XTCF020B00BCross Ref: 4WUG3
7 In Stock
Ships within 2 days via
5.00% off
€333.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Auxiliary Contacts Included | None |
| Coil Voltage | 220/240V AC |
| Contactor Style | IEC |
| Depth | 2.95" |
| Embedded Surge Suppressor | Yes |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | B |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 12A |
| Full Load Amps-resistive | 22A |
| Full Load Current - Resistive | 22A |
| Height | 1.77" , 2 17/25" |
| Horsepower @ Single Phase - 240v Ac | 2 hp |
| Horsepower @ Three Phase (600 Vac) | 10 hp |
| Horsepower @ Three Phase - 208v Ac | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Hp @ 1 Phase - 120v | 1 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Includes Auxiliary Contacts | No |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Hole Dia. | 4/25" |
| Mounting Hole Distance | 2 9/25" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Style | Din Rail, Panel |
| Nema Enclosure Material | Not Applicable |
| Nominal Coil Voltage @ 60hz | 240V AC |
| Number Of Auxillary Contacts | 0 |
| Number Of Poles | 4 |
| Overall Depth | 2.95" |
| Overall Height | 2 17/25" |
| Overall Width | 1.77" |
| Phase | Three |
| Reversible | No |
| Reversing Capability | Non-reversing |
| Series | Xt Series Series |
| Terminal Connection Type | Screw Terminals |
| Width | 1.77" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 6.81 |
| Ship length (cm) | 7.49 |
| Ship width (cm) | 4.5 |
| Country of Origin | DE |
Product Variants
| Model | Number Of Poles | Frame Size | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Height | Includes Auxiliary Contacts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XTCE007B01A | 3 | B | Non-reversing | 3NO | 1NC | 120V AC | 2" | Yes | €250.30 | |
| XTCE007B01C | 3 | B | Non-reversing | 3NO | 1NC | 480V AC | 3 1/2" | Yes | €239.42 | |
| XTCE007B01E | 3 | B | Non-reversing | 3NO | 1NC | 208V AC | 3" | Yes | €239.42 | |
| XTCE007B01B | 3 | B | Non-reversing | 3NO | 1NC | 240V AC | 3.07" | Yes | €250.30 | |
| XTCE007B01T | 3 | B | Non-reversing | 3NO | 1NC | 24V AC | 1 1/2" | Yes | €250.30 | |
| XTCE007B01TD | 3 | B | Non-reversing | 3NO | 1NC | 24V DC | 3" | Yes | €334.78 | |
| XTCE007B10A | 3 | B | Non-reversing | 3NO | 1NO | 120V AC | 2.67" | Yes | €238.92 |
