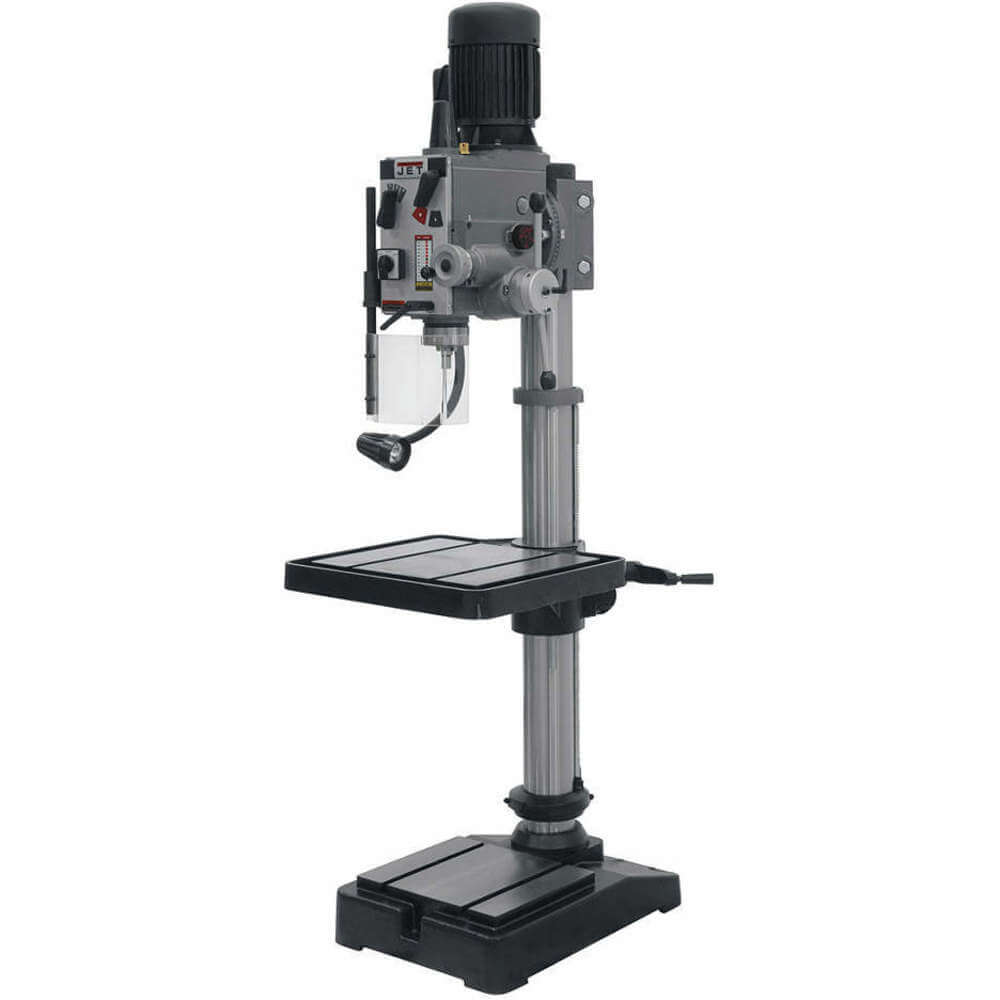

JET TOOLS JT9-354024 GHD-20PF Geard Head Drill With Power Feed 230v
Get it by Thursday, Apr 2
5.00% off
€8,042.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Floor Drill Press w/Power Feed |
| Application | Drilling |
| Base Dimensions | 26" x 18" |
| Base Length | 26" |
| Base Width | 18" |
| Base Work Table | 15 1/4" x 13" |
| Capacity Cast Iron | 1-1/2" |
| Capacity Steel | 1-1/4" |
| Chuck Size | 1/2" |
| Chuck Style | Keyed |
| Column Dia. | 4 1/2" |
| Column Dia. | 4-1/2" |
| Coolant System | No |
| Current | 3.2/3.2A |
| Distance Column To Spindle | 10" |
| Drill Press Application | Drilling |
| Drill Press Type | Floor Stand |
| Drilling Capacity Cast Iron | 1 1/2" |
| Drilling Capacity In Cast Iron | 1 1/2" |
| Drilling Capacity In Stainless Steel | 1" |
| Drilling Capacity In Steel | 1 1/4" |
| Drilling Capacity In Wood | 1 1/2" |
| Drilling Capacity Mild Steel | 1 1/4" |
| Drills To Center Of Circle | 20" |
| Drive Type | Geared Head |
| Guard Included | Yes |
| Horsepower | 2 hp |
| Includes | Draw Bar, Drill Chuck Arbor |
| Max. Spindle Distance To Table | 30 1/2" |
| Max. Spindle To Base | 44-5/16" |
| Max. Spindle To Base | 44.312" |
| Maximum Overall Height | 71" |
| Maximum Spindle Speed | 3000 RPM |
| Maximum Spindle-to-base Height | 44 15/16" |
| Maximum Spindle-to-table Height | 30 1/2" |
| Minimum Spindle Speed | 60 RPM |
| Motor Hp | 2 hp |
| Motor Voltage | 230V AC, 3-Phase |
| No. Of Motor Phase | 3 |
| Number Of Speeds | 12 |
| Number Of Spindle Speeds | 12 |
| Number Of T-slots | 2 |
| Overall Depth | 24" |
| Overall Dimensions | 32" x 24" x 71" |
| Overall Height | 71" |
| Overall Length | 32" |
| Overall Width | 32" |
| Phase | 3 |
| Power Down Feed Included | Yes |
| Power Source | Corded |
| Primary Material Application | Metal |
| Quill Dia. | 3" |
| Quill Diameter | 3" |
| Quill Feed | Manual |
| Radial Arm | No |
| Range Of Spindle Speeds | 60/120/130/230/260/450/460/800/900/1500/1600/3000 RPM |
| Speed Control | Fixed |
| Speed Control Type | Gear Head |
| Spindle Distance To Base | 44 15/16" |
| Spindle Speed | 60-3000 RPM |
| Spindle Speed | 60 to 3000 |
| Spindle Speed Range | 60-3000 RPM |
| Spindle Taper | 3MT , MT-3 |
| Spindle Taper | 3MT |
| Spindle To Table | 30-1/2" |
| Spindle To Table | 30 1/2" |
| Spindle Travel | 4-1/2" |
| Spindle Travel | 4 1/2" |
| Spindle-to-column Distance | 10" |
| Style | Geared Head |
| Swing | 20" |
| T-slot Centers | 9" |
| Table Length | 21 3/4" |
| Table Load Capacity | 275 lbs. |
| Table Shape | Rectangular |
| Table Slot | Yes |
| Table Slot Width | 5/8" |
| Table Travel | 25 1/2" |
| Table Width | 19 1/2" |
| Table Work Surface | 21-3/4" x 19-1/2" |
| Tool Weight | 660 lbs. |
| Voltage | 230V AC |
| Work Table Weight Capacity | 275 lbs. |
Shipping Info:
| Ship weight (kg) | 315 |
| Ship height (cm) | 193.04 |
| Ship length (cm) | 83.82 |
| Ship width (cm) | 73.66 |
| HS code | 8465950060 |
| Country of Origin | TW |
