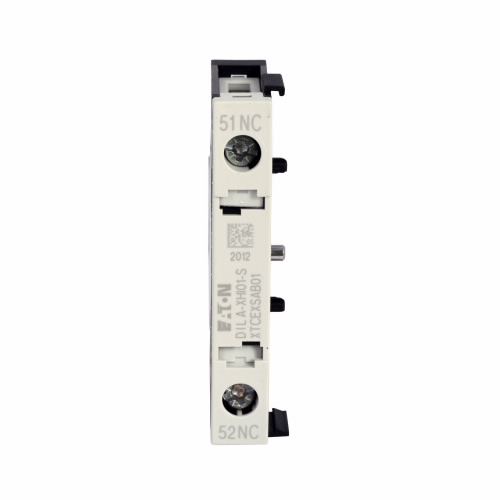

EATON XTCEXSAB01 Auxiliary Contact
Get it by Friday, Aug 28
€52.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Auxiliary Contact |
| Contact Configuration | 1 NC |
| Conventional Thermal Amps | 16A |
| Frame Size | B |
| Height | 1 3/4" |
| Length | 2" |
| Mounting Type | Side |
| Note | Frames B-C Cannot Use Both A Side And A Top Mount Auxiliary Contact At The Same Time. Can Only Be Mounted To The Left Side Of Contactor. Cannot Be Used In Combination With Front (Top) Mount Auxiliary Contacts Or Mechanical Interlocks. |
| Product Name | Eaton motor control auxiliary contact |
| Quantity | 1 |
| Terminals | Screw |
| Type | Contactor Accessory-Auxiliary Contact |
| Used With | XTCEXSAB |
| Width | 4" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 10.16 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Mounting Location | Amps | Contact Configuration | Note | Mounting Type | No. Of Poles | Terminals | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NHI11-PKZ2 | 1 1/2" | - | - | - | - | - | - | - | €141.13 | |
 |
NHI-E-10-PKZ0 | 1" | - | - | - | - | - | - | - | €61.34 | |
 |
XTCEXFACC22 | 1 1/2" | - | - | 2 NO, 2 NC | Interlocked Opposing Contacts, To IEC/EN 60947-5-1 Annex L (Positively Driven), Within The Auxiliary Contact Modules (Not NOE And NCL Contacts) And Between The Auxiliary Contacts And Built-In Contacts Of The XTRE Control Relays. | Front | 4 | Spring Cage | €95.89 | |
 |
XTCEXFACC11 | 1 1/2" | - | - | 1 NC, 1 NO | Interlocked Opposing Contacts, To IEC/EN 60947-5-1 Annex L (Positively Driven), Within The Auxiliary Contact Modules (Not NOE And NCL Contacts) And Between The Auxiliary Contacts And Built-In Contacts Of The XTRE Control Relays. | Front | 2 | Spring Cage | €79.70 | |
 |
XTCEXFAC20 | 1 1/2" | - | - | 2 NO | Interlocked Opposing Contacts, To IEC/EN 60947-5-1 Annex L (Positively Driven), Within The Auxiliary Contact Modules (Not NOE And NCL Contacts) And Between The Auxiliary Contacts And Built-In Contacts Of The XTRE Control Relays. | Front | 2 | Screw | €49.36 | |
 |
XTCEXFAC31 | 1 1/2" | - | - | 3 NO-1 NC | Interlocked Opposing Contacts, To IEC/EN 60947-5-1 Annex L (Positively Driven), Within The Auxiliary Contact Modules (Not NOE And NCL Contacts) And Between The Auxiliary Contacts And Built-In Contacts Of The XTRE Control Relays. | Front | 4 | Screw | €93.09 | |
 |
XTCEXFAC04 | 1.3" | - | - | 4 NC | Interlocked Opposing Contacts, To IEC/EN 60947-5-1 Annex L (Positively Driven), Within The Auxiliary Contact Modules (Not NOE And NCL Contacts) And Between The Auxiliary Contacts And Built-In Contacts Of The XTRE Control Relays. | Front | 4 | Screw | €125.53 |
