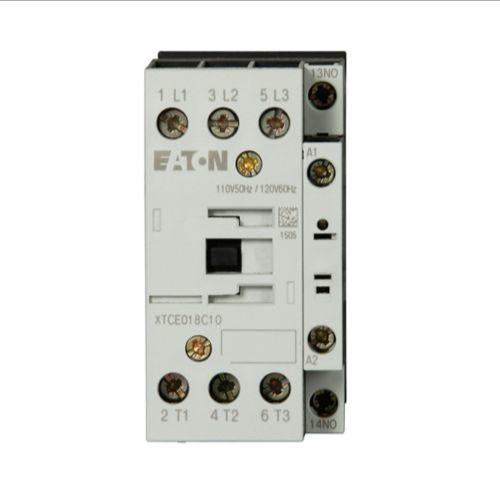

EATON XTCE018C10E IEC Magnetic Contactor, Non-Reversing, 3 Poles, 18 A, 208 VAC Coil, 1NO, C Frame Size
Item: BH8XJLModel: XTCE018C10ECross Ref: 4TYX2
7 In Stock
Ships within 2 days via
10.00% off
€326.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Amps Rating | 18A |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 208V AC |
| Contact Configuration | 1 NO |
| Contactor Style | IEC |
| Continuous Amps Rating | 18A |
| Electrical Operating Durability | 2000000 |
| Frame Size | C |
| Frequency | 60 Hz |
| Frequency Rating | 60 Hz |
| Full Load Current - Inductive | 18A |
| Full Load Current - Resistive | 40A |
| Height | 3.898" |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 5 hp |
| Horsepower @ Three Phase - 240v Ac | 5 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Horsepower @ Three Phase - 600v Ac | 15 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Length | 3.425" |
| Main Power Pole Contact Form | 3NO |
| Max. Hp Rating | 2, 2, 3/ 5, 5, 10, 15 hp (1/3 Phase @ 115, 200, 230/200, 230, 460, 575V) |
| Maximum Operating Temperature | 122°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | XT IEC Series |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 208V AC |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 3 |
| Operation | Non-Reversing |
| Overall Depth | 3.43" |
| Overall Height | 3.9" |
| Overall Width | 1.85" |
| Product Name | Eaton XT IEC contactor |
| Reversing Capability | Non-reversing |
| Series | Xt Series Series |
| Terminals | Screw Terminals |
| Type | Full Voltage Non-reversing Contactor |
| Warranty | 1 yr. |
| Width | 1.85" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 9.9 |
| Ship length (cm) | 8.7 |
| Ship width (cm) | 4.7 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Frame Size | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Nominal Coil Voltage @ 60hz | Height | Includes Auxiliary Contacts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XTCE007B01A | 3 | B | Non-reversing | 3NO | 1NC | 120V AC | 2" | Yes | €250.30 | |
| XTCE007B01C | 3 | B | Non-reversing | 3NO | 1NC | 480V AC | 3 1/2" | Yes | €239.42 | |
| XTCE007B01E | 3 | B | Non-reversing | 3NO | 1NC | 208V AC | 3" | Yes | €239.42 | |
| XTCE007B01B | 3 | B | Non-reversing | 3NO | 1NC | 240V AC | 3.07" | Yes | €250.30 | |
| XTCE007B01T | 3 | B | Non-reversing | 3NO | 1NC | 24V AC | 1 1/2" | Yes | €250.30 | |
| XTCE007B01TD | 3 | B | Non-reversing | 3NO | 1NC | 24V DC | 3" | Yes | €334.78 | |
| XTCE007B10A | 3 | B | Non-reversing | 3NO | 1NO | 120V AC | 2.67" | Yes | €238.92 |
