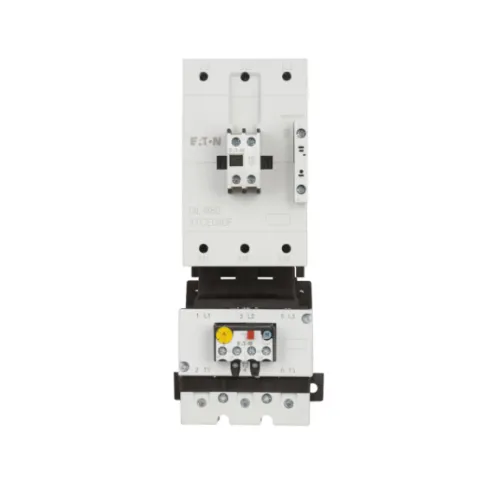

EATON XTAE115G11A125 Electronic Motor Starter, 115 A, Top-Mounted, 100-120 V, 50/60 Hz, G Frame, 95-125 A
95-125A
115A
Get it by Tuesday, Aug 25
€1,872.03 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Amps | 115A |
| Auxiliary Contacts | Top Mounted |
| Coil Voltage | 100-120V AC |
| Contact Configuration | 1 NC, 1 NO |
| Frame | G |
| Frame Size | 90 mm |
| Frequency | 50/60 Hz |
| Height | 7" |
| Length | 12" |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Product Datasheet | eaton-xtae115g11a125.pdf |
| Product Name | Eaton XT IEC Electronic Motor Starter |
| Terminals | Screw Terminal |
| Type | Full Voltage Non-reversing IEC Starter |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 3.65 |
| Ship height (cm) | 17.78 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Height | Frame Size | Amps | Coil Voltage | Frame | Contact Configuration | Overload Range | Frequency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| XTAE007B01A010 | 4 16/25" | 45 mm | 7A | 110-120V AC | B | 1 NC | 6-10A | 50/60 Hz | €394.34 | |
| XTAE007B01A004 | 4 16/25" | 45 mm | 7A | 110-120V AC | B | 1 NC | 2.4-4A | 50/60 Hz | €394.34 | |
| XTAE007B01A1P6 | 4 16/25" | 45 mm | 7A | 110-120V AC | B | 1 NC | 1-1.6A | 50/60 Hz | €394.34 | |
| XTAE007B01A001 | 4 16/25" | 45 mm | 7A | 110-120V AC | B | 1 NC | 0.6-1A | 50/60 Hz | €394.34 | |
| XTAE007B01A2P4 | 4 16/25" | 45 mm | 7A | 110-120V AC | B | 1 NC | 1.6-2.4A | 50/60 Hz | €394.34 | |
| XTAE007B01A006 | 4 16/25" | 45 mm | 7A | 110-120V AC | B | 1 NC | 4-6A | 50/60 Hz | €394.34 | |
| XTAE007B01A3EP05 | 8" | 45 mm | 7A | 110-120V AC | B | 1 NC | 0.1-0.5A | 50/60 Hz | €428.93 |
