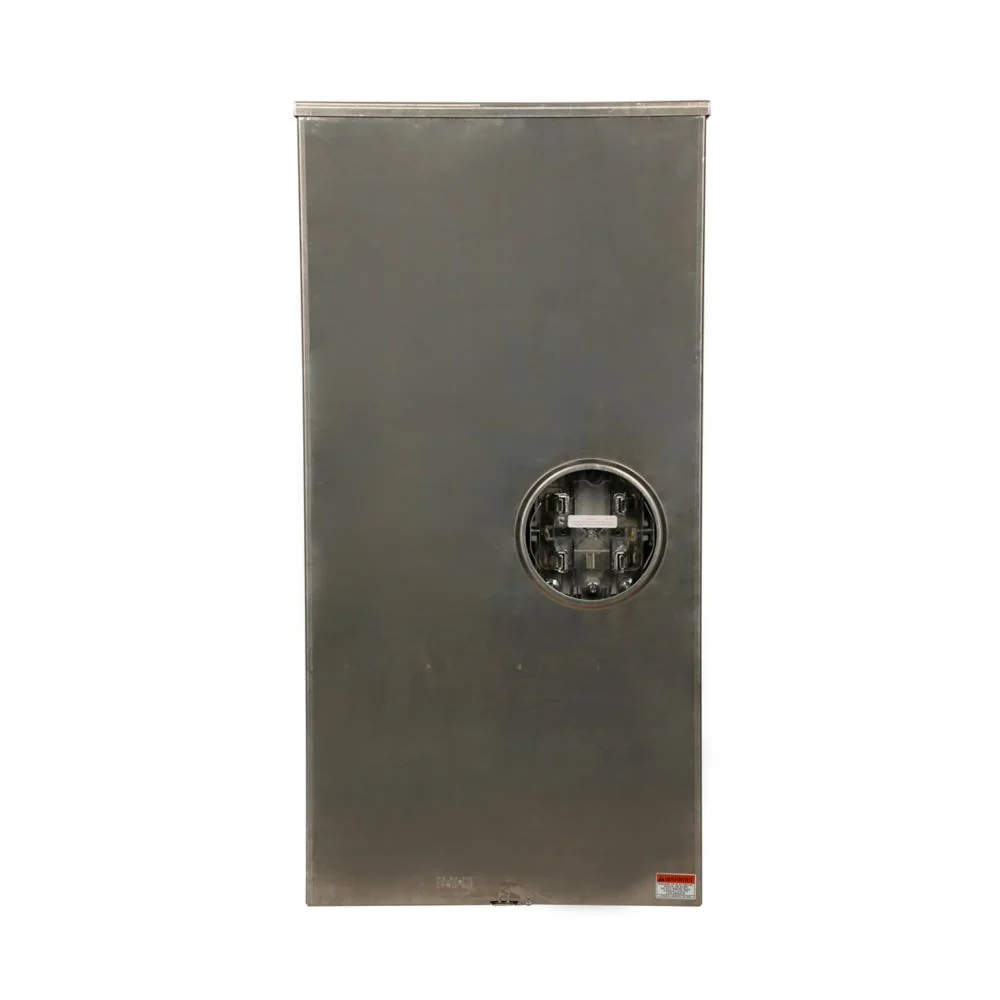

EATON UATH5330UFLCH Three-Wire One-Position Meter Socket, 600 VAC, 320A, 1 Phase
Get it by Thursday, Feb 19
€2,142.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Socket |
| Amps Rating | 320A |
| Bypass | Lever |
| Connection | Ground connection |
| Enclosure Material | Aluminum |
| Feed Type | Top/Bottom |
| Height | 39 22/25" |
| Hub Type | 5 x 5 hub opening |
| Length | 6 1/2" |
| Line | 3/8" Stud |
| Number Of Jaws | 4 |
| Number Of Sockets | 1 |
| Number Of Wires | 3 |
| Phase | 1 |
| Security | Ringless |
| Stud Size | 3/8" |
| Type | Single-position Commercial Or Residential Service |
| Voltage Rating | 600V |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 20" |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 101.3 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 50.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Size | Amps Rating | Voltage Rating | Mounting | Price | |
|---|---|---|---|---|---|---|---|
 |
M13 | - | - | - | - | €1,074.54 | |
|
M15 | - | - | - | - | €1,388.87 | |
 |
1006630ACH | - | - | - | - | €237.52 | |
|
USTS131B102CH | - | 20A | 600V | - | €2,228.31 | |
|
UBH4R2352TCH | - | 200A | 600V | - | €2,782.51 | |
 |
1004884ARHCH | - | 200A | 600V | - | €550.38 | |
 |
MSR1004T | - | 100A | 600V | - | €154.52 |
