EATON S811+U36N3S Soft Start, 600 VAC, 361 A Output Current, With Bypass, 100HP, 3 Phase, 208 VAC
Get it by Tuesday, Dec 23
10.00% off
€12,898.84 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Amperage Rating | 360A |
| Application | Constant And Variable Torque |
| Communication | Modbus RTU |
| Communication Port | Modbus Rtu |
| Control Voltage | 24V DC |
| Dc Current - Max | 120V DC |
| Depth | 7 4/25" |
| Enclosure Rating | NEMA 1 |
| For Use With | Three-Phase Motors |
| Frame Size | Frame U |
| Frequency | 50/60 Hz |
| Frequency Rating | 47-63 Hz |
| Function Type | Start Or Stop |
| Height | 12 18/25" |
| Hp @ 3 Phase - 208v Ac | 100 hp |
| Hp @ 3 Phase - 230v Ac | 125 hp |
| Hp @ 3 Phase - 240v Ac | 125 hp |
| Hp @ 3 Phase - 460v Ac | 250 hp |
| Hp @ 3 Phase - 480v Ac | 250 hp |
| Hp @ 3 Phase - 575v Ac | 300 hp |
| Input And Output Types | (3) 6A Relay Outputs, (9) Function Based Digital Inputs/Outputs, Analog Input |
| Input Voltage | 600V AC |
| Module Interface | Digital Interface Module |
| Nema Rating | Nema 0 |
| Notes | All Units Require A 24V DC Power Supply Found On Catalog Page V6-T1-85, Or Equivalent., S811+T_, S811+U_ And S811+V_ Units Require Lug Kits, S811+U50_ Unit Does Not Have IEC Certification. |
| Number Of Poles | 3 |
| Operating Temperature - Max | 50°C |
| Operating Temperature - Min | -30°C |
| Operating Voltage | 200-600V |
| Output Current | 361A |
| Output Power | 100 Hp @ 3 Phase, 200V Ac, 125 Hp @ 3 Phase, 240V Ac, 250 Hp @ 3 Phase, 480V Ac, 300 Hp @ 3 Phase, 575V Ac |
| Output Voltage | 600V AC |
| Overall Depth | 7.16" |
| Overall Height | 12.72" |
| Overall Width | 7.72" |
| Phase | Three |
| Power Supply | 24V |
| Protects | Motor Overload, Jam, Stall, Pole Over Temperature, Phase Loss, Phase Imbalance, Ability To Alarm Without Tripping For Critical Situations, Ability For Advance Communications For Critical Load Monitoring |
| Ramp Time | 0 sec. to 180 sec. |
| Start Type | Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available With Kick Start, Torque Control Or Current Limit |
| Starting Torque | 0% to 83% |
| Stop Time | 0 sec. to 60 sec. |
| Type | Soft Starter |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 7.73" |
| Wire Size | #4 AWG to 500 kcmil |
| With Bypass/no Bypass | With Bypass |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 32.31 |
| Ship length (cm) | 18.19 |
| Ship width (cm) | 19.63 |
| Country of Origin | US |
Product Variants
| Product | Model | Enclosure Rating | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 575v | Height | Depth | Ramp Time | Stop Time | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S811+R10N3S | NEMA 1 | - | - | - | 7 23/25" | 6 16/25" | 0 sec. to 180 sec. | 0 sec. to 60 sec. | €8,359.07 | |
 |

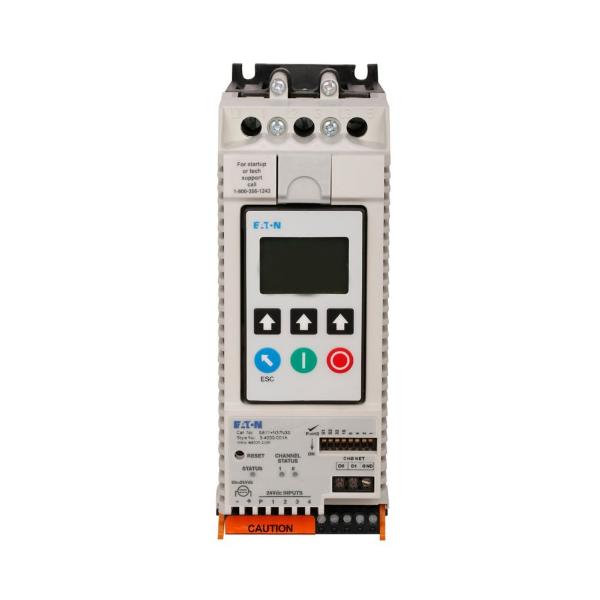

S811+N37N3S | NEMA 1 | - | - | - | 11 1/2" | 11" | 0 sec. to 180 sec. | 0 sec. to 60 sec. | €4,091.08 | |
|
S811+R13N3S | NEMA 1 | - | - | - | 7 23/25" | 6 16/25" | 0 sec. to 180 sec. | 0 sec. to 60 sec. | €14,096.73 | |
 |
S811+T18N3S | - | - | - | - | 12.71" | 6.47" | - | - | €15,065.14 | |
 |
S811+N66N3S | NEMA 1 | - | - | - | 7.37" | 6.45" | 0 sec. to 180 sec. | 0 sec. to 60 sec. | €7,629.42 | |
|
S811+T30V3S | NEMA 1 | - | - | - | 11.1" | 18 4/5" | 0 sec. to 360 sec. | 0 sec. to 120 sec. | €11,901.68 | |
|
S811+U50N3S | NEMA 1 | - | - | - | 12 1/2" | 19" | 0 sec. to 180 sec. | 0 sec. to 180 sec. | €18,123.39 |
