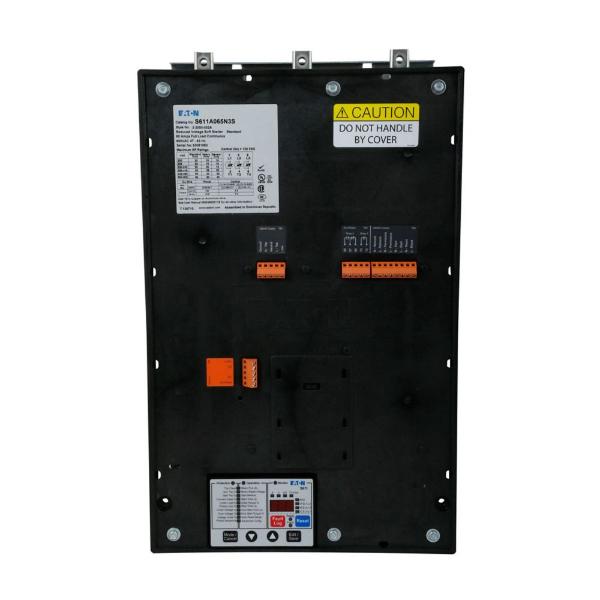

EATON S611A065P3S Soft Starter, Frame A, 65 A, 50 Hp, 480V, 32.5-65 Fl A, 130-600V, Pump Control
Get it by Thursday, Dec 18
€8,622.39 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Amps Rating | 65A |
| Circuit Breaker Type | FDC |
| Class | Class K5 Class J Class RK5 |
| Frame Size | A |
| Frequency | 47-63 Hz |
| Full Load Amps Range | 32.5-65A |
| Hp | 50 hp |
| Min. Operating Temp. | -20°C |
| Mounting | Vertical |
| Number Of Conductors | 1 |
| Number Of Slots | 2 |
| Operating Voltage | 130-600V |
| Options | Pump Control |
| Phase | 3 |
| Product Name | Eaton S811+/S801+ soft starter |
| Type | Pump Control |
| User Interface | LCD |
| Voltage Rating | 480V |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Wire Size | #14 AWG to 2/0 AWG |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 49.4 |
| Ship length (cm) | 19.41 |
| Ship width (cm) | 29.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps Rating | Wire Size | Phase | Voltage Rating | Height | Price | |
|---|---|---|---|---|---|---|---|---|
|
S611A065N3S | 65A | #14 AWG to 2/0 AWG | 3 | 480V | - | €8,732.86 | |
 |

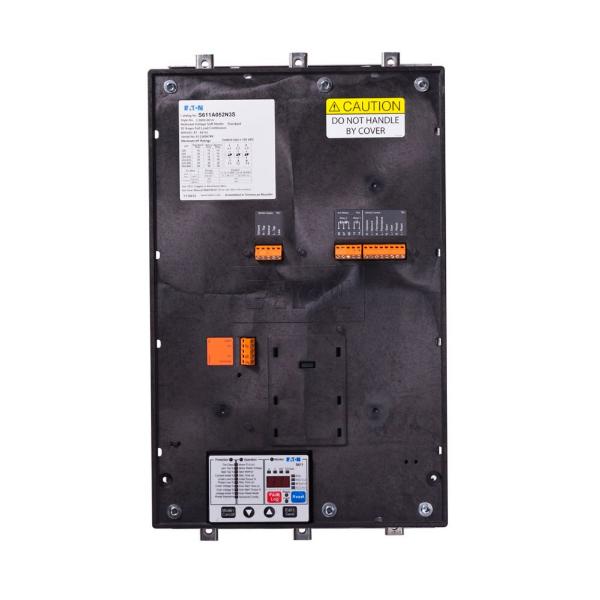

S611A052P3S | 52A | - | 3 | - | - | €11,624.03 | |
 |

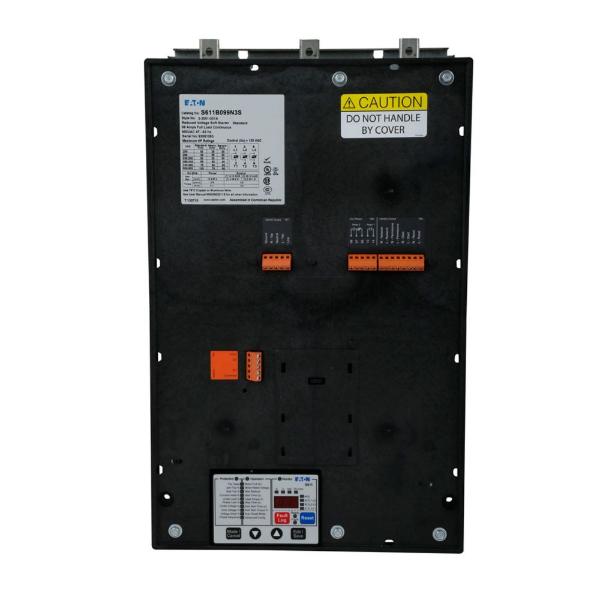

S611B099P3S | 99A | #14 AWG to 2/0 AWG | 3 | 480V | - | - | RFQ
|
|
S611B125P3S | 125A | #22 AWG to 12 AWG | 3 | 480V | - | €19,330.38 | |
 |
S611A077P3S | 77A | - | 3 | 480V | - | €14,210.91 | |
 |

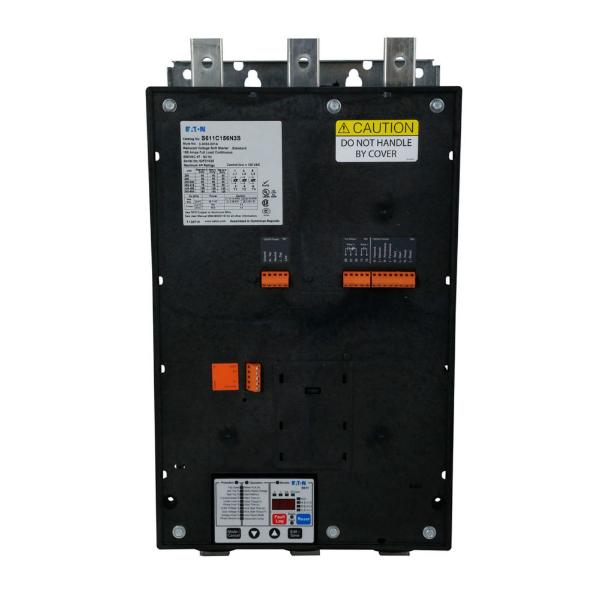

S611C156P3S | 156A | - | 3 | - | - | €13,819.96 | |
 |

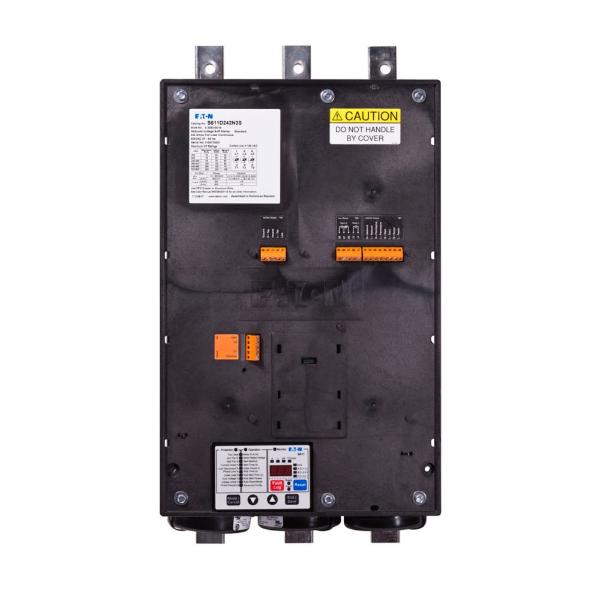

S611D242N3S | 242A | #22 AWG to 12 AWG | 3 | 480V | - | €17,576.59 |
