EATON S611A052N3S Soft Start, 600 VAC, 52 A Output Current, With Bypass, 15HP, 3 Phase, 208 VAC
Get it by Tuesday, Dec 23
10.00% off
€4,691.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor Starter |
| Amperage Rating | 52A |
| Application | Constant And Variable Torque |
| Circuit Breaker Type | FDC |
| Class | Class RK5 Class K5 Class J |
| Communication Port | Modbus Built In, Ethernet Ip, Profibus And Devicenet Available, Two Different Communication Ports Available |
| Control Voltage | 108-132V AC |
| Depth | 7 16/25" |
| Display | Digital |
| Enclosure Rating | NEMA 1 |
| Frame Size | Frame A |
| Frequency | 50/60 Hz |
| Full Load Current Range | 26-52A |
| Function Type | Start Or Stop |
| Height | 19.45" |
| Hp | 40 hp |
| Hp @ 3 Phase - 208v Ac | 15 hp |
| Hp @ 3 Phase - 230v Ac | 15 hp |
| Hp @ 3 Phase - 240v Ac | 15 hp |
| Hp @ 3 Phase - 460v Ac | 40 hp |
| Hp @ 3 Phase - 480v Ac | 40 hp |
| Hp @ 3 Phase - 575v Ac | 50 hp |
| Input And Output Types | 3 6A Relay Outputs |
| Input Voltage | 600V AC |
| Mounting Method | Vertical |
| Number Of Conductors | 1 |
| Number Of Slots | 2 |
| Operating Temperature - Max | 50°C |
| Operating Temperature - Min | -20°C |
| Operating Voltage | 130-600V |
| Output Current | 52A |
| Output Power | 15 Hp @ 3 Phase, 200V Ac, 15 Hp @ 3 Phase, 240V Ac, 40 Hp @ 3 Phase, 480V Ac, 50 Hp @ 3 Phase, 575V Ac |
| Output Voltage | 600V AC |
| Overall Depth | 8.57" |
| Overall Height | 21.01" |
| Overall Width | 11.58" |
| Phase | 3 |
| Protects | Advanced Motor Protection, Jam, Stall, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping For Critical Situations, Ability For Advance Communications For Critical Load Monitoring Is Required |
| Ramp Time | 0.5 sec. to 180 sec. |
| Start Type | Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available With Kick Start, Torque Control Or Current Limit |
| Starting Torque | 0% to 83% |
| Stop Time | 1 sec. to 180 sec. |
| Type | Soft Starter |
| User Interface | LCD |
| Voltage Rating | 480V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 11.58" |
| Wire Size | #14 AWG to 2/0 AWG |
| With Bypass/no Bypass | With Bypass |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 49.4 |
| Ship length (cm) | 19.41 |
| Ship width (cm) | 29.41 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Depth | Stop Time | Input Voltage | Control Voltage | Enclosure Rating | Output Voltage | Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
S611A077N3S | 15 2/5" | 7 16/25" | 1 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €6,610.98 | |
 |
S611B099N3S | 19.45" | 7.46" | 1 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €8,262.83 | |
 |
S611C156N3S | 8.57" | 21.01" | 1 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €10,156.01 | |
|
S611B125N3S | 19.45" | 7.46" | 1 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €9,916.47 | |
 |
S611E361N3S | 31.15" | 9.54" | 0 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €6,014.31 | |
 |

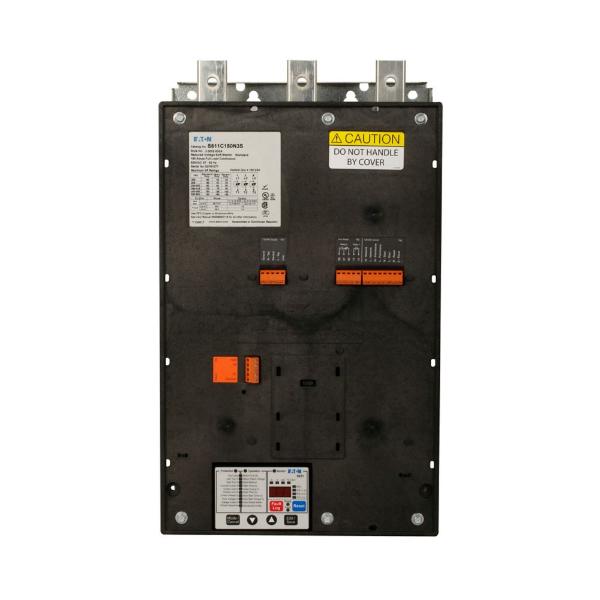

S611C180N3S | 8.57" | 21.01" | 0 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €4,559.99 | |
 |

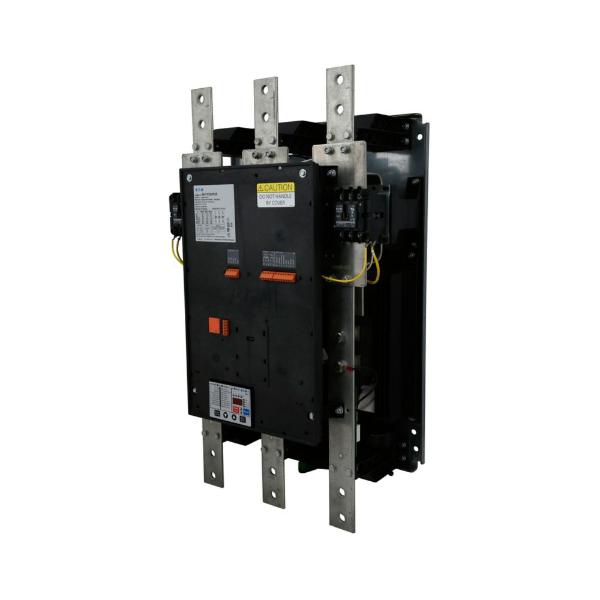

S611E302N3S | 31.15" | 9.54" | 0 sec. to 180 sec. | 600V AC | 108-132V AC | NEMA 1 | 600V AC | Constant And Variable Torque | €5,153.60 |
