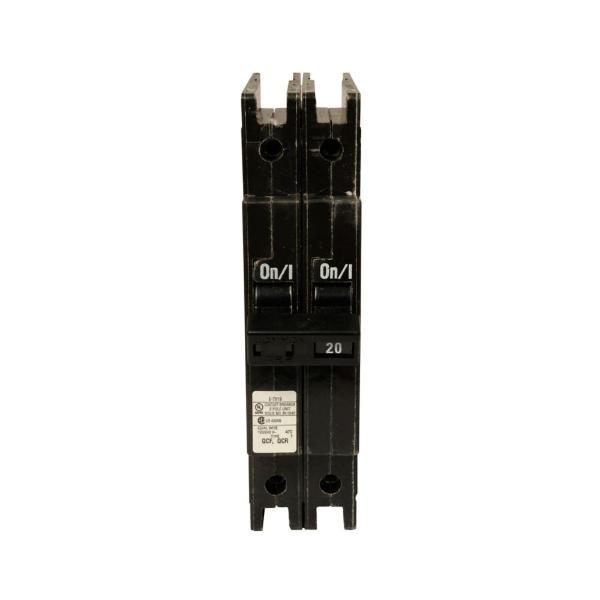

EATON QCF2020S Thermal-Magnetic Circuit Breaker, Type Qcf, 20 A, 10 Kaic, 2-Pole, 120/208/240 V
Get it by Friday, Aug 21
€666.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Amps | 20A |
| Circuit Breaker Type | QCF |
| Connection | Cable-in/cable-out |
| Features | 120/208/240V Shunt Trip |
| Height | 1 1/5" |
| Interrupt Rating | 10 kAIC |
| Length | 4 3/5" |
| Mounting Type | Front |
| No. Of Poles | 2 |
| Notes | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. |
| Options | Non-interchangeable |
| Shunt Trip | 120-240V |
| Trip Type | Thermal-magnetic |
| Type | Industrial Circuit Breaker |
| Width | 3.1" |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 11.68 |
| Ship width (cm) | 7.87 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Amps | No. Of Poles | Voltage | Circuit Breaker Type | Trip Type | Notes | Interrupt Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QCF1010 | 1 1/5" | 10A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €58.93 | |
 |
QCF1015 | 1 1/5" | 15A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Switching Duty Rated For Fluorescent Lighting Applications. | - | €58.93 | |
|
QCF1015T | 1 1/5" | 15A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided). Switching Duty Rated For Fluorescent Lighting Applications. | 10 kAIC | €68.75 | |
 |
QCF1020 | 1 1/5" | 20A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Switching Duty Rated For Fluorescent Lighting Applications. | 10 kAIC | €58.93 | |
|
QCF1020T | 1" | 20A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided). Switching Duty Rated For Fluorescent Lighting Applications. | 10 kAIC | €68.75 | |
 |
QCF1030 | 1" | 30A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €58.93 | |
|
QCF1030T | 1 1/5" | 30A | 1 | 120/240V | QCF | Non Interchangeable | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €68.75 |
