EATON QCF Series Thermal Magnetic Circuit Breakers
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1| Style | Model | Height | Amps | No. Of Poles | Voltage | Circuit Breaker Type | Trip Type | Notes | Interrupt Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | QCF2050X75 | 0.1" | 50A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €234.71 | |
| B | QCF2025H | 1 1/4" | 25A | 2 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €831.76 | |
| C | QCF2015H | 1 1/4" | 15A | 2 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €371.35 | |
| D | QCF1010T | 1 1/5" | 10A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | - | €131.83 | |
| E | QCF2020S | 1 1/5" | 20A | 2 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €666.73 | |
| F | QCF1015T | 1 1/5" | 15A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided). Switching Duty Rated For Fluorescent Lighting Applications. | 10 kAIC | €68.75 | |
| G | QCF2060 | 1 1/5" | 60A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €114.55 | |
| H | QCF1020 | 1 1/5" | 20A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Switching Duty Rated For Fluorescent Lighting Applications. | 10 kAIC | €58.93 | |
| I | QCF1030T | 1 1/5" | 30A | 1 | 120/240V | QCF | Non Interchangeable | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €68.75 | |
| J | QCF1010 | 1 1/5" | 10A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €58.93 | |
| K | QCF1040 | 1 1/5" | 40A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €58.93 | |
| L | QCF1050 | 1 1/5" | 50A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €58.93 | |
| M | QCF1060 | 1 1/5" | 60A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Does Not Have 60/75 Degree C Cu/Al Wire Which Requires Cu Only Conductor. | 10 kAIC | €68.12 | |
| N | QCF2010 | 1 1/5" | 10A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €105.01 | |
| O | QCF2015 | 1 1/5" | 15A | 2 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €114.55 | |
| O | QCF2015T | 1 1/5" | 15A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €133.36 | |
| P | QCF2020 | 1 1/5" | 20A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €114.55 | |
| Q | QCF1015S | 1 1/5" | 15A | 1 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €589.78 | |
| D | QCF1010S | 1 1/5" | 10A | 1 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €1,213.31 | |
| R | QCF1040S | 1 1/5" | 40A | 1 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €1,245.43 | |
| S | QCF2025 | 1 1/5" | 25A | 2 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €114.55 | |
| T | QCF1025 | 1 1/5" | 25A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €133.25 | |
| U | QCF2030S | 1 1/5" | 30A | 2 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €700.62 | |
| A | QCF2050S | 1 1/5" | 50A | 2 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €666.73 | |
| V | QCF2050 | 1 1/5" | 50A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €114.55 | |
| W | QCF2040 | 1 1/5" | 40A | 2 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €114.55 | |
| X | QCF1020S | 1 1/5" | 20A | 1 | - | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €589.78 | |
| Y | QCF2060S | 1 1/5" | 60A | 2 | 120/240V | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | - | €1,371.65 | |
| Z | QCF2030T | 1 1/5" | 30A | 2 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €133.36 | |
| F | QCF1015 | 1 1/5" | 15A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Switching Duty Rated For Fluorescent Lighting Applications. | - | €58.93 | |
| A1 | QCF1030S | 1 1/5" | 30A | 1 | 120/240V | QCF | Thermal-magnetic | Requires One Extra Pole On Right Side. Draws 2.6A at 120V, Draws 11A at 24V DC. | 10 kAIC | €589.78 | |
| P | QCF2020T | 1" | 20A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €133.36 | |
| B1 | QCF2010T | 1" | 10A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | - | €253.88 | |
| C1 | QCFH2015 | 1" | 15A | - | 120/240V | QCFH | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 22 kAIC | €682.43 | |
| I | QCF1030 | 1" | 30A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €58.93 | |
| H | QCF1020T | 1" | 20A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided). Switching Duty Rated For Fluorescent Lighting Applications. | 10 kAIC | €68.75 | |
| C1 | QCFH2020 | 1" | 20A | 2 | - | QCFH | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 22 kAIC | €317.26 | |
| X | QCF1020X150 | 1" | 20A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €106.35 | |
| Z | QCF2030 | 1.1" | 30A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €114.55 | |
| U | QCF2030H | 1.1" | 30A | 2 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €831.76 | |
| D1 | QCF2035 | 1.1" | 35A | 2 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €133.36 | |
| U | QCF2030HT | 1.1" | 30A | 2 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | - | €464.94 | |
| C1 | QCFH1015 | 1.1" | 15A | 1 | - | QCFH | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Switching Duty Rated For Fluorescent Lighting Applications. | 22 kAIC | €201.63 | |
| A1 | QCF1030X150 | 1/2" | 30A | 1 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €106.35 | |
| C1 | QCF3015H | 2 1/5" | 15A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €476.40 | |
| C1 | QCF3025H | 2 1/5" | 25A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €541.92 | |
| C1 | QCF3015HT | 2 1/5" | 15A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €852.97 | |
| C1 | QCFPC3020H | 2" | 20A | 3 | 240V | QCF | Thermal-magnetic | - | - | €530.50 | |
| C1 | QCFPC2020 | 2" | 20A | 2 | 120/240V | QCF | Thermal-magnetic | - | - | €228.83 | |
| C1 | QCF3030H | 2" | 30A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €231.64 | |
| C1 | QCFPC3030H | 2" | 30A | 3 | 120/240V | QCF | Thermal-magnetic | - | 10 kAIC | €551.29 | |
| C1 | QCF3030HT | 2.1" | 30A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €1,000.01 | |
| C1 | QCF3025HT | 2.3" | 25A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €1,139.90 | |

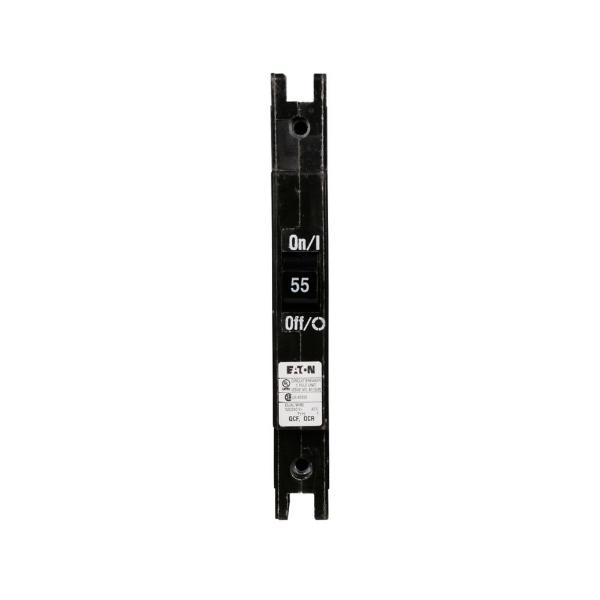

| E1 | QCF1055 | 3 4/5" | 55A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €81.68 | |
| Y | QCF2055 | 3 4/5" | 55A | 2 | - | QCF | Thermal-magnetic | - | 10 kAIC | €188.00 | |
| F1 | QCF1045 | 3 4/5" | 45A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | - | €81.68 | |
| C | QCF2015HT | 3 4/5" | 15A | 2 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €515.93 | |
| G1 | QCF2045 | 3 4/5" | 45A | 2 | - | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €133.36 | |
| H1 | QCF1035 | 3 4/5" | 35A | 1 | 120/240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €85.82 | |
| C1 | QCF3020H | 3" | 20A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. | 10 kAIC | €460.79 | |
| C1 | QCF3020HT | 3" | 20A | 3 | 240V | QCF | Thermal-magnetic | Standard Breaker Terminals Are Box Type Lugs. Suitable For Line And Load Side Ring Terminal Connection (#10-32 Plus/Minus Terminal Screw Provided) | 10 kAIC | €810.32 |
QCF Series Thermal Magnetic Circuit Breakers
Eaton QCF Series thermal magnetic circuit breakers combine thermal and magnetic trip mechanisms for quick response against overcurrent conditions enabling the protection of electrical equipment used in industrial and commercial applications. They come in black cases for enhanced visibility and have two threaded steel inserts for front mounting with #6–32 steel screws. These CSA and UL-approved MCCBs feature three position handles (ON, Tripped and OFF) for clear indication of the status and fault identification. They allow cable-in / cable-out wiring configuration for direct connection to MCCB, facilitating easy installation.
