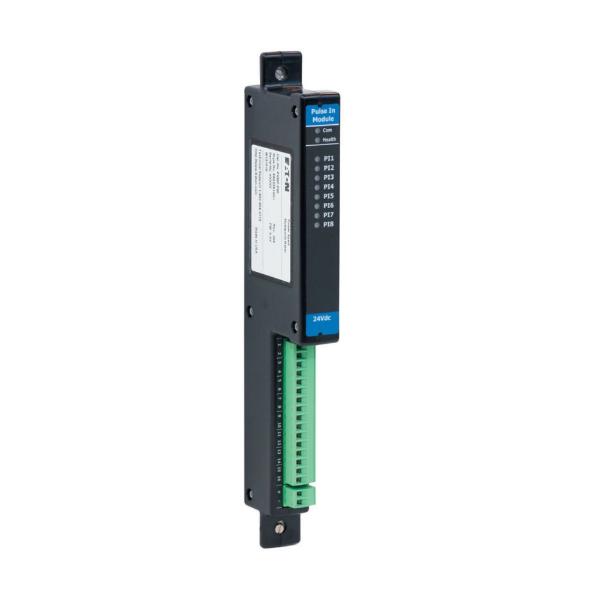

EATON PXMP-PIM Self-Enclosed Multi-Point Meter Pulse Input Module, 24 VDC, 0.01 A
Get it by Thursday, Dec 18
€1,705.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Input Module |
| %thd - Current And Voltage | None |
| Ansi % Revenue Accuracy | C12.20 (0.5) |
| Current Sensor Input | 10 mA |
| For Use With | PXMP-MB, PXMP-MB-AB, PXMP-PIM |
| Height | 1" |
| I/o Capability | Prog. Pulse Output --Wh, Varh, Vah |
| Impulse Transient Capture | None |
| Individual Harmonics Magnitude | None |
| Length | 11" |
| Logging | Data Logging |
| Memory | None |
| Notes | TVS Diode Clamped, Note, Opto Creates 2.2V Drop Sourced By 2.2 K Ohms. Isolation Dependent On External Source. To PE. Group Isolated, All Circuits Common To 24V Ext. Source. |
| Type | Pulse Input Module |
| Voltage Rating | 24V DC |
| Warranty | 1 yr. |
| Waveform Capture Sampling Rate | None |
| Weight | 0.3 lbs. |
| Width | 2.9" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 27.94 |
| Ship width (cm) | 7.37 |
| Country of Origin | US |
