EATON MD275E70 Motor Drive Isolation Transformer, Dt-3, Three-Phase, Primary Voltage: 480V | BH4WVZ

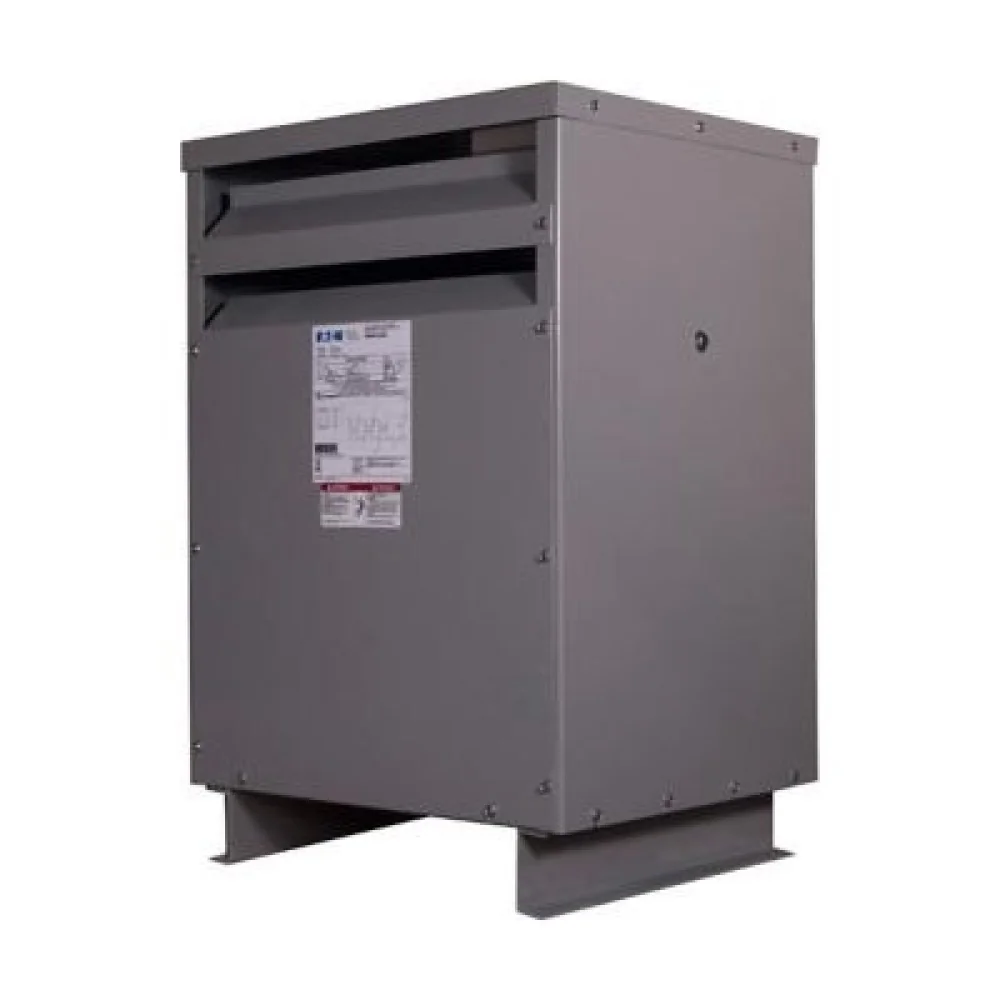

EATON MD275E70 Motor Drive Isolation Transformer, 3-Phase, Primary 480V, Secondary 380Y/220V, 275 KVA

Item: BH4WVZModel: MD275E70
Check Availability
In Stock
VA Rating

Get it by Tuesday, May 19

€25,721.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Transformer
Coil Material Aluminum
Design DT-3
Frame 918A
Frequency Rating 60 Hz
Height 62.18"
Kva Rating 275 kVA
Length 30 17/25"
Nema Enclosure Rating NEMA 2
Phase 3
Primary Voltage 480V
Secondary Voltage 380Y/220V
Tap Size 1 At +5% FCAN, 1 At -5% FCBN
Temp. Rise 150°C
Type Motor Drive Isolation Transformer
Weathershield WS34
Width 31 11/25"
Wiring Connection 318H

Shipping Info:

Ship weight (kg) 690.75
Ship height (cm)157.94
Ship length (cm)77.93
Ship width (cm)79.86

Product Variants

ProductModelHeightSecondary VoltagePrimary VoltageMaterialPrice
EATON MD075E79 Motor Drive Isolation Ventilated Transformer 7.5 Kva Drive Isol 3Ph 480 Delta-480Y/277 150 | BH4WLT MD075E790.001"---€3,600.37
EATON MD075E67ES Drive Isolation Transformer, Ventilated, Dry Type Distribution, Dt-3, Three-Phase | BH4WLW MD075E67ES30"380Y/220V380V-€3,962.61
EATON MD075E85 Drive Isolation Transformer, Ventilated, Dry Type Distribution, Dt-3, Three-Phase | BH4WMA MD075E8530"230Y/133V208V-€3,600.37
EATON MD075E79F Drive Isolation Transformer, Ventilated, Dry Type Distribution, Dt-3, Three-Phase | BH4WMC MD075E79F30"480Y/277V480V-€4,685.39
EATON MD075E88 Drive Isolation Transformer, Ventilated, Dry Type Distribution, Dt-3, Three-Phase | BH4WMD MD075E8830"230Y/133V230V-€3,600.37
EATON MD075E92BES Drive Isolation Transformer, Ventilated, Dry Type Distribution, Dt-3, Three-Phase | BH4WME MD075E92BES30"460Y/266V460V-€6,282.20
EATON MD075E83FES Drive Isolation Transformer, Ventilated, Dry Type Distribution, Dt-3, Three-Phase | BH4WMG MD075E83FES30"208Y/120V208V-€5,050.96
