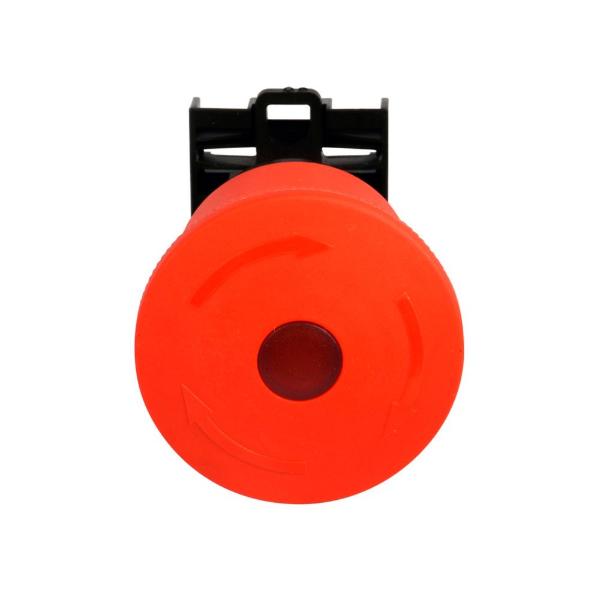

EATON M22-PVLT45P Emergency Stop Push Button, 22 mm Mounting Size, Non-Metallic, Maintained
Item: BH4TRXModel: M22-PVLT45PCross Ref: 30XF66
7 In Stock
Ships within 2 days via
10.00% off
€171.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Emergency Stop |
| Action | Maintained |
| Actuator Type | 45 mm Pushbutton |
| Bezel Material | Silver |
| Button Color | Red |
| Features | Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 2 1/2" |
| Illumination | Illuminated |
| Ip Rating | IP67, IP69K |
| Legend | Twist Arrow |
| Length | 3" |
| Maintained Action Release | Twist |
| Manufacturer Warranty Length | 1 yr. |
| Mushroom Head Diameter | 45 mm |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 1 |
| Number Of Operators | 1 |
| Operating Cycles | Light: 100,000, Button: 100,000 |
| Operating Mode | Twist-To-Release |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 3" |
| Overall Height | 2 1/2" |
| Overall Width | 3" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Emergency Stop Push Buttons |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Emergency Stop |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Type | Height | Bezel | Ip Rating | Head Material | Bezel Material | Lamp Module Type | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-DGLH-R | Pushbutton | 1 1/2" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | €50.93 | |
 |
M22-DGLH-G | Pushbutton | 4" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | €44.49 | |
 |
M22-DGLH-Y | Pushbutton | 1 1/2" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | €49.60 | |
 |
M22-DGLH-B | Pushbutton | 1 1/2" | Silver Guarded | IP67, IP69K | - | - | - | - | €48.90 | |
 |
M22-DGL-X | Pushbutton | 5" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | €33.75 | |
 |
M22-DGLH-W | Pushbutton | 1" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | €45.78 | |
 |
M22-DL-G | 22.5 mm Modular | 0.39" | Silver | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | €21.19 |
