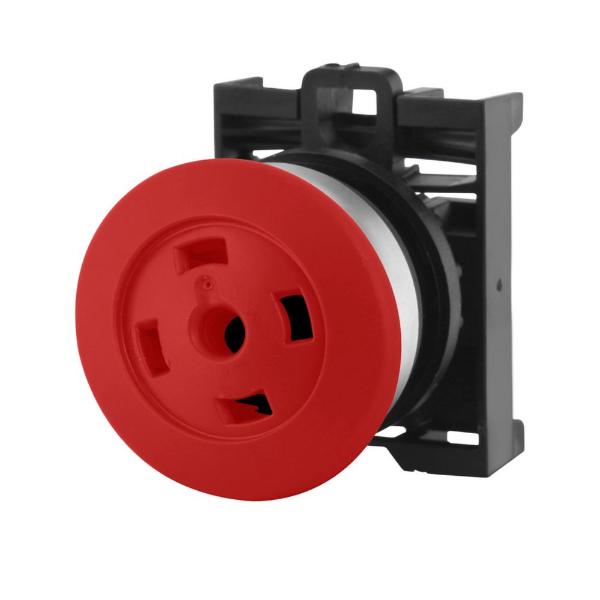

EATON M22-DP-R-X Insertless Mushroom Pushbutton Operator, 22.5 mm, Non-Illuminated, Silver, Red, IP67
Get it by Tuesday, Sep 1
€39.37 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Push Button Operator |
| Actuator Color | Red |
| Actuator Function | Momentary |
| Actuator Type | Mushroom, insertless |
| Bezel | Silver |
| Button Color | Red |
| Height | 1 1/2" |
| Illumination | Non-illuminated |
| Ip Rating | IP67, IP69K |
| Length | 7" |
| Nema Enclosure Rating | NEMA 13 NEMA 4X |
| Notes | 35 Mm Diameter Mushroom Head Button. |
| Operating Cycles | 5 million |
| Operating Mode | Momentary |
| Type | Push Button |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Bezel | Illumination | Actuator Function | Notes | Nema Enclosure Rating | Ip Rating | Operating Cycles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-D4-S-X7 | 2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €336.83 | |
 |
M22-D4-S | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €324.48 | |
|
M22-D4-S-ETCH | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | - | - | - | €288.13 | |
 |
M22-D-G-B100 | 14" | - | - | - | - | - | - | - | €1,497.35 | |
 |
M22-D-G-GB1 | 4" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 4X NEMA 13 | - | 5 million | €28.27 | |
 |
M22-DG-G | 4" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | - | 5 million | €44.98 | |
 |
M22-DGH-R | 1 1/2" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | 5 million | €43.77 |
