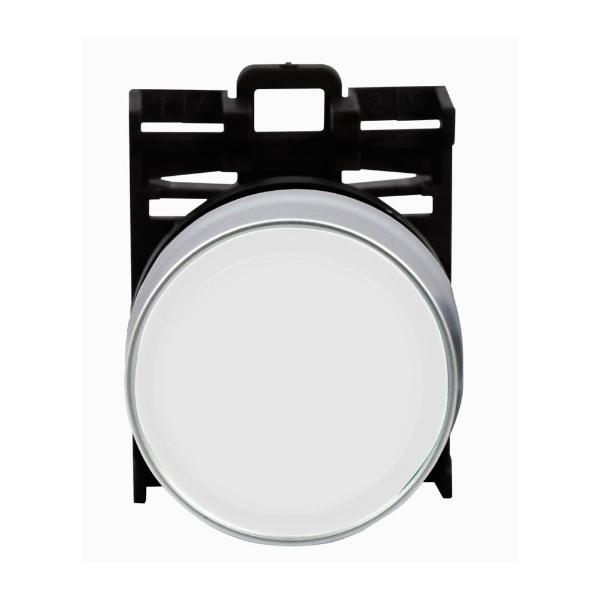

EATON M22-DGH-W Extended Push Button, 22 mm Mounting Size, Non-Metallic, Momentary
Item: BH4RFEModel: M22-DGH-WCross Ref: 60JN01
7 In Stock
Ships within 2 days via
10.00% off
€37.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Action | Momentary |
| Actuator Function | Momentary |
| Actuator Type | Extended with guard, button |
| Bezel | Silver Guarded |
| Bezel Material | Silver |
| Button Color | White |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | White |
| Height | 1 1/2" |
| Illumination | Non-illuminated |
| Ip Rating | IP67, IP69K |
| Length | 1 1/2" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Cycles | 5 million |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 2.26" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1 1/2" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 3.81 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Illumination | Ip Rating | Terminal Connection | Mounting Type | Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
M22-D4-S-X7 | 2" | Non-illuminated | IP67, IP69K | Screw Clamp | - | - | €336.83 | |
 |
M22-D4-S | 1 1/2" | Non-illuminated | IP67, IP69K | Screw Clamp | - | - | €324.48 | |
|
M22-D4-S-ETCH | 1 1/2" | Non-illuminated | - | - | - | - | €288.13 | |
 |
M22-D-G-B100 | 14" | - | - | - | - | - | €1,497.35 | |
 |
M22-D-G-GB1 | 4" | Non-illuminated | - | Screw Clamp | Flush | - | €28.27 | |
 |
M22-DG-G | 4" | Non-illuminated | - | Screw Clamp | - | - | €44.98 | |
 |
M22-DGH-R | 1 1/2" | Non-illuminated | IP67, IP69K | Screw Clamp | - | - | €43.77 |
