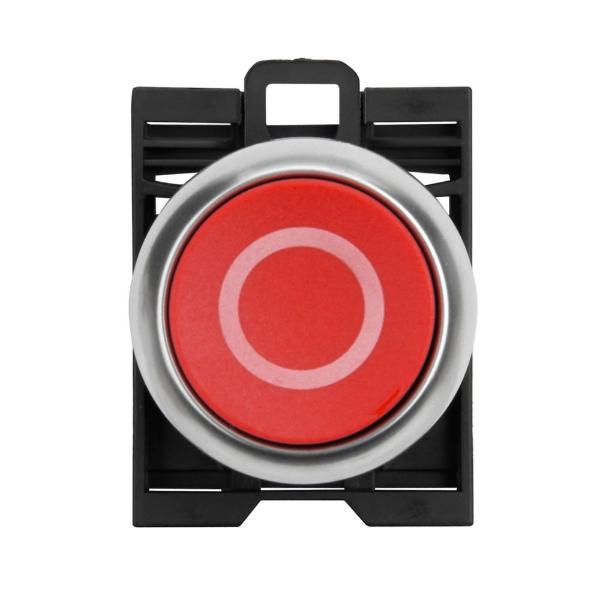

EATON M22-D-R-X0 Modular Pushbutton, 22.5 mm, Red Actuator, Ip67, Ip69K, Non-Illuminated, Flush Mounting
Get it by Thursday, Feb 26
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€23.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pushbutton |
| Action | Momentary |
| Actuator Color | Red |
| Actuator Function | Momentary |
| Actuator Type | Button, Flush |
| Bezel Color | Silver |
| Bezel Material | Silver |
| Button Color | Red |
| Etching Code | X0 |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 1 1/2" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Legend | O |
| Length | 7" |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Cycles | 5 Million |
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 3.81 |
| Ship length (cm) | 17.78 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Model | Ip Rating | Height | Number Of Operators | Head Material | Contact Form | Nema Rating | Size | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| M22M-WRLK3-2-Y | - | 1 1/2" | - | - | - | - | - | - | €47.38 | |
| M22S-DRL-B-K10-B | - | 1 1/2" | - | - | - | - | - | - | €100.88 | |
| M22S-DRL-G-K10-G | - | 1 1/2" | - | - | - | - | - | - | - | RFQ
|
| M22S-DRL-R-K10-230R | - | 1 1/2" | - | - | - | - | - | - | - | RFQ
|
| M22S-WK3-B50 | IP66 | 1.06" | - | - | - | - | - | - | €1,805.79 | |
| M22S-WK3-K20 | - | 1" | - | - | - | - | - | - | €62.97 | |
| M22S-WK-B50 | IP66 | 1.06" | - | - | - | - | - | - | €1,805.79 |
