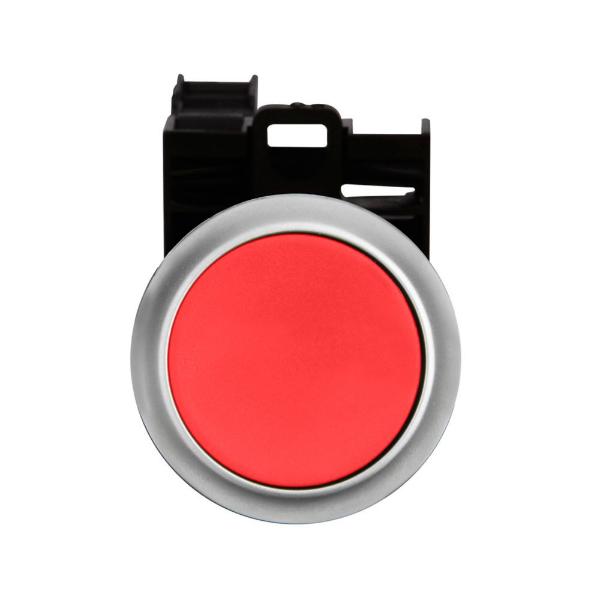

EATON M22-D-R-K01 Flush Push Button Operator, Non-Illuminated, Flush Profile, Non-Metallic, 22 mm, Red
Item: BH4RLPModel: M22-D-R-K01Cross Ref: 60JP06
7 In Stock
Ships within 2 days via
5.00% off
€46.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Push Button Operator |
| Ac Contact Rating | 6A @ 240V |
| Action | Momentary |
| Actuator Color | Red |
| Actuator Function | Momentary |
| Actuator Type | Button, flush |
| Bezel | Silver |
| Button Color | Red |
| Contact Configuration | 1 NC |
| Dc Contact Rating | 3A @ 24V |
| Display Qty | 1 |
| Features | Field Conversion From Momentary To Maintained Can Be Done, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 1" |
| Illumination | Non-illuminated |
| Length | 2" |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| No. Of Operators | 1 |
| Notes | Positively Driven Contact Blocks. |
| Operating Mode | Momentary |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.26" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Terminal Connection | Spring Cage |
| Type | Push Button |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Bezel | Illumination | Actuator Function | Notes | Nema Enclosure Rating | Ip Rating | Operating Cycles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-D4-S-X7 | 2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €336.83 | |
 |
M22-D4-S | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | - | €324.48 | |
|
M22-D4-S-ETCH | 1 1/2" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library. | - | - | - | €288.13 | |
 |
M22-D-G-B100 | 14" | - | - | - | - | - | - | - | €1,497.35 | |
 |
M22-D-G-GB1 | 4" | Silver | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 4X NEMA 13 | - | 5 million | €28.27 | |
 |
M22-DG-G | 4" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | - | - | 5 million | €44.98 | |
 |
M22-DGH-R | 1 1/2" | Silver Guarded | Non-illuminated | Momentary | Includes Contact Block Mounting Adapter. | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 | IP67, IP69K | 5 million | €43.77 |
