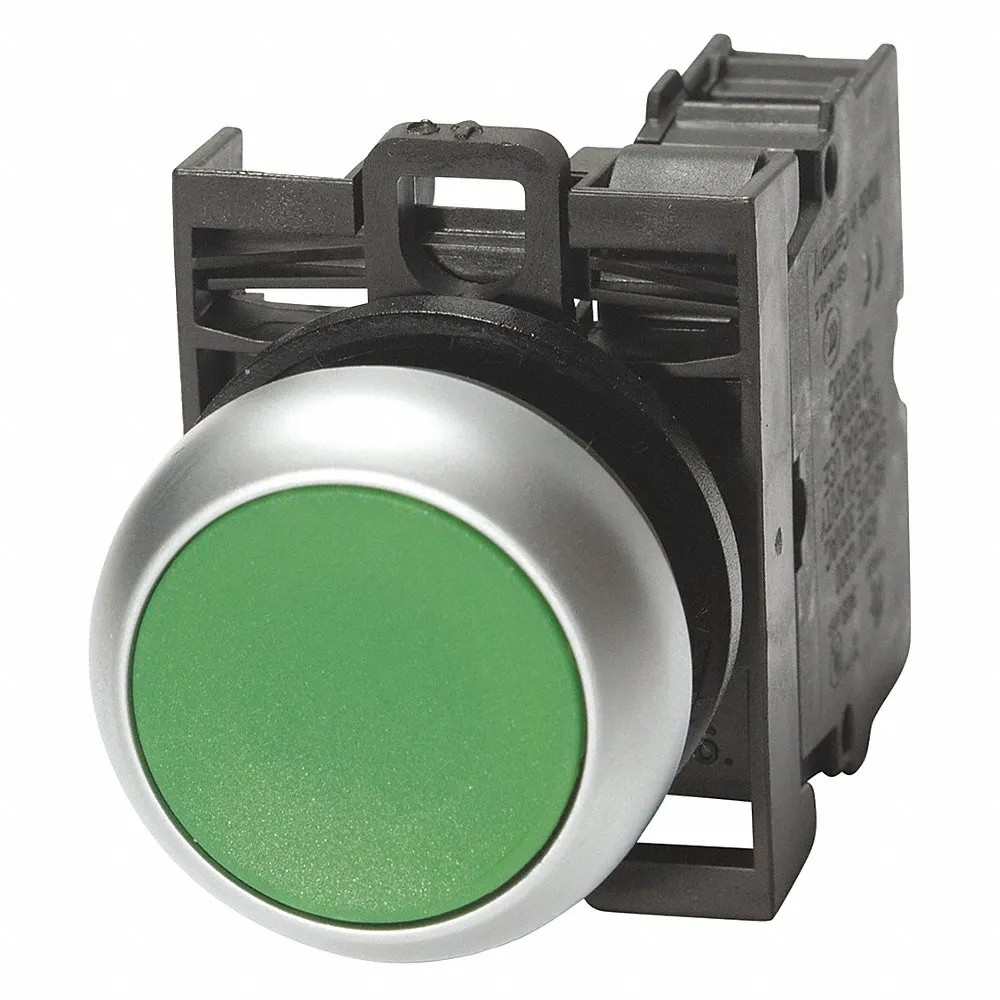

EATON M22-D-G-K10 Modular Pushbutton, 22.5 mm, Green Actuator, Silver Bezel, 1No, Non-Illuminated
Item: BH4REVModel: M22-D-G-K10Cross Ref: 60JN97
7 In Stock
Ships within 2 days via
5.00% off
€42.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Ac Contact Rating | 6A @ 240V |
| Action | Momentary |
| Actuator Color | Green |
| Actuator Function | Momentary |
| Actuator Type | Button, Flush |
| Bezel Color | Silver |
| Button Color | Green |
| Contact Configuration | 1 NO |
| Dc Contact Rating | 3A @ 24V |
| Display Qty | 1 |
| Features | Field Conversion From Momentary To Maintained Can Be Done, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Green |
| Height | 1" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 2" |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| No. Of Operators | 1 |
| Operating Cycles | 5 Million |
| Operating Mode | Momentary |
| Operator Illumination | Non Illuminated |
| Operator Material | Plastic |
| Overall Depth | 2.26" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Dia. | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Spring Cage |
| Type | Push Button |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 5.08 |
| Country of Origin | DE |
Product Variants
| Product | Model | Height | Bezel Color | Ip Rating | Illumination | Bezel | Contact Configuration | No. Of Positions | Operating Cycles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M22-DDLF-WS-ETCH | 13/25" | Silver | - | Illuminated | - | - | - | Light: 100,000, Button: 200,000 | €62.86 | |
 |
M22-DDLF-GR-ETCH | 13/25" | Silver | IP66 | Illuminated | - | - | - | Light: 100,000, Button: 200,000 | €65.57 | |
|
M22-DDL-GR | 13/25" | Silver | IP66 | Illuminated | - | - | - | - | €57.22 | |
 |
M22-DDLF-GR-X1-X0 | 13/25" | Silver | IP66 | Illuminated | - | - | - | Light: 100,000, Button: 200,000 | €74.18 | |
 |
M22-D-B | 1" | Silver | IP67, IP69K | Non-Illuminated | - | - | - | 5 Million | €22.21 | |
|
M22-DDLF-WS | 13/25" | Silver | - | Illuminated | - | - | - | Light: 100,000, Button: 200,000 | €53.19 | |
|
M22-DDLF-GR | 13/25" | Silver | IP66 | Illuminated | - | - | - | Light: 100,000, Button: 200,000 | €58.91 |
