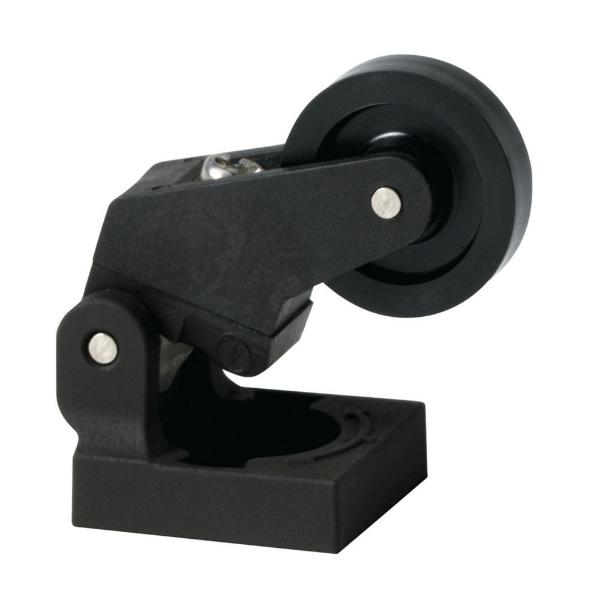

EATON LS-XP Limit Switch Head, Vertical, Push Roller Plunger Actuator
Item: BH4QLBModel: LS-XPCross Ref: 49A907
7 In Stock
Ships within 2 days via
10.00% off
€16.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Action | Momentary |
| Actuator Location | Top |
| Actuator Style | Push Roller Plunger |
| Arm Length - Maximum | 0.35" |
| Arm/operator Length | 0.35" |
| Compatible With Brand | Eaton |
| Compatible With Grainger Part Number | 49A896, 49A897, 49A898, 49A899, 49A901, 49A902, 49A905, 49A906 |
| Compatible With Manufacturer Model Number | LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A |
| Compatible With Series | Ls Titan |
| Differential Travel | 0.24" |
| Directional Movement | Linear |
| Display Qty | 1 |
| Height | 1.01" |
| Includes Actuator | Actuator Included |
| Ip Rating | IP66, IP67 |
| Length | 0.94" |
| Manufacturer Warranty Length | 1 yr. |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 4X, NEMA 6, NEMA 12, NEMA 13 |
| Operating Force | 8N |
| Operating Torque | 8.88 lbs.-in. |
| Overall Depth | 0.94" |
| Overall Height | 1.01" |
| Overall Width | 0.98" |
| Overtravel | 0.22" |
| Plunger Adjustability | Fixed |
| Pretravel | 0.002" |
| Reset Travel | 3/25" |
| Roller Adjustability | Fixed |
| Roller Diameter | 0.35" |
| Roller Material | Nylon |
| Roller Position | Top |
| Roller Width | 0.1" |
| Series | LS Series |
| Switch Type | Top push roller Operator only |
| Total Travel | 0.24" |
| Type | LS-Titan |
| Warranty | 1 yr. |
| Width | 0.98" |
Shipping Info:
| Ship height (cm) | 2.57 |
| Ship length (cm) | 2.39 |
| Ship width (cm) | 2.49 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Actuator Style | Contact Form | Ac Contact Rating | Electrical Connection | Mounting Type | Height | Operating Force | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LS-11S-S | - | - | - | - | - | - | 4 24/25" | - | €128.02 | |
 |
LS-11 | - | - | - | - | - | - | 2.99" | - | €93.76 | |
|
LSE-02-LA | - | - | - | - | - | - | 3.86" | - | €261.98 | |
 |
LS-20 | - | - | - | - | - | - | 2.99" | - | €114.12 | |
|
LSE-02-RLA40R | - | - | - | - | - | - | 4.71" | - | - | RFQ
|
 |
LS-11-ZB | - | - | - | - | - | - | 1.18" | - | €503.05 | |
 |
LS4-S11-1-I-ZB | IP65 | - | 1NO/1NC | 6A @ 230V | - | Full Size DIN Rail | 1.57" | - | €708.96 |
