EATON JD3200 Molded Case Circuit Breaker, J-Frame, Jd Type, 3-Pole, 200 A, 600 Vac, Line And Load
Item: AG8QBLModel: JD3200Cross Ref: 46MY06
7 In Stock
Ships within 2 days via
10.00% off
€3,036.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 200A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 250V AC |
| Depth | 4.06" |
| For Use With | Allen Bradley Mcc, Eaton Mcc Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Frame Size | 250A, J |
| Height | 4.13" |
| High Amp Trip Setting | 250A |
| Instantaneous Trip | Fixed |
| Length | 4.06" |
| Low Amp Trip Setting | 70A |
| Max. Air Rating | 65 kA At 240V AC |
| Max. Operating Temp. | 158°F |
| Max. Wire Size | 350 mcm |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 4 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | JD Series |
| Terminal Connection | Line/Load Lug |
| Trip Type | Thermal Magnetic |
| Voltage Type | AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 4.13" |
Shipping Info:
| Ship weight (kg) | 4.3 |
| Ship height (cm) | 10.49 |
| Ship length (cm) | 10.31 |
| Ship width (cm) | 10.49 |
| Country of Origin | US |
Product Variants
| Product | Model | Circuit Breaker Type | Number Of Poles | Frame Size | Amps | Ac Voltage Rating | Phase Connection | Min. Wire Size | Max. Wire Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

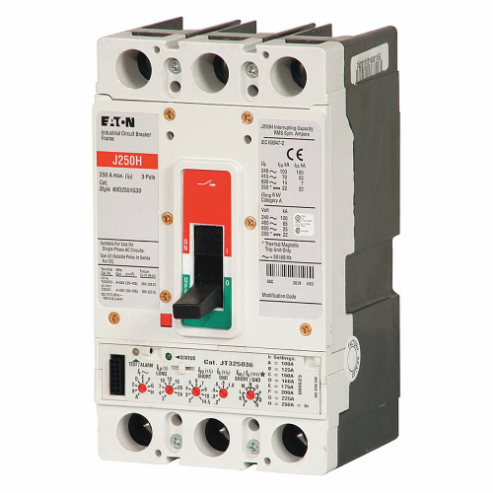

JD3150 | Standard | 3 | 250A, J | 150A | 600V AC | ABC | 4 AWG | 350 mcm | €7,480.21 | |
 |
JD3175 | Standard | 3 | 250A, J | 175A | 600V AC | ABC | 4 AWG | 350 mcm | €7,134.54 | |
|
JD3225 | Standard | 3 | 250A, J | 225A | 600V AC | ABC | 4 AWG | 350 mcm | €3,374.32 | |
|
JD3250 | Standard | 3 | 250A, J | 250A | 600V AC | ABC | 4 AWG | 350 mcm | €7,999.71 | |
 |
HKD2300I | - | - | - | - | - | - | - | - | - | RFQ
|
|
HKD2400I | - | - | - | - | - | - | - | - | - | RFQ
|
|
HKD2350I | - | - | - | - | - | - | - | - | - | RFQ
|
