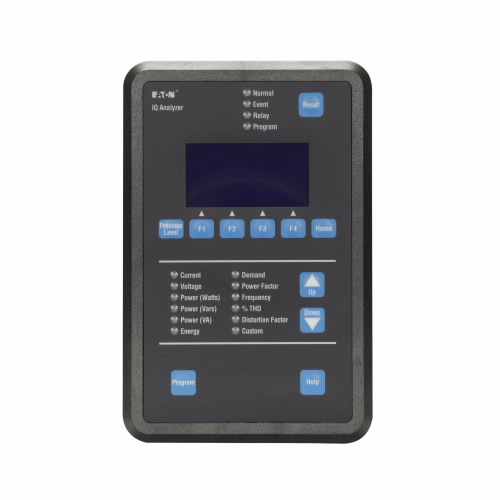

EATON IQA6630 Power And Harmonics Analyzer
Get it by Monday, Dec 22
€32,961.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Power and Harmonics Analyzer |
| %thd - Amps And Voltage | To 50th |
| Ansi % Revenue Accuracy | C12.20 (0.2) |
| Communications | INCOM Modbus RTU (RS-485) Graphic Display (Local/Remote) |
| Height | 8 1/2" |
| I/o Capability | Programmable Relay Outputs Analog Output Programmable Discrete Inputs Prog. Pulse Output --Wh, Varh, Vah KYZ output Load Shedding Synchronize Demand Window Pulse Input Voltage Disturbance Trip Analog Input |
| Individual Harmonics Magnitude | To 50th |
| Length | 13" |
| Logging | Event Log Data Logging Time/Date Stamp |
| Memory | 90 kb |
| Notes | 3-Phase Power Module With Waveform Display And Sub-Cycle Voltage Distribution Capture |
| Power Quality Analysis | K-Factor ITIC Performance Curve View Harmonic Spectrum At Device Crest Factor |
| Type | IQ Analyzer 6630 |
| Warranty | 1 yr. |
| Waveform Analysis | Voltage Disturbance Wave Capture Trigger Waveform Capture On Threshold/Input |
| Waveform Capture Sampling Rate | 128/cycle |
| Width | 11.05" |
Shipping Info:
| Ship weight (kg) | 1.8 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 33.02 |
| Ship width (cm) | 28.07 |
| Country of Origin | US |
