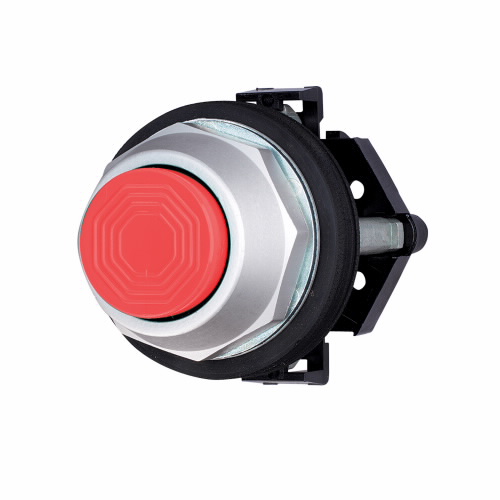

EATON HT8ABGAB Extended Push Button Operator, Non-Illuminated, Extended Profile, Metallic, 30 mm
Item: BH3MGJModel: HT8ABGABCross Ref: 13Z568
7 In Stock
Ships within 2 days via
10.00% off
€136.85 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pushbutton |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Actuator Color | Green |
| Actuator Type | Extended |
| Bezel | Chrome |
| Bezel Material | Chrome |
| Contact Configuration | 1 NC, 1 NO |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Allen Bradley Pushbutton Panel Compatible |
| Head Material | Metal |
| Head/lens Color | Green |
| Height | 1" |
| Illumination | Non-Illuminated |
| Ip Rating | IP66 |
| Length | 1" |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 1 x 10^7 |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 140°F |
| Operating Temperature - Minimum | 10°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 28V |
| Overall Depth | 1" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Oil And Grease Resistant, Watertight |
| Series | Ht800 Series |
| Standards | Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
| Type | 30.5 mm, Watertight/Oiltight-HT800 |
| Warranty | 1 yr. |
| Width | 1" |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8536.50 |
| Country of Origin | DO |
Product Variants
| Model | Contact Form | Size | Type | Contact Configuration | Head Material | Bezel | Ip Rating | Bezel Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HT8AAGAB | 1NO/1NC | 30.5 mm | 30.5 mm, Watertight/Oiltight-HT800 | 1 NC, 1 NO | Metal | Chrome | IP66 | Chrome | €149.03 | |
| HT8AAGB | 1NC | 30.5 mm | 30.5 mm, Watertight/Oiltight-HT800 | 1 NC | Metal | Chrome | IP66 | Chrome | €127.24 | |
| HT8AAHF1Q1 | 2NO/2NC | - | 30.5 mm, Watertight/Oiltight-HT800 | 2 NO, 2 NC | Metal | Chrome | IP66 | Chrome | €233.88 | |
| HT8AARAB | - | 30.5 mm | 30.5 mm, Watertight/Oiltight-HT800 | 1 NC, 1 NO | - | Chrome | - | - | €149.03 | |
| HT8AAHB | - | 30.5 mm | 30.5 mm, Watertight/Oiltight-HT800 | 1 NC | - | Chrome | - | - | €127.24 | |
| HT8AARA | 1NO | - | 30.5 mm, Watertight/Oiltight-HT800 | 1 NO | Metal | Chrome | IP66 | Chrome | €127.24 | |
| HT8AAGA | 1NO | 30.5 mm | 30.5 mm, Watertight/Oiltight-HT800 | 1 NO | Metal | Chrome | IP66 | Chrome | €141.41 |
