EATON HMCPE050K2C Motor Circuit Protector, 50A, 3-Pole, 480 V, Frame J-K, 50-500A, 600 Y/347 V, Non-Aluminum
Item: AG8PWVModel: HMCPE050K2CCross Ref: 46MY43
7 In Stock
Ships within 2 days via
10.00% off
€932.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor Circuit Protector |
| Ac Voltage Rating | 600V AC |
| Amperage Rating | 50A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 250V AC |
| Depth | 6.5" |
| For Use With | Eaton Motor Starters, Rockwell Motor Starters |
| Frame | 125A/EG |
| Height | 5 1/2" |
| High Amp Trip Setting | 43.5A |
| Instantaneous Trip | Fixed |
| Length | 6 1/2" |
| Low Amp Trip Setting | 11.5A |
| Magnetic Trip Range | 50-500A |
| Max. Operating Temp. | 158°F |
| Max. Voltage | 347/600V |
| Max. Wire Size | 1/0 AWG |
| Maximum Air Rating | 65 Ka @ 600V Ac |
| Mfr. Series | Series G |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 3 |
| Phase | Three |
| Phase Connection | ABC |
| Series | HMCP Series |
| Terminal Connection | Line/Load Lug |
| Terminal Material | Non Aluminum |
| Trip Type | Thermal Magnetic |
| Type | Motor Circuit Protector |
| Voltage | 480V |
| Voltage Type | AC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 3" |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 7.62 |
| Country of Origin | US |
Product Variants
| Product | Model | Frame Size | Voltage | High Amp Trip Setting | Low Amp Trip Setting | Number Of Poles | Circuit Breaker Type | Ac Voltage Rating | Phase | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HMCPE003A0C | Frame J-K | 480V | - | - | 3 | - | - | - | 1 | €1,035.94 | |
 |

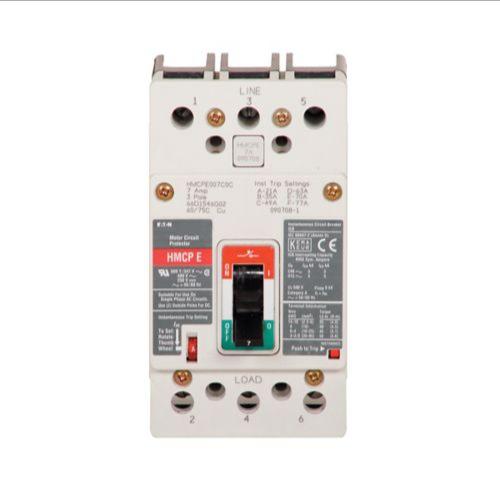

HMCPE007C0C | Frame J-K | 480V | - | - | 3 | - | - | - | 1 | €1,035.94 | |
 |
HMCPE015E0C | - | 480V | 13A | 3.4A | 3 | Standard | 600V AC | Three | 1 | €1,714.32 | |
|
HMCPE030H1C | - | 480V | 26A | 3.9A | 3 | Standard | 600V AC | Three | 1 | €1,711.68 | |
|
HMCPE070M2C | - | 480V | 60.9A | 16.1A | 3 | Standard | 600V AC | Three | 1 | €2,428.83 | |
|
HMCPE100R3C | - | 480V | 84.5A | 23A | 3 | Standard | 600V AC | Three | 1 | €2,480.89 | |
|
HMCPE100T3C | Frame J-K | 480V | - | - | 3 | - | - | - | 1 | €1,241.86 |
