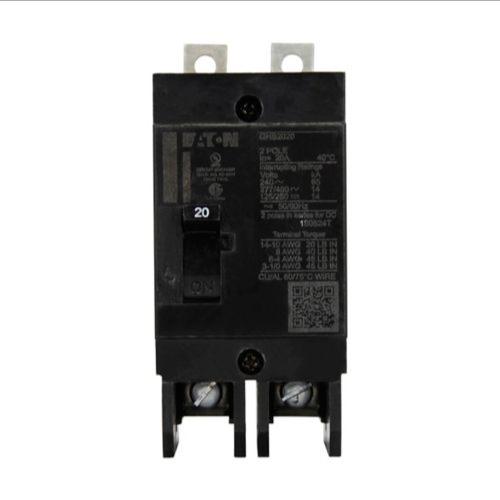

EATON GHB2020 Molded Case Circuit Breaker, Type Ghb, 2-Pole, 20 A, 480Y/277 Vac, 125/250 Vdc
Item: BH9UUAModel: GHB2020Cross Ref: 46MX38
7 In Stock
Ships within 2 days via
10.00% off
€672.49 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 277/480V AC |
| Amps | 20A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Standard |
| Compatible Panelboard/load Center Series | 1A |
| Dc Voltage Rating | 125/250V DC |
| Depth | 2.63" |
| For Use With | Eaton Powerline Panelboards |
| Frame Size | 100/GHB |
| Height | 4" |
| Length | 4" |
| Max. Air Rating | 14 kA At 277/480V AC |
| Max. Operating Temp. | 158°F |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 2 |
| Phase | Single |
| Terminal Connection | Screw Clamp |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 2" |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 6.68 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Amps | Ac Voltage Rating | Phase | Min. Wire Size | Dc Voltage Rating | Max. Wire Size | Circuit Breaker Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GHB1015 | 1 | 15A | 277V AC | Single | 14 AWG | 125V DC | 10 AWG | Standard | €326.64 | |
| GHB1020 | 1 | 20A | 277V AC | Single | 14 AWG | 125V DC | 10 AWG | Standard | €319.76 | |
| GHB1025 | 1 | 25A | 277V AC | Single | 10 AWG | 125V DC | 1/0 AWG | Standard | €359.53 | |
| GHB1030 | 1 | 30A | 277V AC | Single | 10 AWG | 125V DC | 1/0 AWG | Standard | €328.71 | |
| GHB1035 | 1 | 35A | 277V AC | Single | 10 AWG | 125V DC | 1/0 AWG | Standard | €350.06 | |
| GHB1040 | 1 | 40A | 277V AC | Single | 10 AWG | 125V DC | 1/0 AWG | Standard | €352.87 | |
| GHB1050 | 1 | 50A | 277V AC | Single | 10 AWG | 125V DC | 1/0 AWG | Standard | €339.61 |
