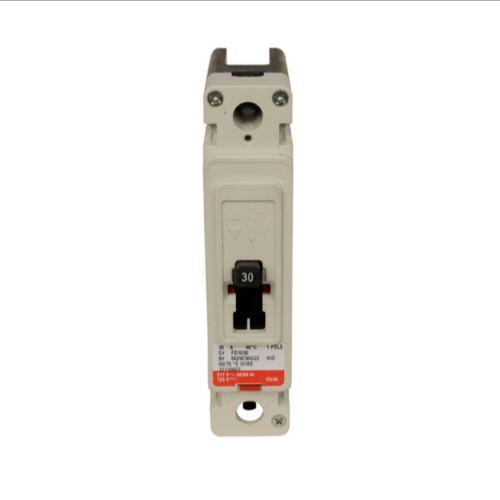

EATON FD1030 Molded Case Circuit Breaker, Fd Type, 1-Pole, 30 A, 347 Vac, 125 Vdc, Load Side, 50/60 Hz
Item: BH9LERModel: FD1030Cross Ref: 46MW99
7 In Stock
Ships within 2 days via
10.00% off
€440.79 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 347V AC |
| Amps | 30A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage Rating | 125V DC |
| Depth | 3.38" |
| For Use With | Allen Bradley Mcc, Eaton Mcc Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse |
| Frame Size | 225A/F |
| Height | 6" |
| High Amp Trip Setting | 150A |
| Instantaneous Trip | Fixed |
| Length | 3.38" |
| Low Amp Trip Setting | 15A |
| Max. Air Rating | 35 kA At 277V AC |
| Max. Operating Temp. | 158°F |
| Max. Wire Size | 1/0 AWG |
| Min. Operating Temp. | -4°F |
| Min. Wire Size | 14 AWG |
| Number Of Poles | 1 |
| Phase | Single |
| Phase Connection | A |
| Series | Fd Series |
| Terminal Connection | Load Side Lug |
| Trip Type | Thermal Magnetic |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 1.38" |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 8.59 |
| Ship width (cm) | 3.51 |
| Country of Origin | US |
Product Variants
| Model | Number Of Poles | Circuit Breaker Type | Frame Size | Amps | Ac Voltage Rating | Phase | Phase Connection | Dc Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| ED2200 | 2 | Standard | 225A/F | 200A | 240V AC | Single | AB | 125V DC | €870.01 | |
| ED3100 | 3 | Standard | 225A/F | 100A | 240V AC | Three | ABC | 125V DC | €1,066.30 | |
| ED3125 | 3 | Standard | 225A/F | 125A | 240V AC | Three | ABC | 125V DC | €2,641.41 | |
| ED3150 | - | - | - | - | - | - | - | - | €2,716.24 | |
| ED3175 | 3 | Standard | 225A/F | 175A | 240V AC | Three | ABC | 125V DC | €1,066.30 | |
| ED3200 | 3 | Standard | 225A/F | 200A | 240V AC | Three | ABC | 125V DC | €1,066.30 | |
| ED3225 | 3 | Standard | 225A/F | 225A | 240V AC | Three | ABC | 125V DC | €2,762.50 |
