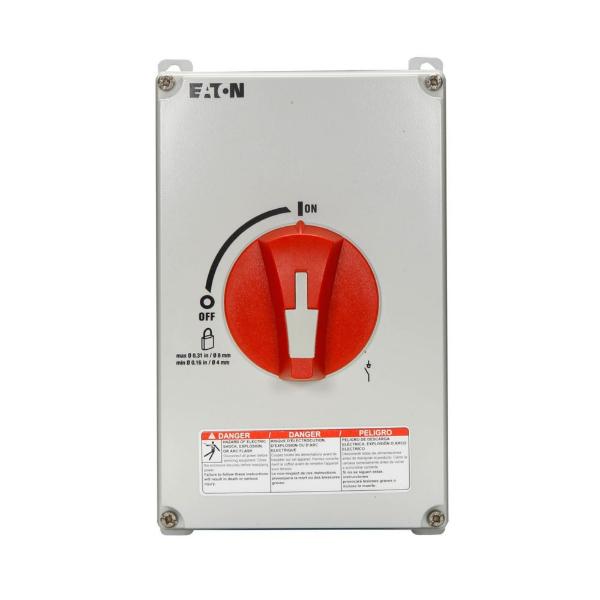

EATON ER53060UPGR Enclosed Non-Fusible Rotary Disconnect Switch, 600 VAC, 60A, 15 Hp, 30 Hp, 3P
Get it by Tuesday, Sep 1
€650.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Disconnect Switch |
| Amps | 60A |
| Cover Color | Gray |
| Enclosure Material | Polycarbonate, Non Metallic |
| Handle Color | Red |
| Height | 5" |
| Length | 10" |
| Max. Hp | 15, 15, 30, 30 Hp (@208, 240, 480, 600 V) |
| Nema Enclosure Rating | NEMA 4X |
| No. Of Poles | 3 |
| Notes | Gray Cover, Red Handle. |
| Series | Series R |
| Type | Enclosed Rotary Disconnect |
| Voltage | 600V |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 0.95 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 25.4 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Amps | Height | No. Of Poles | Max. Hp | Enclosure Material | Nema Enclosure Rating | Notes | Handle Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ER53016UG | 16A | 6.7" | 3 | 3, 5, 10, 10 Hp (@208, 240, 480, 600 V) | - | NEMA 1 | - | - | €630.11 | |
|
ER53025UD | 25A | 6.7" | 3 | 7.5, 7.5, 15, 20 Hp (@208, 240, 480, 600 V) | Galvanized Steel | NEMA 12, NEMA 3R | NEMA Type 12 Enclosures (16LAA 80A) Can Be Field Modified To Meet NEMA Type 3R Rainproof Requirements When A Factory-Provided Drain Hole Is Opened. | - | €690.68 | |
|
ER53016UD | 16A | 6.7" | 3 | 3, 5, 10, 10 Hp (@208, 240, 480, 600 V) | Galvanized Steel | NEMA 12, NEMA 3R | NEMA Type 12 Enclosures (16LAA 80A) Can Be Field Modified To Meet NEMA Type 3R Rainproof Requirements When A Factory-Provided Drain Hole Is Opened. | - | €839.67 | |
 |
ER53016UW | 16A | 6.7" | 3 | 3, 5, 10, 10 Hp (@208, 240, 480, 600 V) | Stainless Steel | NEMA 4X | - | - | €1,937.74 | |
|
ER53025UW | 25A | 6.7" | 3 | 7.5, 7.5, 15, 20 Hp (@208, 240, 480, 600 V) | Stainless Steel | NEMA 4X | - | - | €1,662.81 | |
 |
ER53025UG | 25A | 6.7" | 3 | 7.5, 7.5, 15, 20 Hp (@208, 240, 480, 600 V) | - | NEMA 1 | - | - | €530.25 | |
|
ER53030UD | 30A | 6.7" | 3 | 7.5, 7.5, 15, 20 Hp (@208, 240, 480, 600 V) | Galvanized Steel | NEMA 12, NEMA 3R | NEMA Type 12 Enclosures (16LAA 80A) Can Be Field Modified To Meet NEMA Type 3R Rainproof Requirements When A Factory-Provided Drain Hole Is Opened. | - | €911.79 |
