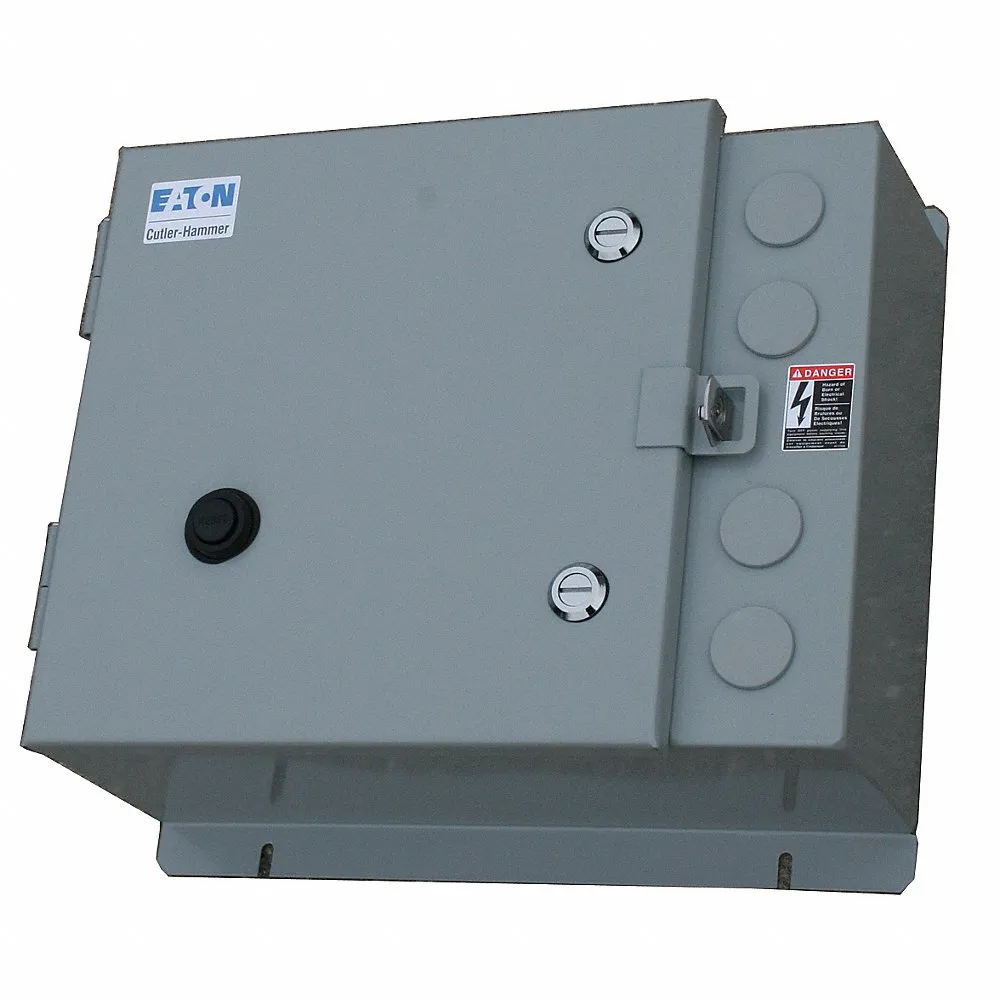

EATON ECN0531AAA-R63/E NEMA Magnetic Motor Starter, Electronic, 110/120 VAC
Get it by Friday, Dec 19
10.00% off
€2,655.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Auxiliary Contact Module Capacity | 4 |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 110/120V AC |
| Depth | 8.03" |
| Features | Solid State Overload Relay |
| Frequency | 50/60 Hz |
| Height | 25.99" |
| Horsepower @ Single Phase - 120v Ac | 7 1/2 hp |
| Horsepower @ Single Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 208v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Hp @ 1 Phase - 120v | 7 1/2 hp |
| Hp @ 3 Phase - 208v | 25 hp |
| Hp @ 3 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 480v | 50 hp |
| Hp @ 3 Phase - 575v | 50 hp |
| Includes | Solid State Overload Relay |
| Includes Auxiliary Contacts | Yes |
| Max Current (ac) | 90A |
| Max. Overload Relay Amps Setting | 100A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 20A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Nema Size | 3 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Auxillary Contacts | 2 |
| Number Of Poles | 3 |
| Overall Depth | 26 1/2" |
| Overall Height | 11" |
| Overall Width | 14 1/5" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 11.66" |
Shipping Info:
| Ship weight (kg) | 19.13 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 67.31 |
| Ship width (cm) | 36.07 |
| Country of Origin | US |
Product Variants
| Product | Model | Nema Size | Height | Coil Voltage | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Depth | Hp @ 3 Phase - 575v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

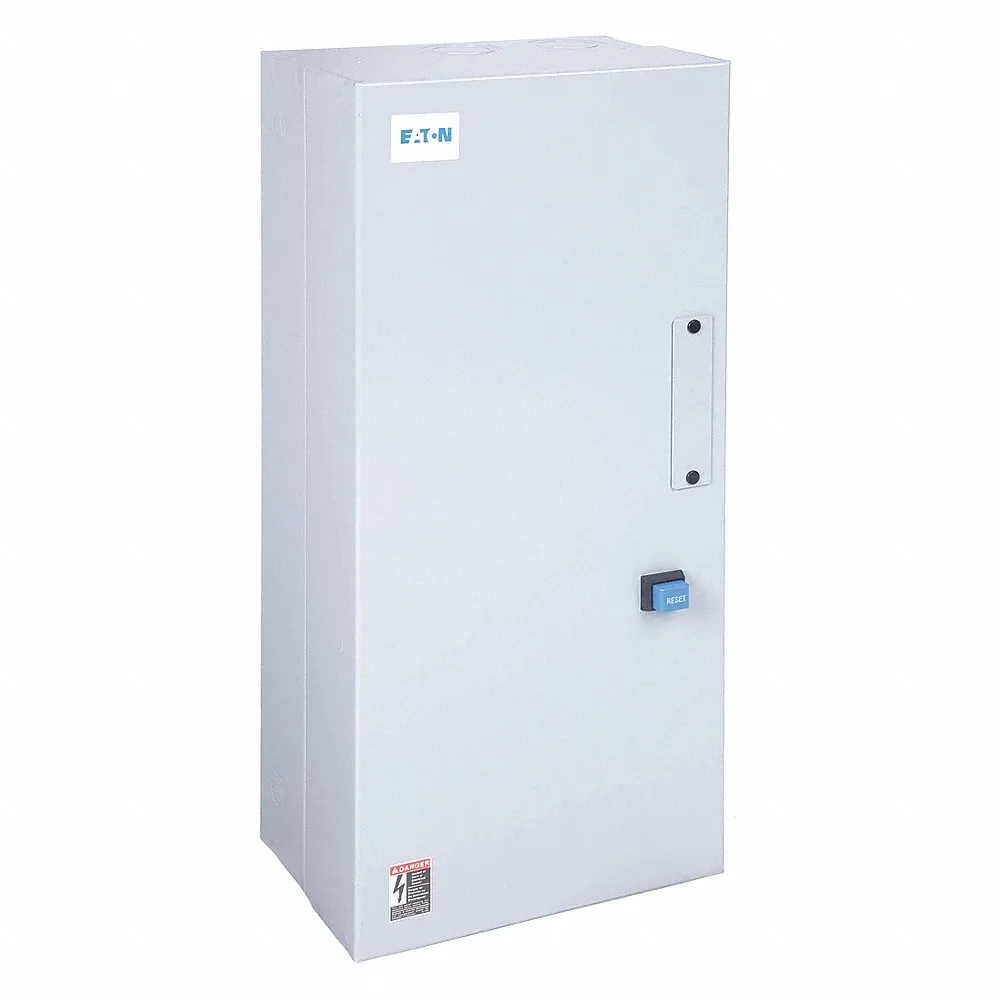

ECN0541AAA-R63/F | - | 25.99" | - | 40 hp | 50 hp | 100 hp | 8.03" | 100 hp | €7,148.53 | |
 |

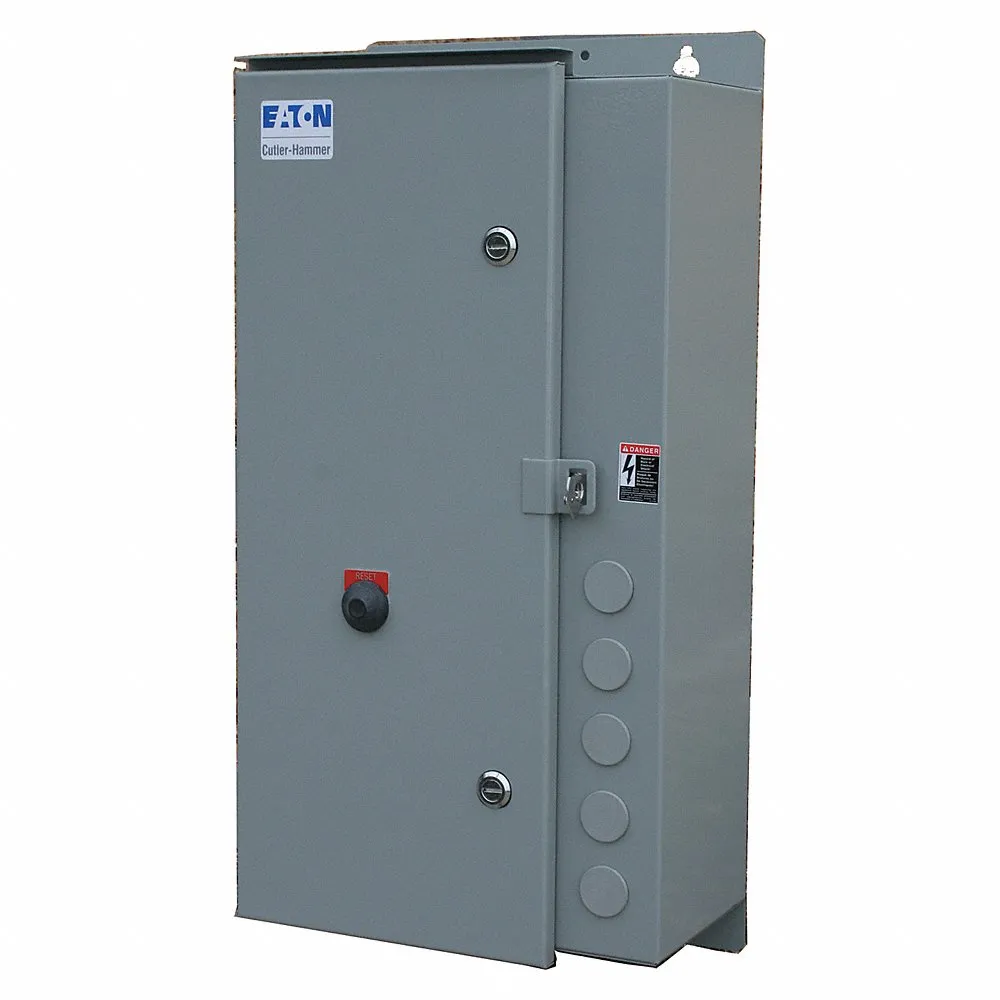

ECN0551AAA-R63/G | 5 | 13.31" | 110/120V AC | 75 hp | 100 hp | 200 hp | 6.7" | 200 hp | €18,338.19 | |
 |

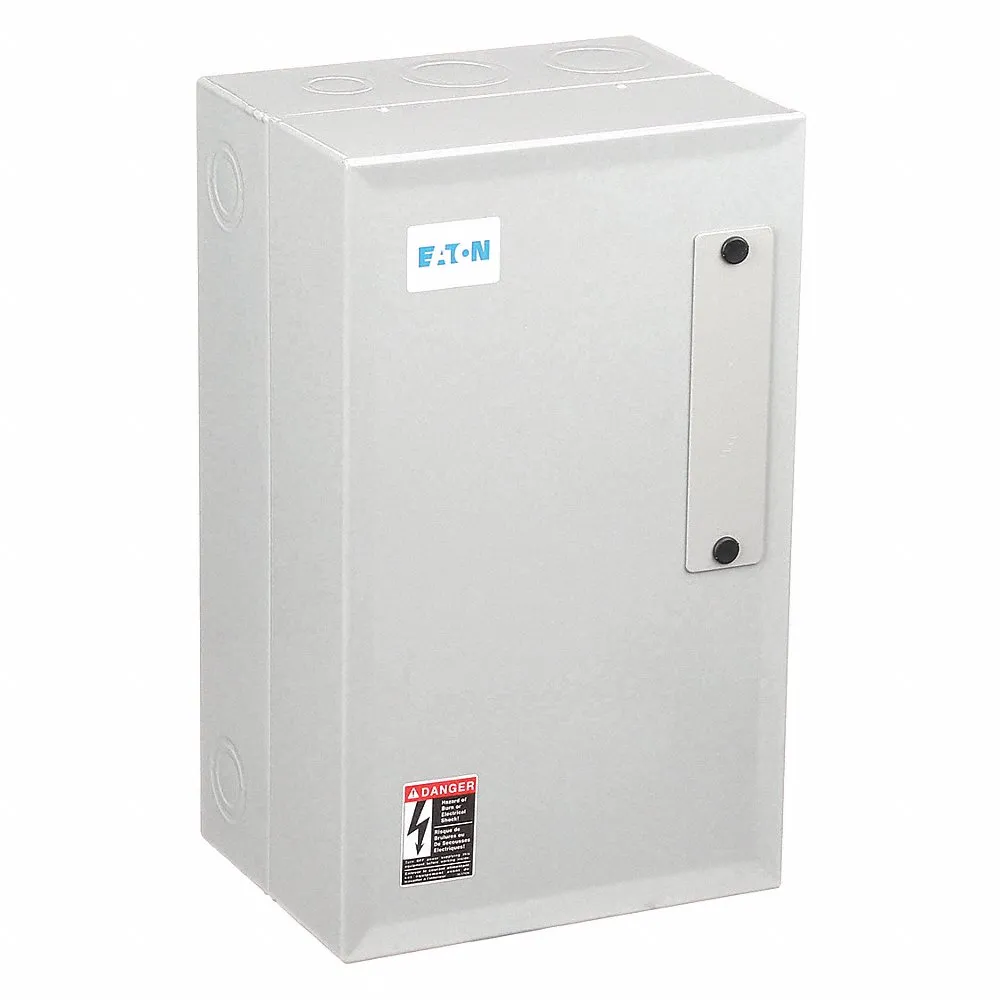

ECN05A1AAA-R63/C | 00 | 12 3/5" | 110/120V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €778.18 | |
 |

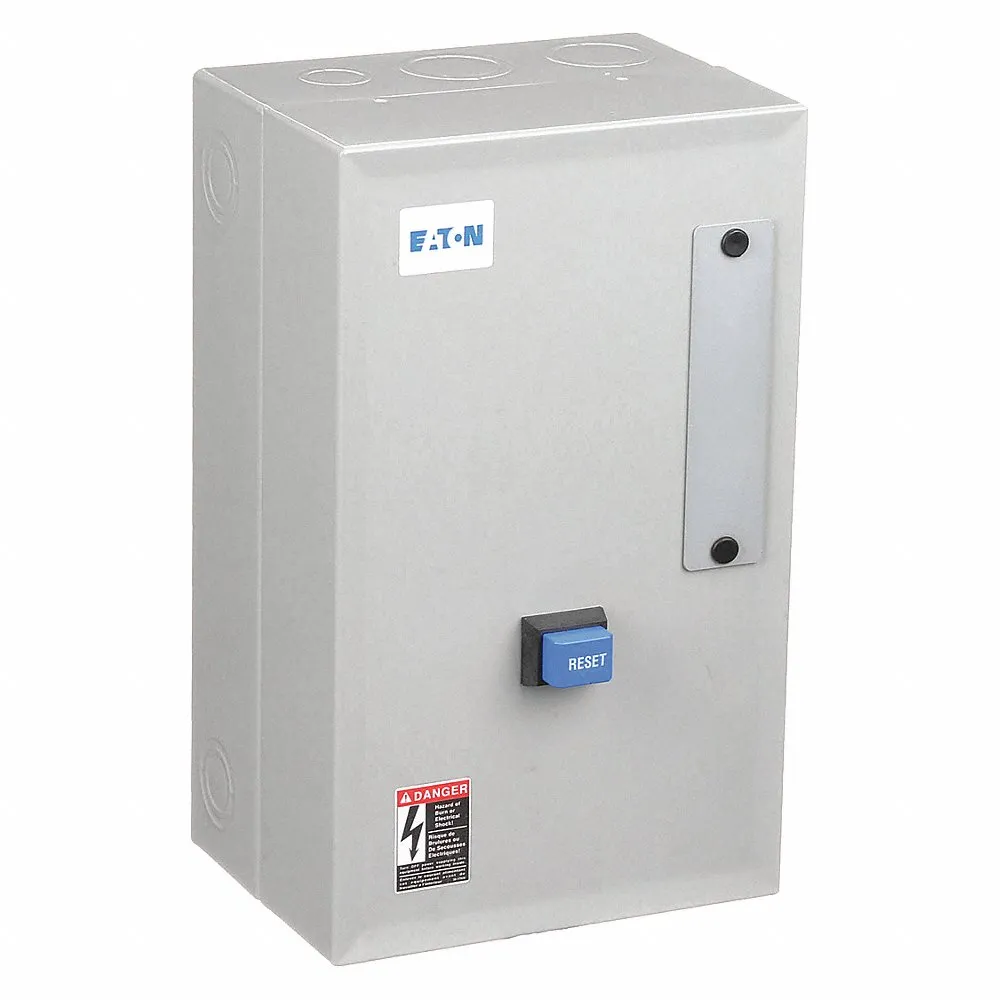

ECN05A1AAA-R63/A | - | 12 3/5" | - | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €1,022.16 | |
|
ECN05A1AAA-R63/B | 00 | 12 3/5" | 110/120V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €826.05 | |
|
ECN05A1BAA-R63/B | 00 | 12 3/5" | 220/240V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €826.05 | |
|
ECN05A1BAA-R63/A | 00 | 12 3/5" | 220/240V AC | 1 1/2 hp | 1 1/2 hp | 2 hp | 5 21/25" | 3 hp | €694.79 |
