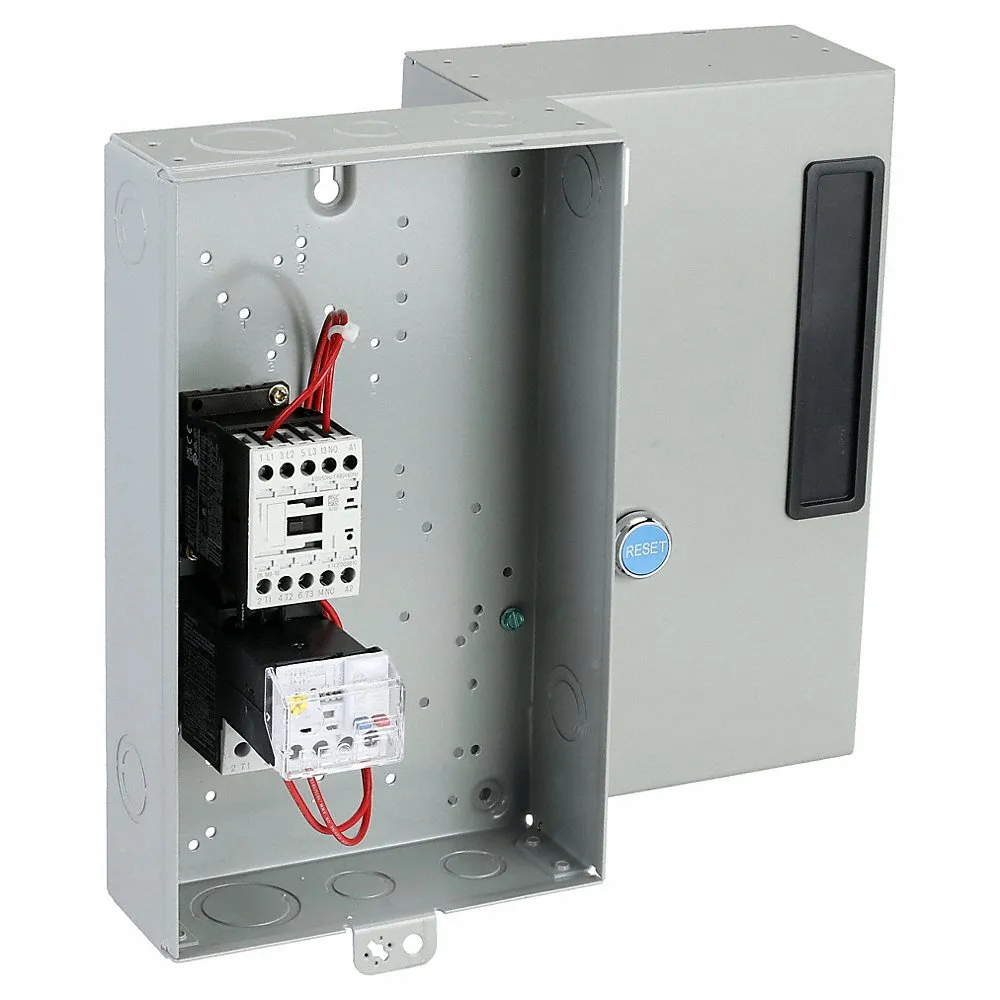

EATON ECX09C1CAA-R63/B IEC Magnetic Motor Starter, Non-Reversing, 3 Poles, Electronic Protection, 9 A, 480 VAC
Item: BJ3WXBModel: ECX09C1CAA-R63/BCross Ref: 5VYT9
7 In Stock
Ships within 2 days via
5.00% off
€802.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Magnetic Motor Starter |
| Action | Nonreversing |
| Amps | 9A |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 480V AC |
| Depth | 10.1" |
| Enclosure Material | Steel |
| Exterior Operator Controls | None |
| Frequency | 50/60 Hz |
| Height | 8 1/2" |
| Hp @ 1 Phase-120v | 1/2 hp , 1/4 hp |
| Hp @ 1 Phase-240v | 1 1/2 hp , 1/3 hp |
| Hp @ 3 Ph | 3 hp |
| Hp @ 3 Phase-208v | 1 hp |
| Hp @ 3 Phase-240v | 1 hp |
| Hp @ 3 Phase-480v | 3 hp |
| Hp @ 3 Phase-575v | 3 hp |
| Hp @ 3 Phase-600v | 3 hp |
| Included Auxiliary Contacts | Yes |
| Ip Rating | IP23 |
| Length | 14" |
| Max. Amps (ac) | 9A |
| Max. Overload Relay Amps Setting | 5A |
| Max. Voltage | 690V AC |
| Min. Overload Relay Amps Setting | 1A |
| Mounting Style | Surface |
| Nema Enclosure Rating | 1 |
| Nema Size | Not Applicable |
| No. Of Auxillary Contacts | 2 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Overall Depth | 14" |
| Overall Height | 8 1/2" |
| Overall Width | 9" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Pilot Lights Included | None |
| Reversing Capability | Non Reversing |
| Series | Xt Series Series |
| Starter Style | IEC |
| Thermal Unit Code | Not Applicable |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Width | 14.9" |
Shipping Info:
| Ship weight (kg) | 4.34 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 22.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Overall Height | Overall Depth | Coil Voltage | Max. Overload Relay Amps Setting | Hp @ 3 Phase-208v | Overall Width | Hp @ 1 Phase-120v | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ECN0531AAA-R63/E | 11" | 26 1/2" | 110/120V AC | 100A | 25 hp | 14 1/5" | 7 1/2 hp | Surface | €2,950.65 | |
 |
ECN0541AAA-R63/F | 11" | 26 1/2" | - | 140A | 40 hp | 14 1/5" | Not Rated | Surface | €7,148.53 | |
 |
ECN0551AAA-R63/G | 13" | 29" | 110/120V AC | 300A | 75 hp | 21" | Not Rated | Surface | €18,338.19 | |
 |
ECN05A1AAA-R63/C | 7.15" | 10 19/25" | 110/120V AC | 20A | 1 1/2 hp | 6.06" | 1/3 hp | Surface | €778.18 | |
 |
ECN05A1AAA-R63/A | 12 3/5" | 7.62" | - | 1.65A | 1 1/2 hp | 6" | 1/3 hp | Surface | €1,022.16 | |
|
ECN05A1AAA-R63/B | 8 1/2" | 14.9" | 110/120V AC | 5A | 1 1/2 hp | 10.1" | 1/3 hp | Surface | €826.05 | |
|
ECN05A1BAA-R63/B | 8 1/2" | 14.9" | 220/240V AC | 5A | 1 1/2 hp | 10.1" | 1/3 hp | Surface | €826.05 |
