EATON ECN1811ECB-R63/C NEMA Combination Starter, Electronic, 208 VAC, Push Button
Get it by Thursday, Dec 18
10.00% off
€2,806.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | NEMA Fusible Combination Starter |
| Actuator | Red Run Light, Start/Stop Pushbutton |
| Auxiliary Contact Form | 1NO |
| Auxiliary Contact Module Capacity | 4 |
| Control Transformer | Yes |
| Electrical Operating Durability | 100000 |
| Frequency | 60 Hz |
| Fuse Clip Rating | 30A |
| Fuse Clip Type | Class R |
| Height | 10 1/4" |
| Horsepower @ Single Phase | Not Rated |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 10 hp |
| Includes Auxiliary Contacts | Yes |
| Includes Control Transformer | Yes |
| Includes Pilot Light | Yes |
| Ip Rating | IP20 |
| Length | 30 1/8" |
| Max Current (ac) | 27A |
| Max. Overload Relay Amps Setting | 20A |
| Maximum Voltage Rating | 250V AC |
| Minimum Overload Relay Current Setting | 4A |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | 1 |
| Nema Size | 1 |
| No. Of Auxillary Contacts | 1 |
| No. Of Terminals | 3 |
| Nominal Coil (secondary) Voltage | 120V AC |
| Nominal Control (primary) Voltage | 208V AC |
| Number Of Poles | 3 |
| Operator | Push Button |
| Operator Type | Start/Stop (Push Button) |
| Overall Depth | 30.13" |
| Overall Height | 10 1/4" |
| Overall Width | 11.63" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Pilot Light | Red On |
| Resistance Properties | Impact Resistant, Tamper Resistant |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Short Circuit Protection | Fusible Disconnect |
| Starter Style | NEMA |
| Terminal Connection Type | Screw Terminals |
| Thermal Unit Code | Not Applicable |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
| Ul Fuse Class | Class R |
| Width | 11 5/8" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 26.04 |
| Ship length (cm) | 76.53 |
| Ship width (cm) | 29.54 |
| Country of Origin | US |
Product Variants
| Model | Control Transformer | Nema Size | Auxiliary Contact Form | Overall Height | Hp @ 3 Phase - 480v | Hp @ 3 Phase - 240v | Short Circuit Protection | Trip Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

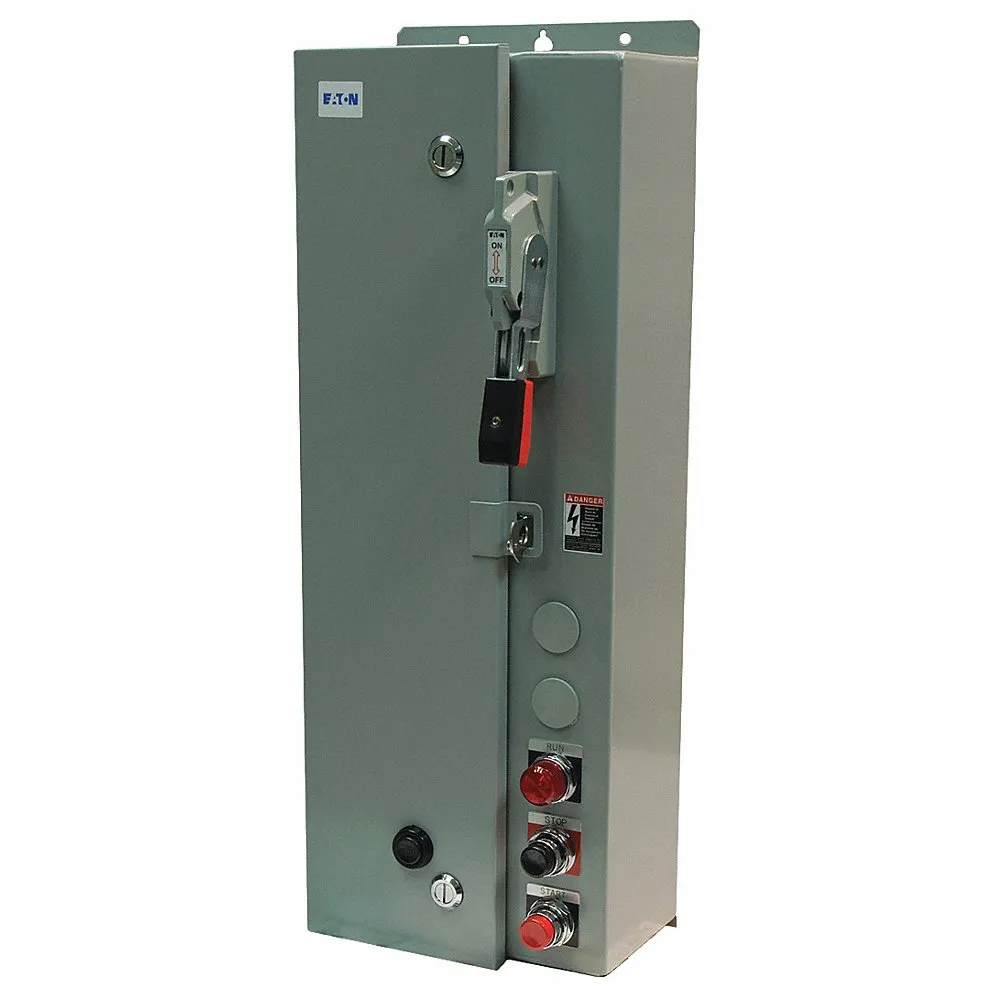

| ECN1801CCC-R63/B | Yes | - | 1NO, 1NC | 10 1/4" | 3 hp | 3 hp | Fusible Disconnect | Class 10, Class 20, Class 30 | €2,204.37 | |

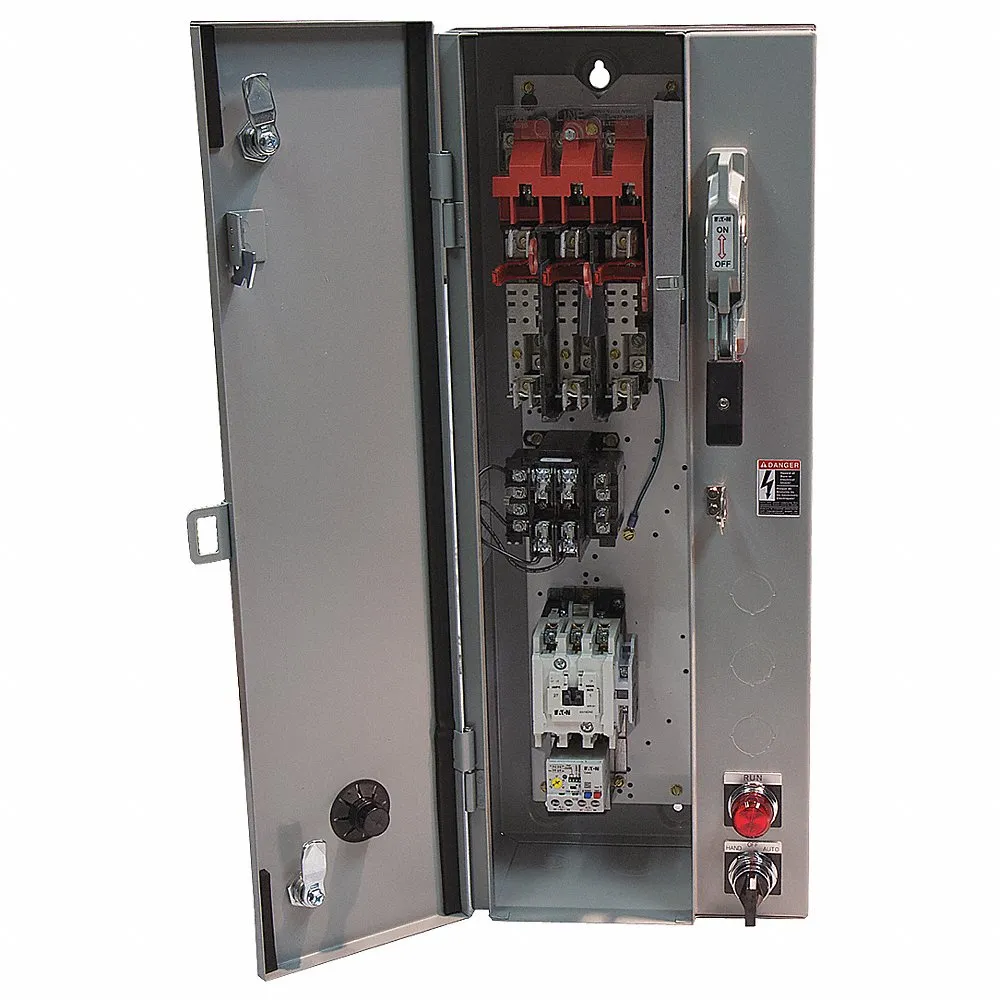

| ECN1801CJC-R63/B | Yes | 1 | 1NO | 10 1/4" | 3 hp | 3 hp | Fusible Disconnect | Class 10, Class 20, Class 30 | €3,043.26 | |
| ECN1801ECB-R63/B | Yes | 1 | 1NO | 10 1/4" | 5 hp | 1 1/2 hp | Fusible Disconnect | Class 10, Class 20, Class 30 | €1,706.82 | |
| ECN1801EJB-R63/B | Yes | 1 | 1NO | 10 1/4" | 5 hp | 1 1/2 hp | Fusible Disconnect | Class 10, Class 20, Class 30 | €2,204.37 | |
| ECN1802CJC-R63/B | Yes | - | 1NO | 10 1/4" | 3 hp | 3 hp | Fusible Disconnect | Class 10, Class 20, Class 30 | €3,475.40 | |
| ECN1802CCC-R63/B | Yes | - | 1NO | 10 1/4" | - | - | Fusible Disconnect | Class 10, Class 20, Class 30 | €1,447.29 | |
| ECN1802ECB-R63/B | Yes | - | 1NO | 10 1/4" | 5 hp | 1 1/2 hp | Fusible Disconnect | Class 10, Class 20, Class 30 | €1,706.82 |
