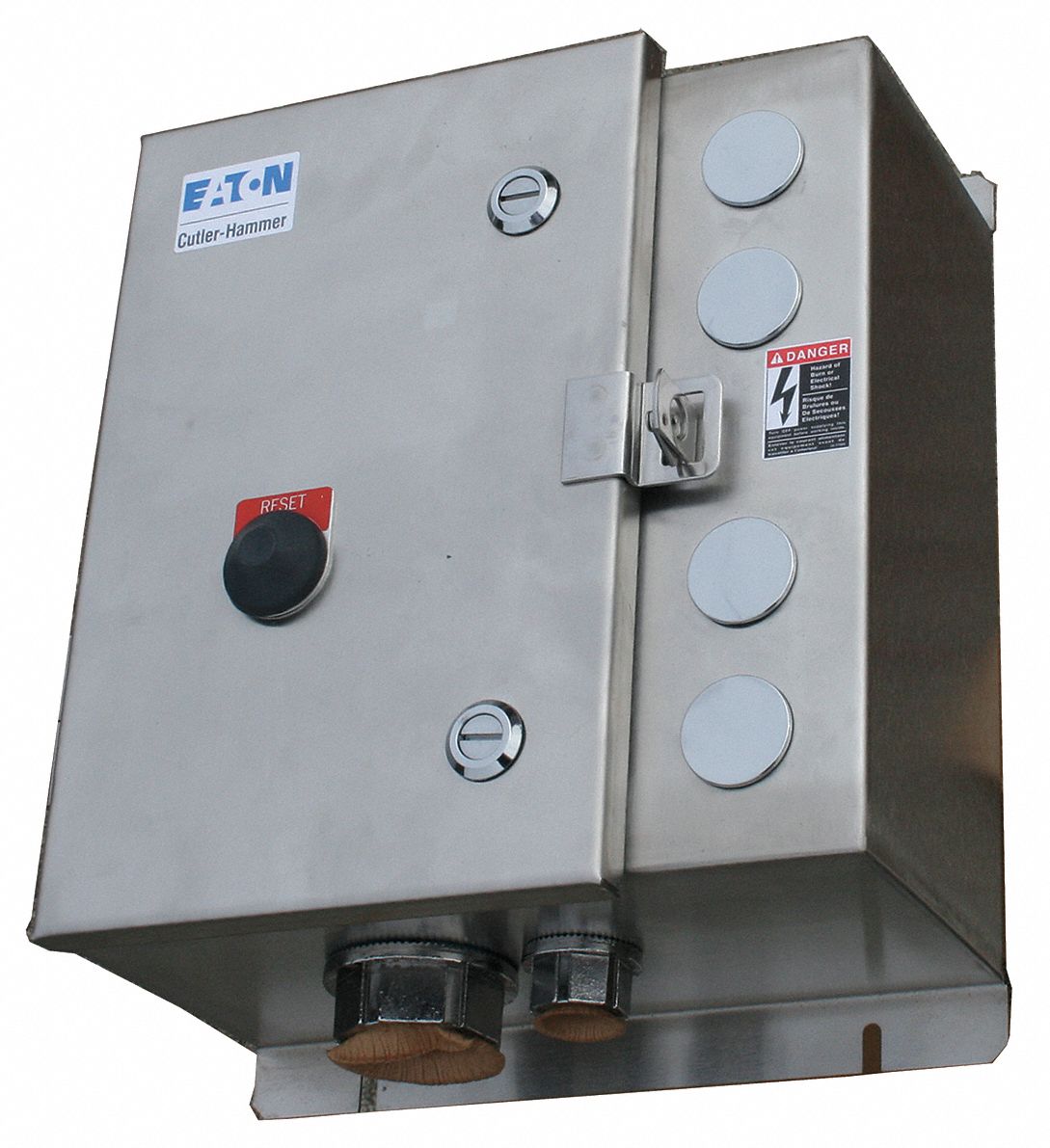

EATON ECN0534CAA-R63/E Magnetic Motor Starter, 480VAC Coil Voltage, 90A
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Magnetic Motor Starter |
| Action Type | Non Reversing |
| Amps | 90A |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 440/460V AC |
| Depth | 8.47" |
| Frequency | 50/60 Hz |
| Height | 29.1" |
| Hp @ 1 Ph-240v | 15 hp |
| Hp @ 1 Phase-120v | 7 1/2 hp |
| Hp @ 1 Phase-230v | 15 hp |
| Hp @ 3 Phase-208v | 25 hp |
| Hp @ 3 Phase-240v | 30 hp |
| Hp @ 3 Phase-480v | 50 hp |
| Hp @ 3 Phase-575v | 50 hp |
| Hp @ 3 Phase-600v | 50 hp |
| Included Auxiliary Contacts | Yes |
| Ip Rating | IP20 |
| Max. Amps (ac) | 90A |
| Max. Overload Relay Amps Setting | 100A |
| Min. Overload Relay Amps Setting | 20A |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | NEMA 4X |
| Nema Size | 3 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Overall Depth | 8.47" |
| Overall Height | 29.1" |
| Overall Width | 14 1/4" |
| Overload Protection Type | Electronic |
| Overload Relay Amps Setting | 20-100A |
| Phase | 3 |
| Resistance Properties | Impact Resistant, Temperature Resistant |
| Reversing Capability | Non Reversing |
| Series | Freedom Series |
| Starter Style | NEMA |
| Starter Type | NEMA |
| Status Indicator | LED Indicator |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
Shipping Info:
| Ship height (cm) | 73.91 |
| Ship length (cm) | 21.51 |
| Ship width (cm) | 36.2 |
| Country of Origin | US |
Product Variants
| Model | Nema Size | Coil Voltage | Height | Action Type | Depth | Price | |
|---|---|---|---|---|---|---|---|

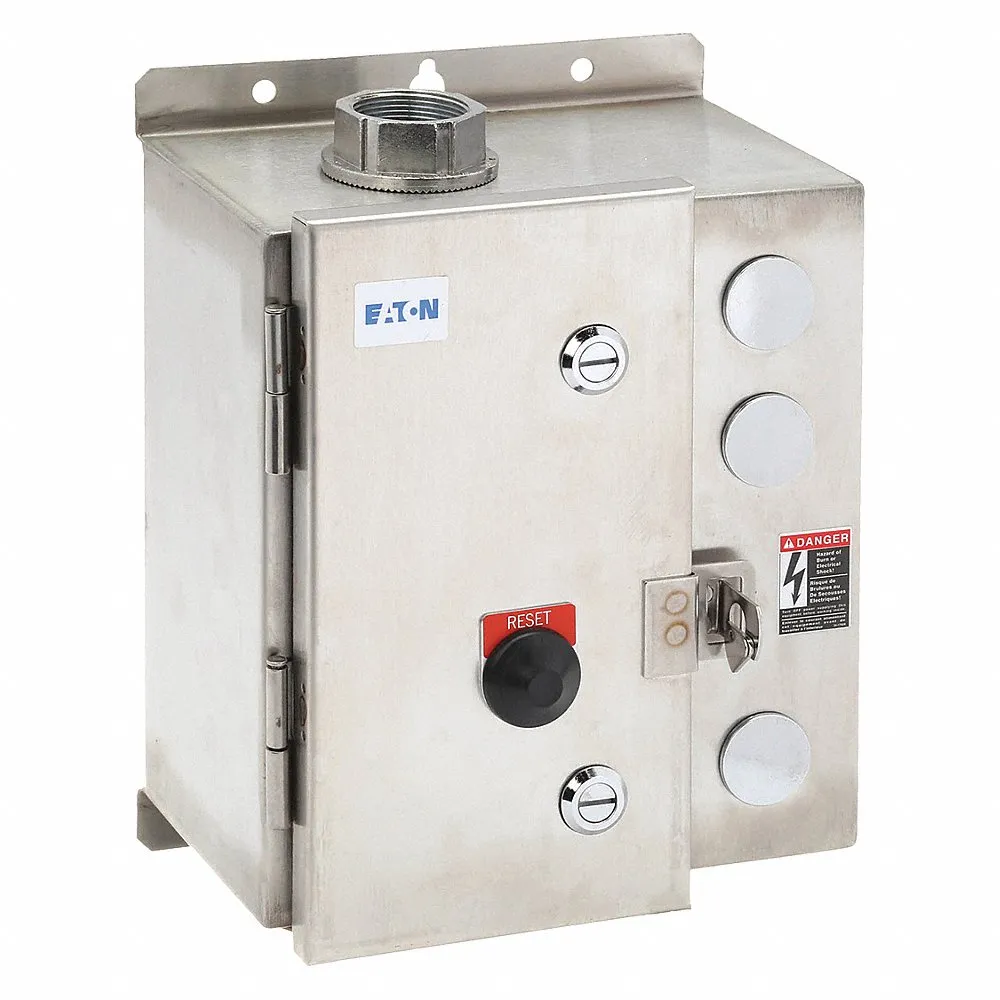

| ECN0504AAA-R63/B | - | 120V AC | 13.31" | Nonreversing | - | €1,754.07 | |

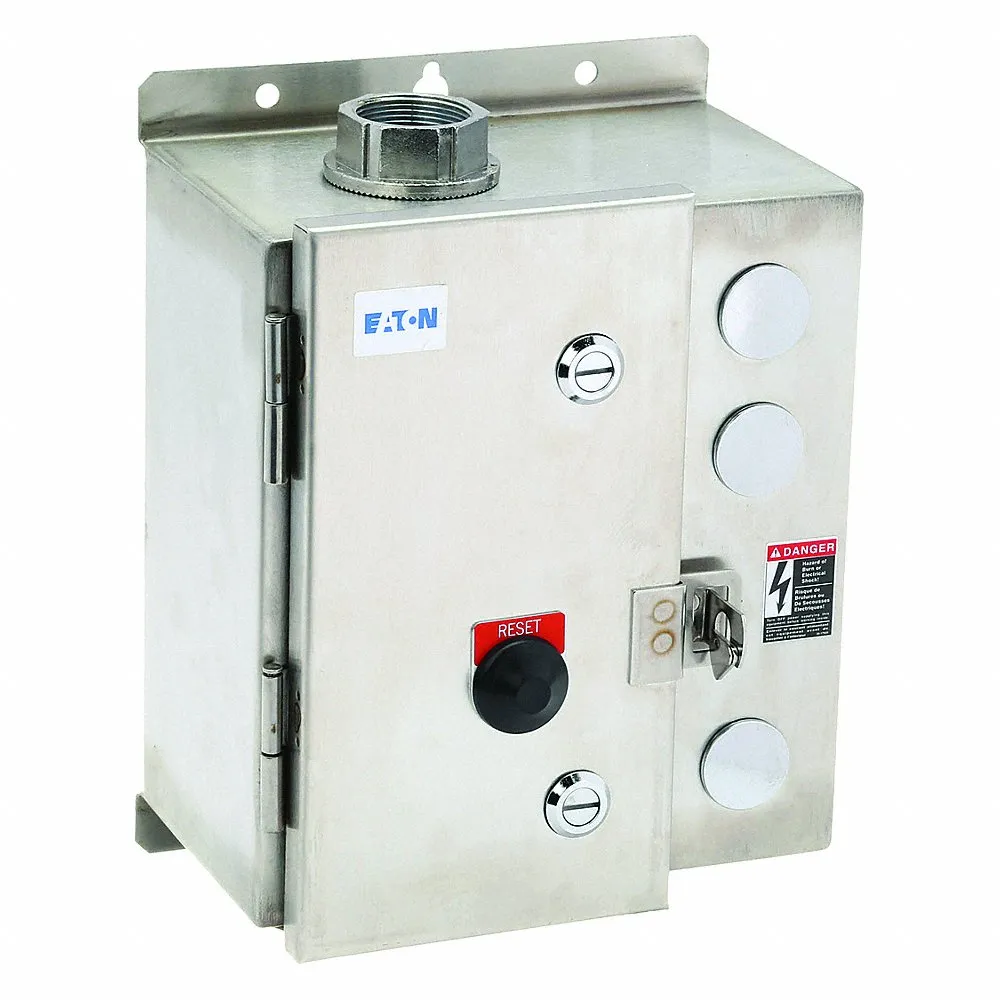

| ECN0504AAA-R63/CL30 | - | 120V AC | 13.31" | Non Reversing | - | €1,801.59 | |
| ECN0504BAA-R63/B | - | 220/240V AC | 13.31" | Nonreversing | 6.7" | €1,754.07 | |
| ECN0504CAA-R63/BL30 | - | 480V AC | - | - | - | €1,754.07 | |
| ECN0504BAA-R63/C | - | 220/240V AC | 13.31" | - | 6.7" | €1,801.59 | |
| ECN0504CAA-R63/C | - | 480V AC | 13.31" | - | 6.7" | €1,801.59 | |
| ECN0504EAA-R63/C | - | 208V AC | 13.31" | Nonreversing | 6.7" | €1,801.59 |
