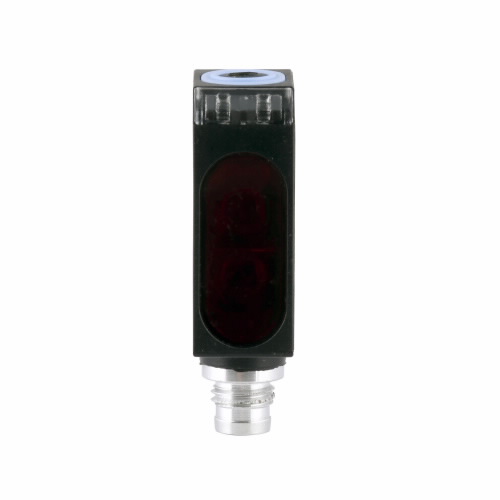

EATON E71-PRP-M8 Photoelectric Sensor, 8.2 Feet Range, 100 mA At 10-30 VDC, 10-30 VDC
Get it by Tuesday, Sep 1
€208.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Connection | M8 |
| Contact Configuration | Complementary NPN Open Collector |
| Contact Rating | 100 MA at 10-30V DC |
| Enclosure Material | ABS |
| Height | 1.41" |
| Input Voltage | 10-30V DC |
| Led Indicator | Stability, Green Power, Green Output, Yellow |
| Length | 0.79" |
| Max. Amps | 100 mA |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -13°F |
| No. Of Pins | 4 |
| Product Name | Eaton E71 NanoView Miniature Photoelectric Sensor |
| Protection Type | Short Circuit And Reverse Polarity |
| Sensor Type | Diffuse Reflective |
| Series | E71 |
| Width | 0.47" |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.58 |
| Ship length (cm) | 2.01 |
| Ship width (cm) | 1.19 |
| Country of Origin | US |
Product Variants
| Product | Model | Sensor Type | Type | Height | Input Voltage | Enclosure Material | Min. Operating Temp. | Max. Operating Temp. | Series | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E71-CON-M8 | Clear Object Detector | - | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €199.84 | |
 |
E71-COP-CA | Diffuse Reflective | Nanoview Photoelectric Sensor | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €199.84 | |
 |
E71-CON-CA | Clear Object Detector | Photoelectric Sensor | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €199.84 | |
 |
E71-FFDN-CA | Diffuse Reflective | Nanoview Photoelectric Sensor | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €236.69 | |
 |
E71-PRN-CA | Polarized Retroreflective | Photoelectric Sensor | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €208.36 | |
 |
E71-COP-M8 | Diffuse Reflective | - | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €199.84 | |
 |
E71-NTBS-M8 | Polarized Retroreflective | - | 1.41" | 10-30V DC | ABS | -13°F | 131°F | E71 | €151.65 |
