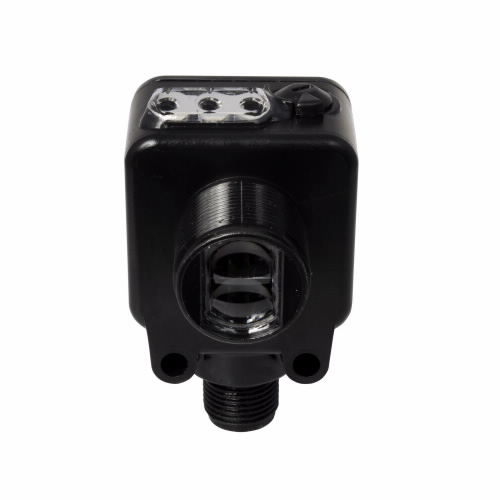

EATON E65-SMTD15-HDD Cylindrical Photoelectric Sensor Receiver, 10 to 30 VDC, NPN/PNP, 4-Pin Micro Connector
Item: BJ3EGQModel: E65-SMTD15-HDDCross Ref: 2XDT1
7 In Stock
Ships within 2 days via
10.00% off
€173.66 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Body Material | Resin |
| Cable Sheath Material | PVC |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NPN And PNP Open Collector |
| Contact Rating | 100 MA at 30V DC |
| Dc Supply Voltage Rating | 10-30V DC |
| Display Qty | 1 |
| Electrical Connection | M12 |
| Electrical Installation Type | Direct Connector |
| Emitted Sensor Light | Laser |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Cycoloy |
| Features | Auto Reset Short Circuit |
| Height | 1.29" |
| Includes Indicator Lights | Indicator Lights Included |
| Input Voltage | 10-30V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Power On, Green |
| Length | 2.17" |
| Load Current - Maximum | 100 mA |
| Max. Operating Temp. | 131°F |
| Maximum Dc Current | 100 mA |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 4 |
| Nominal Sensor Diameter | M18 Threaded |
| Notes | For Complete System, Order 1 Source And 1 Detector |
| Operating Mode | Thru Beam |
| Operating Temperature - Min | -13°F |
| Output Circuit | NPN, PNP |
| Output Circuit Type | NPN And PNP |
| Overall Depth | 55 mm |
| Overall Diameter | 18 mm |
| Overall Height | 33 mm |
| Overall Width | 37 mm |
| Product Name | Eaton E65 SM Compact Photoelectric Sensor |
| Protection Type | Auto Reset Short Circuit |
| Response Time | 1 ms |
| Sensing Distance - Maximum | 15m |
| Sensing Distance - Minimum | 30 mm |
| Sensing Method | Through Beam |
| Sensor Body Style | Cylindrical |
| Sensor Diameter | 18 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Dark On |
| Sensor Type | Through Beam |
| Series | E65 SM Series |
| Supply Voltage | 10-30V DC |
| Supply Voltage Type | Dc Only |
| Switch Type | Photoelectric |
| Switching Frequency | 500 Hz |
| Through Beam Sensor Component | Photoelectric Sensor Receiver |
| Warranty | 3 yrs. |
| Width | 1.47" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 3.73 |
| Country of Origin | US |
Product Variants
| Product | Model | Operating Mode | Ip Rating | Sensing Method | Body Material | Response Time | Price | |
|---|---|---|---|---|---|---|---|---|
 |
E65-SMPP050-HL5 | Background Suppression | IP68, IP69K | - | - | - | €269.58 | |
 |
E65-SMPPS9196 | Polarized Retroreflective | IP68, IP69K | - | - | - | €277.04 | |
 |
E65-SMPR3-GDD | Polarized Retroreflective | IP68, IP69K | - | - | - | - | RFQ
|
|
E65-SMPRS9350 | Diffuse Reflective | IP68, IP69K | - | - | - | €203.19 | |
|
E65-SMPRS9050 | Polarized Retroreflective | IP68, IP69K | - | - | - | €496.95 | |
|
E65-SMPRS9230 | Diffuse Reflective | IP68, IP69K | - | - | - | €520.59 | |
|
E65-SMPRS9109 | Polarized Retroreflective | IP68, IP69K | - | - | - | €231.77 |
