EATON E65-SMPPS9196 Photoelectric Sensor, Distance 4 Inch, 100 mA Max Dc, 100 mA At 30 VDC, 10-30 VDC
Get it by Monday, Aug 24
€277.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Photoelectric Sensor |
| Cable Sheath Material | PVC |
| Connection | 4-pin Dual Key Micro Connector |
| Contact Configuration | DC, NPN Open Collector AC, L1 Switched |
| Contact Rating | 200 MA DC NPN / 200 MA AC 3 - Wire |
| Cord Length | 18 ft. |
| Enclosure Lens Material | Polycarbonate |
| Enclosure Material | Cycoloy |
| Height | 1.29" |
| Input Voltage | 18-264V AC/18-50V DC |
| Ip Rating | IP68, IP69K |
| Led Indicator | Marginal Gain, Orange Output Status, Red Power On, Green |
| Length | 2.17" |
| Max. Amps | 200 mA |
| Max. Operating Temp. | 131°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Notes | For Complete System, Order Sensor And Retroreflector. Retroreflector Not Included |
| Operating Mode | Polarized Retroreflective |
| Product Name | Eaton E65 SM Compact Photoelectric Sensor |
| Sensor Type | Polarized Retroreflective |
| Switch Type | Photoelectric |
| Width | 1.63" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 3.28 |
| Ship length (cm) | 5.51 |
| Ship width (cm) | 4.14 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Input Voltage | Sensor Type | Max. Amps | Operating Mode | Cord Length | Series | Electrical Connection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

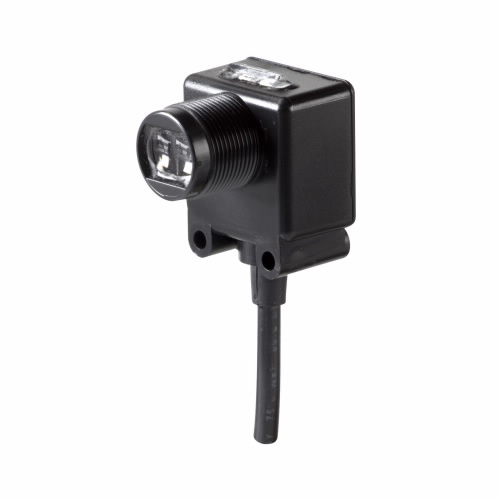

E65-SMPP050-HL5 | 1.29" | 18-264V AC/18-50V DC | Back Ground Suppression | 200 mA | Background Suppression | 79.2 ft. | E65 | - | €269.58 | |
 |

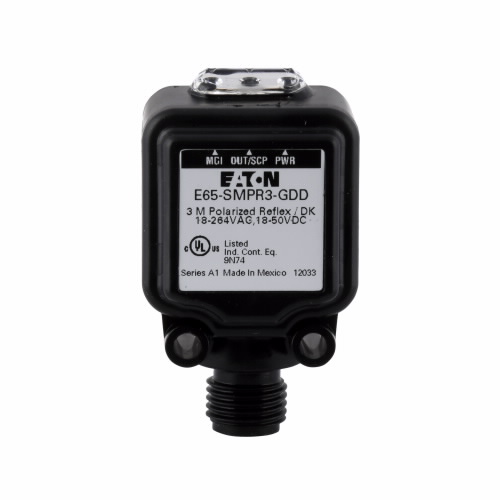

E65-SMPR3-GDD | 1.29" | 18-264V AC/18-50V DC | Polarized Retroreflective | 200 mA | Polarized Retroreflective | - | - | - | - | RFQ
|
|
E65-SMPRS9350 | 1.29" | 18-264V AC/18-50V DC | Diffuse Reflective | 200 mA | Diffuse Reflective | 15 ft. | - | - | €203.19 | |
|
E65-SMPRS9050 | 1.29" | 10-30V DC | Polarized Retroreflective | 100 mA | Polarized Retroreflective | 18 ft. | - | - | €496.95 | |
|
E65-SMPRS9230 | 1.29" | 18-264V AC/18-50V DC | Diffuse Reflective | 200 mA | Diffuse Reflective | 18 ft. | - | - | €520.59 | |
|
E65-SMPRS9109 | 1 1/2" | 10-30V DC | Polarized Retroreflective | 100 mA | Polarized Retroreflective | 15 ft. | - | - | €231.77 | |
 |

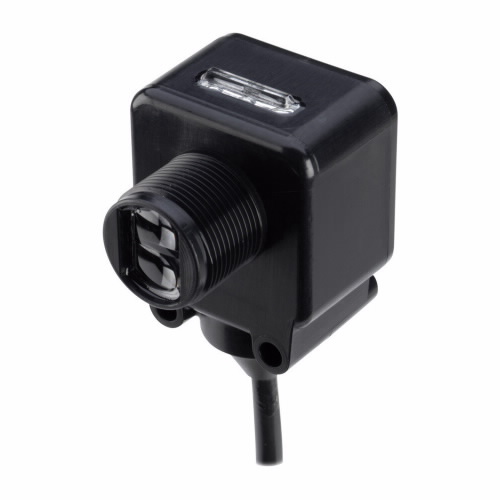

E65-SMTS15-HA | 1.47" | 10-30V DC | Through Beam | - | - | 79.2 ft. | E65 SM Series | Bare Wire | €124.70 |
