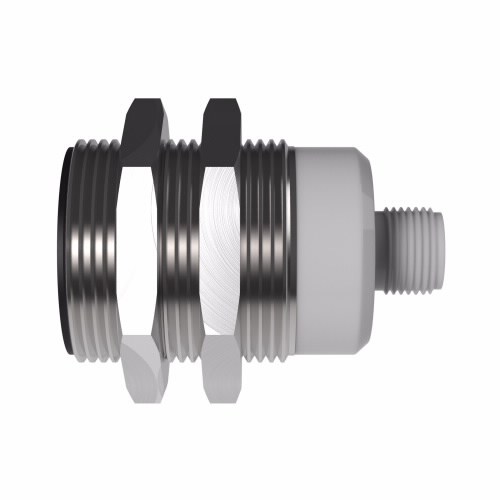

EATON E57PS-30SPC10-Q Cylindrical Proximity Sensor, 10 to 48 VDC, 600 Hz Proximity Sensor, 3 Wire PNP, Metal
Item: BJ3DEBModel: E57PS-30SPC10-QCross Ref: 40HY35
7 In Stock
Ships within 2 days via
5.00% off
€335.23 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage | Not Rated |
| Body Material | Stainless Steel |
| Dc Supply Voltage Rating | 10-48V DC |
| Display Qty | 1 |
| Electrical Connection | Micro |
| Electrical Installation Type | Direct Connector |
| Features | 360 Degree Led Indicator, Laser-Engraved Label, Short Circuit Protection |
| Included Indicator Lights | Indicator Lights Included |
| Ip Rating | IP69K |
| Length | 5" |
| Max. Load Amps | 300 mA |
| Max. Operating Temp. | 158°F |
| Max. Sensing Distance | 10 mm |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| No. Of Pins | 4 |
| No. Of Wires | 3 |
| Nominal Sensor Dia. | M30 Threaded |
| Output Circuit | PNP |
| Output Circuit Contact Form | NC |
| Output Circuit Type | PNP |
| Overall Height | 45 mm |
| Product Height | 2" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 2" |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Dia. | 30 mm |
| Series | E57 Series |
| Supply Voltage | 10-48V DC |
| Type | Inductive Proximity Sensor |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 5.08 |
| Country of Origin | US |
Product Variants
| Product | Model | Product Height | Product Width | Sensor Dia. | Electrical Connection | Overall Height | Nominal Sensor Dia. | Electrical Installation Type | Output Circuit Contact Form | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57PS-12SNC2-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 41 mm | M12 Threaded | Prewired Cable | NC | €305.28 | |
 |
E57PS-12SNN2-Q | 5" | 2" | 12 mm | Micro | 42 mm | M12 Threaded | Direct Connector | No | €300.53 | |
|
E57PS-12SNN2-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 42 mm | M12 Threaded | Prewired Cable | No | €321.39 | |
 |
E57PS-12UNC4-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 42 mm | M12 Threaded | Prewired Cable | NC | €291.64 | |
|
E57PS-12SPC2-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 42 mm | M12 Threaded | Prewired Cable | NC | €324.55 | |
|
E57PS-12UNN4-C2 | 2" | 5 1/4" | 12 mm | Bare Wire | 42 mm | M12 Threaded | Prewired Cable | No | €292.97 | |
|
E57PS-12SNC2-Q | 1 3/4" | 1 3/4" | 12 mm | Micro | 42 mm | M12 Threaded | Direct Connector | NC | €301.99 |
