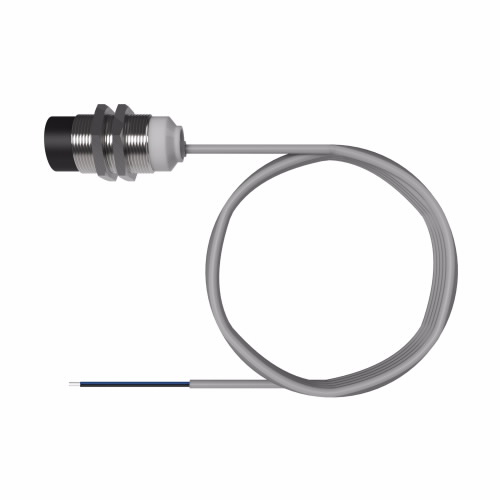

EATON E57P-30UNC22-C2 Cylindrical Proximity Sensor, 10 to 48 VDC, 500 Hz Proximity Sensor, 3 Wire PNP, Metal
Get it by Friday, Feb 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€278.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Ac Supply Voltage Rating | Not Rated |
| Body Material | Stainless Steel |
| Dc Supply Voltage Rating | 10-48V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | 360 Degree Led Indicator, Laser-Engraved Label, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP69K |
| Length | 6 1/4" |
| Load Current - Maximum | 10 mA |
| Nema Enclosure Rating | NEMA 4X, NEMA 6P |
| Nominal Sensor Diameter | M30 Threaded |
| Number Of Wires | 3 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | NPN |
| Output Circuit Contact Form | NC |
| Output Circuit Current - Maximum | 300 mA |
| Output Circuit Type | NPN |
| Overall Height | 71 mm |
| Product Height | 2" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 5 1/4" |
| Sensing Distance - Maximum | 22 mm |
| Sensing Face Shielding | Unshielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 30 mm |
| Series | E57 Series |
| Supply Voltage | 10-48V DC |
| Type | Inductive Proximity Sensor |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 15.88 |
| Ship width (cm) | 13.34 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Number Of Wires | Sensing Method | Number Of Pins | Price | |
|---|---|---|---|---|---|---|---|
 |
E57P-12SPN4-Q | IP69K | 3 | Inductive | 4 | €352.88 | |
 |
E57P-18UPN8-C2 | IP69K | 3 | Inductive | - | €346.19 | |
 |
E57P-12SNC4-C2 | IP69K | 3 | Inductive | - | €321.39 | |
|
E57P-12SNC4-Q | IP69K | 3 | Inductive | 4 | €291.69 | |
|
E57P-12SNC2-C2 | IP69K | 3 | Inductive | - | €274.50 | |
|
E57P-12SNC2-Q | IP69K | 3 | Inductive | 4 | €318.82 | |
|
E57P-12SNN4-C2 | IP69K | 3 | Inductive | - | €294.83 |
