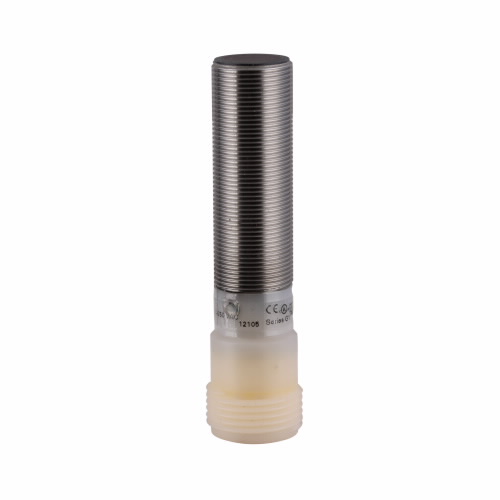

EATON E57MAL18A2B1 Inductive Proximity Sensor, Straight, Shielded, Mini, 3 Pin, Pvc
Get it by Wednesday, Dec 17
€472.73 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% Sensing Range |
| Actuator Function | Shielded |
| Cable Material | PVC |
| Connection | Mini |
| Contact Configuration | 2-wire AC, NO |
| Contact Rating | 250 mA at 250V AC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 20-250V |
| Ip Rating | IP67, IP69K |
| Led Indicator | 360 AA Viewable LED |
| Length | 3.39" |
| Max. Ac Current | 250 mA |
| Max. Operating Temp. | 122°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Number Of Pins | 3 |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Type | Inductive Proximity Sensor |
| Warranty | 1 yr. |
| Weight | 0.5 lbs. |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 1.8 |
| Ship length (cm) | 8.61 |
| Ship width (cm) | 1.8 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Cable Length | Contact Rating | Max. Operating Temp. | Number Of Pins | Diameter | Height | Number Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57LAL12A2EP | IP67 | 8" | 250 mA at 250V AC | 158°F | - | - | - | - | €778.34 | |
|
E57LAL12A2E4 | IP67 | 157.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | €354.39 | |
 |
E57LAL12A2EA | IP67, IP69K | - | 250 mA at 250V AC | 158°F | 3 | - | - | - | €467.94 | |
|
E57LAL12A2E5 | IP67, IP69K | - | 250 mA at 250V AC | 158°F | - | - | - | - | €380.76 | |
 |
E57LAL12A2E | IP67, IP69K | 79.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | €412.56 | |
|
E57LAL12A2E3 | IP67 | 120 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | €347.63 | |
|
E57LAL12A2 | - | - | 250 mA @ 250V | - | - | 0.472 mm | 0.47" | - | €391.68 |
