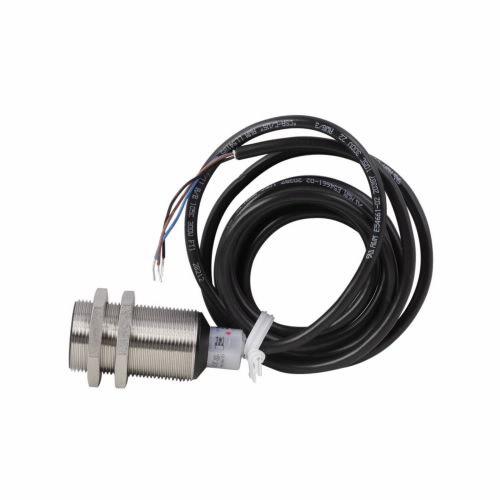

EATON E57LAL30T110E4 Inductive Proximity Sensor, Dist. 15 Mm, 500 mA At 6-30VDC, 13.1 Ft. Cable, Unshielded
Get it by Tuesday, Feb 24
€381.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Proximity Sensor |
| Accuracy | Less Than 3% |
| Actuator Function | Unshielded |
| Cable Length | 164.52 ft. |
| Cable Material | PVC |
| Connection | 13.1 Ft (4 M) Cable |
| Contact Configuration | NO NPN Open Collector |
| Contact Rating | 500 mA at 6-30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 1.18" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4X, NEMA 6P |
| Product Height | 2.73" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 1.18" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 6.93 |
| Ship length (cm) | 3 |
| Ship width (cm) | 3 |
| Country of Origin | US |
Product Variants
| Product | Model | Ip Rating | Cable Length | Contact Rating | Max. Operating Temp. | Number Of Pins | Diameter | Height | Number Of Wires | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
E57RAL18A2EB1 | IP67 | - | 250 mA at 250V AC | 158°F | - | - | - | - | €407.67 | |
 |
E57LBL18A2SA | IP67 | - | 250 mA at 250V AC | 158°F | - | - | - | - | €758.65 | |
 |
E57LAL12A2EP | IP67 | 8" | 250 mA at 250V AC | 158°F | - | - | - | - | €778.34 | |
 |
E57RBL18T110SP | - | - | - | - | - | - | - | - | €453.92 | |
|
E57RBL18T111SP | - | - | - | - | - | - | - | - | €748.77 | |
 |
E57RAL18T111EP | - | - | - | - | - | - | - | - | €500.02 | |
|
E57RBL18T110EP | - | - | - | - | - | - | - | - | €453.92 |
